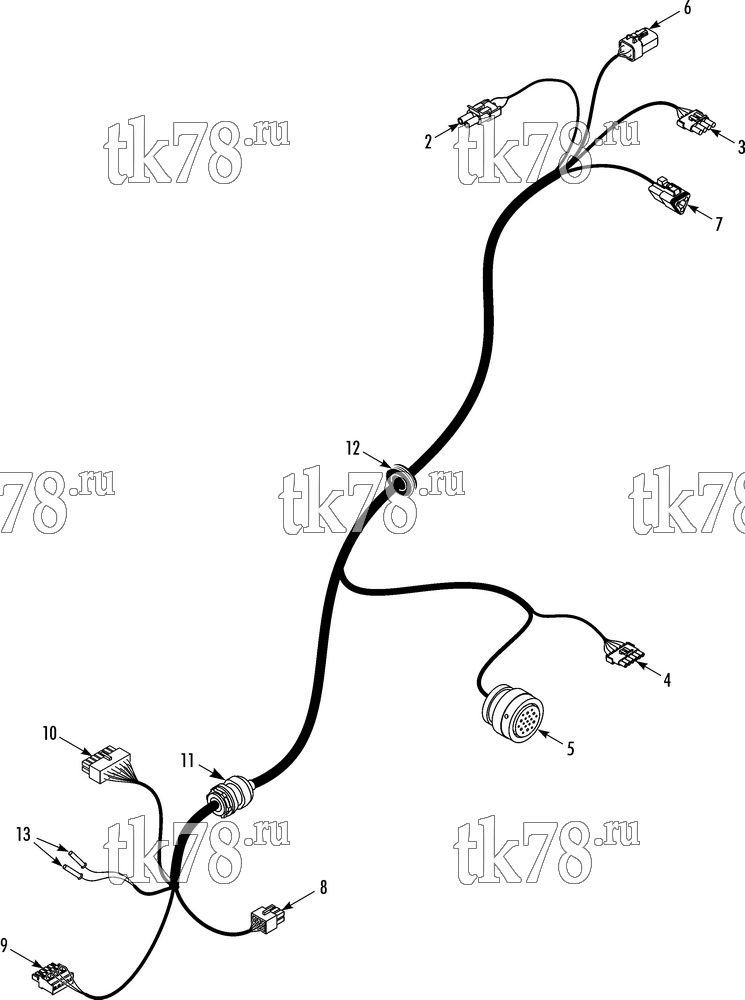

Установкa Thermo King RLFEA1-M1 схема HARNESS INVERTER CONTROL – 264G2
Обновление от: 2/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-912 | HARNESS - inverter control | 1 | |
| 2 | 44-5838 | CONNECTOR - tower (2 pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 3 | 44-7881 | CONNECTOR - tower (4 pin) | 1 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue) | 2 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 4 | 44-7872 | CONNECTOR - tower (6 pin) | 1 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 5 | 42-915 | RECEPTACLE (19-pin) | 1 | |
| 44-9602 | PIN - sealing | 1 | ||
| 44-9587 | SOCKET (18 ga) | A/R | ||
| 44-9836 | SOCKET (12-14 ga) | A/R | ||
| 6 | 42-469 | CONNECTOR (4 pin) | 1 | |
| 42-470 | WEDGE (4 pin) | 1 | ||
| 44-9836 | SOCKET (12-14 ga) | 3 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 7 | 44-9631 | PLUG (3 pin) | 1 | |
| 44-9536 | WEDGE (3 pin) | 1 | ||
| 44-9587 | SOCKET (18 ga) | 3 | ||
| 8 | 41-7605 | CONNECTOR - male (6 pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 3 | ||
| 9 | 41-9536 | CONNECTOR - multi plug (4 pin) | 1 | |
| 44-9888 | TERMINAL - wirepin (18 ga) | 2 | ||
| 10 | 41-661 | CONNECTOR - male (14 pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 3 | ||
| 11 | 41-4188 | CONNECTOR - harness grip | 1 | |
| 41-4189 | WASHER - sealing | 1 | ||
| 55-2636 | NUT | 1 | ||
| 12 | 33-3927 | GROMMET | 1 | |
| 13 | 41-1429 | TERMINAL - special | 2 |
