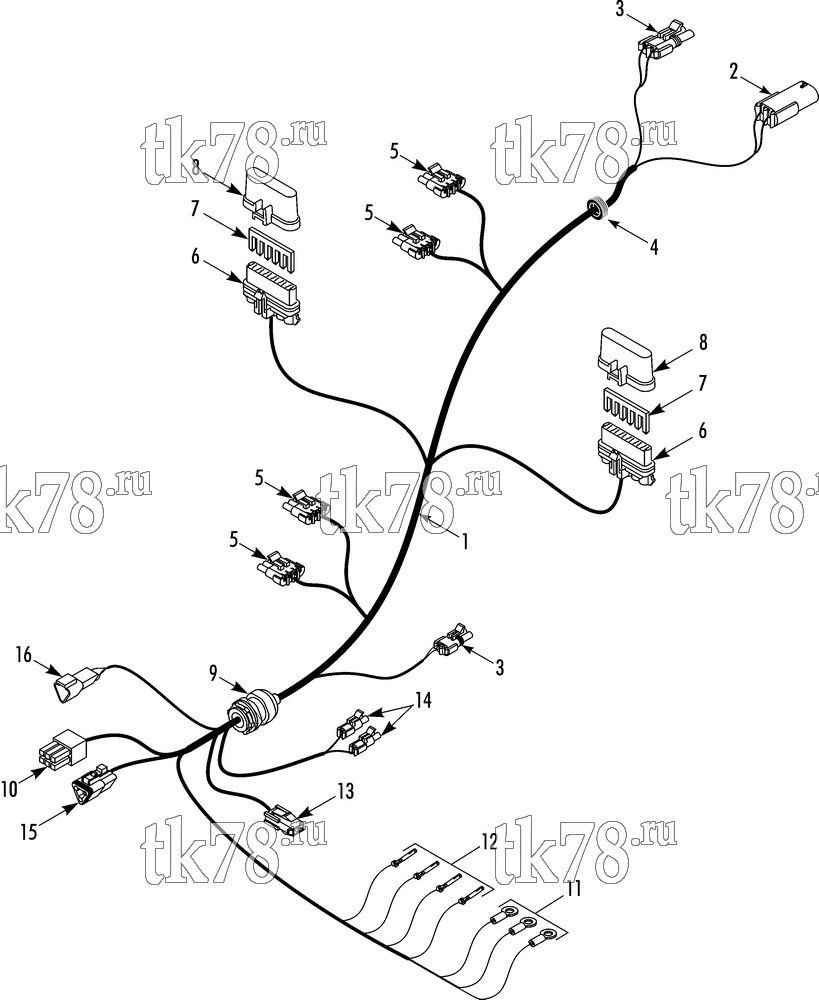

Установкa Thermo King RLFEA1-M1 схема HARNESS CONDENSER FANS – 264G1
Обновление от: 2/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-907 | HARNESS - condenser fans | 1 | |
| 2 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 12 | ||
| 44-8681 | SEAL - cable (red) | 24 | ||
| 4 | 33-2110 | GROMMET | 1 | |
| 5 | 44-7881 | CONNECTOR - tower (4-pin) | 4 | |
| 44-5839 | TERMINAL - female (16-14 ga) | 8 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-6324 | SEAL - cable (blue) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 6 | 41-1789 | CONNECTOR (6-pin) | 2 | |
| 41-4229 | TERMINAL - female (16 ga) | 10 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 44-7812 | PLUG - cavity (green) | 2 | ||
| 41-1790 | LOCK - secondary | 2 | ||
| 7 | 41-1788 | BUSBAR | 2 | |
| 8 | 41-1787 | COVER | 2 | |
| 9 | 41-4188 | CONNECTOR - liquid tite | 1 | |
| 55-2636 | NUT - lock | 1 | ||
| 41-4189 | WASHER - sealing | 1 | ||
| 41-7680 | HEATSHRINK | 1 | ||
| 10 | 41-7605 | RECEPTACLE | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 6 | ||
| 41-7681 | HEATSHRINK (1 1/2 inch) | 1 | ||
| 11 | 41-8842 | TERMINAL - ring (3/8 red, 22-16 ga) | 1 | |
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 2 | ||
| 12 | 41-8841 | TERMINAL - fuse (14-16 awg) | 4 | |
| 13 | 651-146 | PLUG (2 pin) | 1 | |
| 14 | 44-7327 | CONNECTOR - tower (1 pin) | 2 | |
| 15 | 44-9631 | PLUG (3 pin) | 1 | |
| 44-9536 | WEDGE (3 pin) | 1 | ||
| 44-9587 | SOCKET (18 ga) | 3 | ||
| 16 | 44-9544 | RECEPTACLE (3 pin) | 1 | |
| 44-9545 | WEDGE (3 pin) | 1 | ||
| 44-9591 | PIN (18 ga) | 3 |
