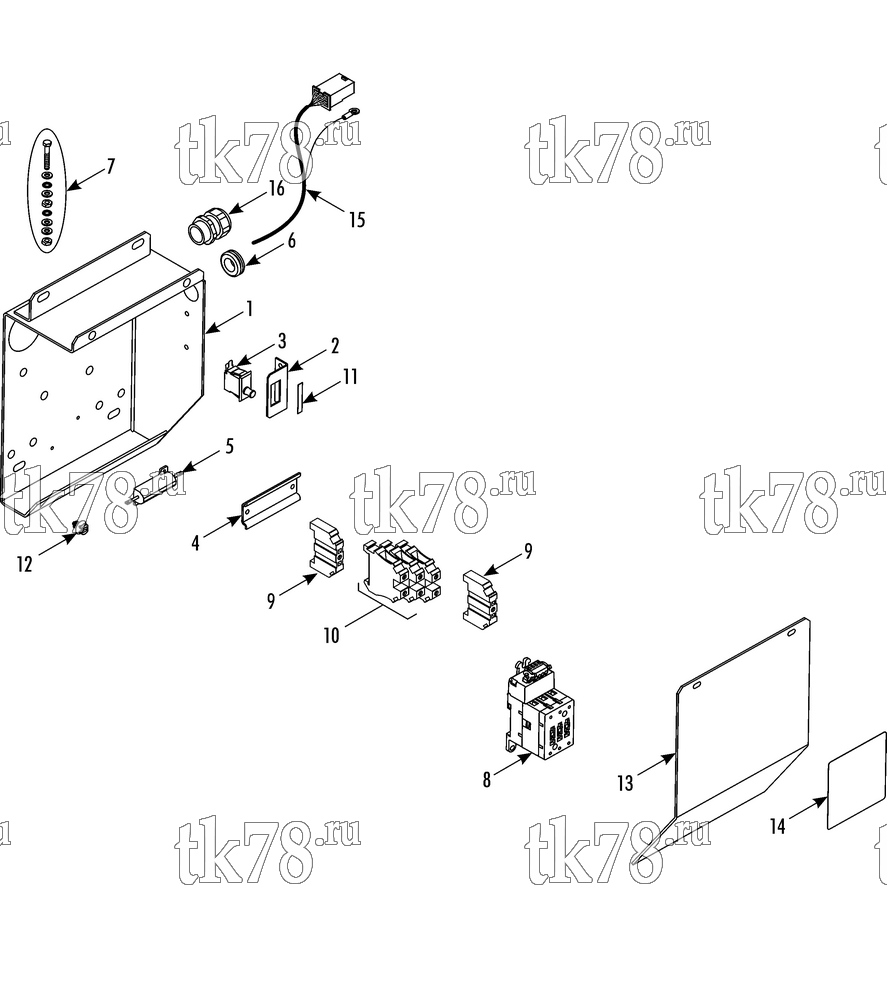

Установкa Thermo King RLFEA1-M1 схема CONTACTOR PANEL - COMPRESSORS – 264F9
Обновление от: 2/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-376 | BOX - contactor | 1 | |
| 55-8798 | INSERT | 4 | ||
| 2 | 92-6599 | BRACKET - switch | 1 | |
| 55-1844 | SCREW - bracket | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 3 | 41-7998 | SWITCH | 1 | |
| 4 | 51-2316 | RAIL - din | 1 | |
| 55-3099 | SCREW - rail | 2 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 5 | 41-7990 | RESISTOR | 1 | |
| 55-2270 | RIVET | 2 | ||
| 6 | 33-367 | GROMMET (.625 id) | 1 | |
| 7 | 55-3031 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 6 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 41-7995 | CONTACTOR (25 amps) | 1 | |
| 55-5974 | SCREW - contactor | 3 | ||
| 55-2202 | LOCKWASHER | 3 | ||
| 9 | 41-7997 | CLAMP - din rail | 2 | |
| 10 | 41-8254 | BLOCK - terminal | 3 | |
| 11 | 92-6600 | MARKSTRIP - Door Switch | 1 | |
| 12 | 92-8400 | MOUNT - bandwrap | 1 | |
| 55-2332 | BANDWRAP (.75 dia, black) | A/R | ||
| 13 | 93-377 | COVER | 1 | |
| 55-2991 | SCREW - cover | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 14 | 92-4092 | LABEL - Danger High Voltage | 1 | |
| 15 | 42-914 | HARNESS - contactor | 1 | |
| 41-9443 | PLUG - in line (6-pin) | 1 | ||
| 651-148 | PIN (18-24 ga) | 4 | ||
| 41-6710 | TERMINAL - lug (#10, 8 awg) | 1 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 44-7245 | TERMINAL - ring (#10 red, 22-16 ga) | 1 | ||
| 44-9888 | TERMINAL - wirepin (18 ga) | 5 | ||
| 44-9891 | TERMINAL - wirepin (10 ga) | 6 | ||
| 41-1429 | TERMINAL - special | 2 | ||
| 16 | 41-4610 | CONNECTOR - harness grip | 1 | |
| 41-4189 | WASHER - sealing | 1 | ||
| 55-2636 | NUT | 1 |
