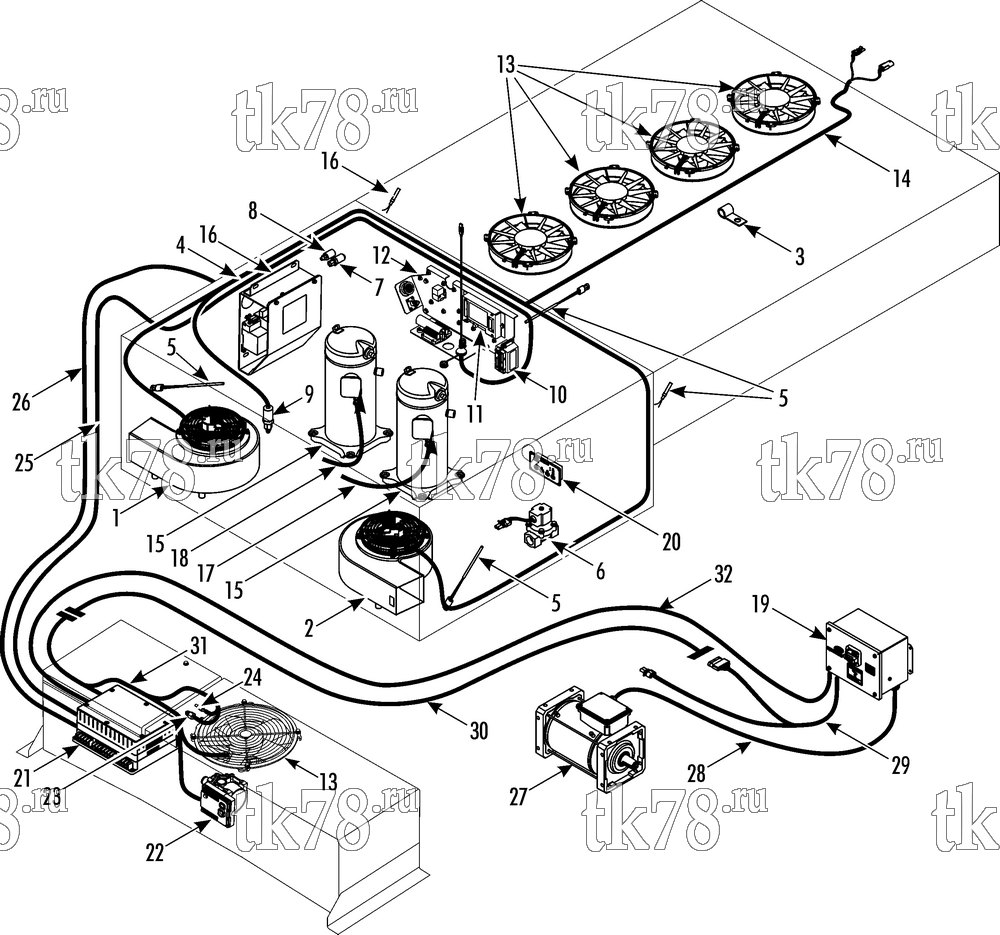

Установкa Thermo King RLFEA1-M1 схема ELECTRICAL COMPONENTS – 264F7
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 51-176 | CLAMP (.250 dia) | 2 | |
| 55-9721 | CLAMP (.875 dia) | 3 | ||
| 4 | 42-906 | HARNESS - main, IntelligAIRE III (see 264F0) | 1 | |
| 5 | 41-4157 | SENSOR - water & temp (see 115D14 for connectors) | 4 | |
| 6 | 41-9427 | VALVE - solenoid, water (see 246B1) | 1 | |
| 7 | 41-4486 | SWITCH - hpco | 1 | |
| 8 | 41-9043 | TRANSDUCER - discharge | 1 | |
| 9 | 41-9044 | TRANSDUCER - suction | 1 | |
| 10 | 41-9354 | MODULE - floor heat IntelligAIRE III (optional) | 1 | |
| 11 | 41-9353 | MODULE - main, IntelligAIRE III (see 264F8) | 1 | |
| 12 | NSS | PANEL - control assembly (see 264F8) | 1 | |
| 13 | 78-1460 | FAN - condenser (24V, see 249F7) | 5 | |
| 14 | 42-907 | HARNESS - condenser fans (see 264G1) | 1 | |
| 15 | 102-1077 | COMPRESSOR - scroll (see 264F6) | 2 | |
| 16 | NSS | PANEL - contactor, compressor (see 264F9) | 1 | |
| 17 | 42-905 | HARNESS - compressor (motor #1, see 264F6) | 1 | |
| 18 | 42-904 | HARNESS - compressor (motor #2, see 264F6) | 1 | |
| 19 | NSS | BOX - disconnect (see 262G2) | 1 | |
| 20 | 45-2339 | MODULE - display IntelligAIRE III (see 244B9) | 1 | |
| 21 | 45-2490 | INVERTER (see 264G5) | 1 | |
| 22 | 13-1235 | PUMP - coolant (see 264G5) | 1 | |
| 23 | 41-2842 | SENSOR - level, coolant (see 264G5) | 1 | |
| 24 | 41-3345 | SENSOR - temperature, coolant (see 264G5) | 1 | |
| 25 | 42-908 | CABLE - USB | 1 | |
| 26 | 42-909 | HARNESS - compressor contactor | 1 | |
| 27 | 104-795 | ALTERNATOR (see 264G3) | 1 | |
| 28 | 42-910 | HARNESS - alternator to disconnect box | 1 | |
| 29 | 42-467 | HARNESS - disconnect box | 1 | |
| 30 | 42-911 | HARNESS - inverter control to disconnect box | 1 | |
| 31 | 42-912 | HARNESS - inverter control | 1 | |
| 32 | 42-913 | HARNESS - inverter to disconnect box | 1 |
