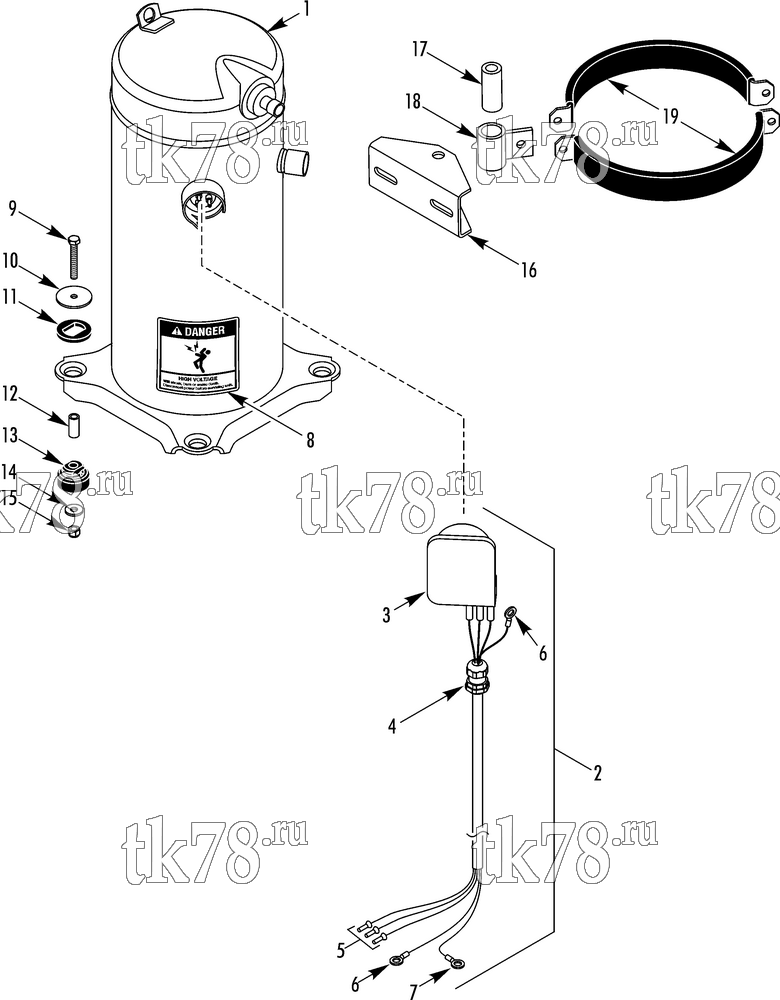

Установкa Thermo King RLFEA1-M1 схема SCROLL COMPRESSOR – 264F6
Обновление от: 2/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1077 | COMPRESSOR - scroll | 2 | |
| 2 | 42-905 | HARNESS - compressor (motor #1) | 1 | |
| 42-904 | HARNESS - compressor (motor #2) | 1 | ||
| 3 | 41-8021 | CONNECTOR (3 conductor) | 1 | |
| 4 | 41-8022 | CONNECTOR - harness grip | 1 | |
| 91-9780 | CONNECTOR - straight, female | 1 | ||
| 33-3952 | BUSHING - sealing | 1 | ||
| 5 | 44-9891 | TERMINAL - wire pin (10 ga) | 3 | |
| 6 | 44-2792 | TERMINAL - ring (#10 yellow, 12-10 ga) | 2 | |
| 7 | 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 1 | |
| 8 | 92-4092 | NAMEPLATE - Danger, High Voltage | 2 | |
| 9 | 55-3565 | SCREW - compressor | 8 | |
| 10 | 51-1818 | WASHER - special | 8 | |
| 11 | 51-1817 | MOUNT - rubber | 8 | |
| 12 | 51-1815 | SPACER | 8 | |
| 13 | 33-4480 | GROMMET | 8 | |
| 14 | 55-4184 | WASHER | 8 | |
| 15 | 55-4954 | NUT - stop | 8 | |
| 16 | 93-375 | BRACKET - compressor | 2 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 17 | 51-2065 | TUBE - rubber | 2 | |
| 18 | 51-2066 | TUBE - support | 2 | |
| 55-2916 | SCREW - support | 2 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 2 | ||
| 19 | 51-2067 | CLAMP - compressor | 4 | |
| 55-2977 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 |
