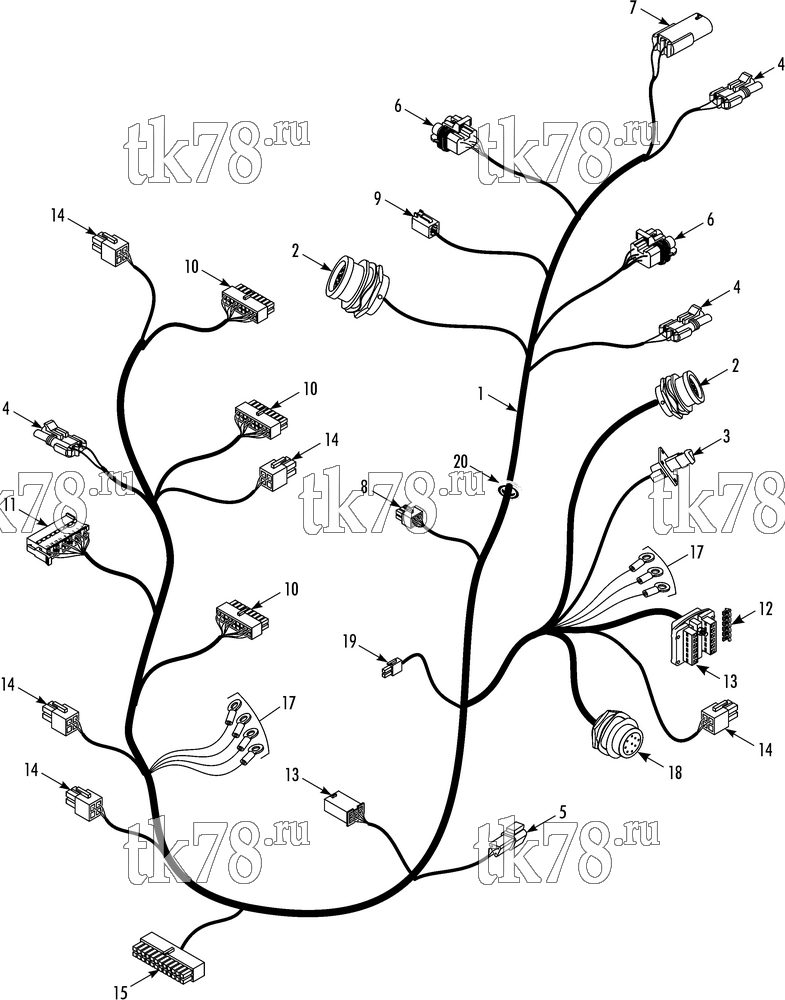

Установкa Thermo King RLFEA1-M1 схема HARNESS MAIN - IntelligAIRE III – 264F0
Обновление от: 2/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-906 | HARNESS - main, IntelligAIRE III | 1 | |
| 2 | 41-9437 | RECEPTACLE (19-pin) | 2 | |
| 41-9438 | LOCKWASHER | 2 | ||
| 41-9439 | NUT | 2 | ||
| 44-9591 | TERMINAL - pin (18 ga) | A/R | ||
| 44-6851 | PIN (12-14 ga) | A/R | ||
| 44-9602 | PIN - sealing | A/R | ||
| 3 | 41-7082 | RECEPTACLE (3-pin, w/square flange) | 1 | |
| 44-9545 | WEDGE | 1 | ||
| 41-8832 | PIN (gold, 18 ga) | 2 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 5 | 44-9544 | RECEPTACLE (3-pin) | 1 | |
| 44-9545 | WEDGE | 1 | ||
| 44-9591 | TERMINAL - pin (18 ga) | 3 | ||
| 41-7681 | HEATSHRINK (1-1/2 in long) | A/R | ||
| 6 | 41-9440 | CONNECTOR (7-pin) | 2 | |
| 41-9441 | LOCK - secondary | 2 | ||
| 44-9689 | TERMINAL - female (10 ga) | 4 | ||
| 41-9442 | TERMINAL - female (.5 - 1.0 mm) | 6 | ||
| 33-2418 | SEAL - cable (orange, 10 ga) | 4 | ||
| 41-6576 | SEAL - cable (dark red, 18 ga) | 6 | ||
| 41-8983 | PLUG - cavity | 4 | ||
| 7 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 8 | 41-7605 | CONNECTOR (6-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 6 | ||
| 9 | 44-8915 | RECEPTACLE (4-pin) | 1 | |
| 44-8918 | WEDGE | 1 | ||
| 44-9591 | TERMINAL - pin (18 ga) | 3 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 10 | 41-650 | CONNECTOR - male (18-pin) | 3 | |
| 41-1807 | SOCKET (18-24 ga) | A/R | ||
| 11 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (.5 mm) | 11 | ||
| 12 | 41-6722 | HOLDER - fuse | 1 | |
| 13 | 41-6723 | LOCK - fuse holder | 2 | |
| 41-8841 | TERMINAL - fuse (14-16 awg) | 4 | ||
| 44-9689 | TERMINAL - female (10 ga) | 4 | ||
| 33-2418 | SEAL (10 ga) | 4 | ||
| 14 | 41-654 | CONNECTOR - male (4-pin) | 5 | |
| 41-1807 | SOCKET (18-24 ga) | 20 | ||
| 15 | 41-656 | CONNECTOR - male (24-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 14 | ||
| 16 | 41-9443 | PLUG - in line (6-pin) | 1 | |
| 651-148 | TERMINAL - pin (18-24 ga) | 6 | ||
| 17 | 41-6709 | TERMINAL - ring (3/8 yellow, 8 awg) | 1 | |
| 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 2 | ||
| 18 | 41-9446 | RECEPTACLE (9 pin) | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 19 | 41-1507 | CONNECTOR (2-pin) | 2 | |
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 20 | 33-1283 | GROMMET (15/16 id) | 1 |
