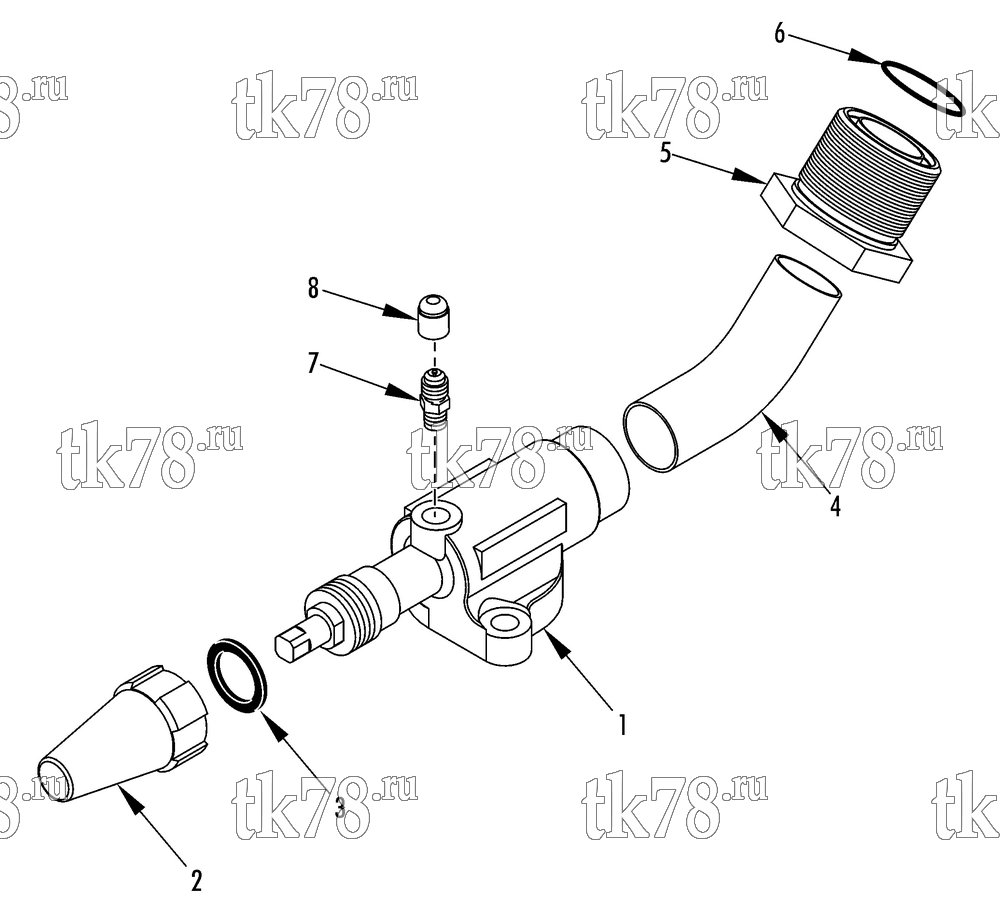

Установкa Thermo King RLF1-M16 схема VALVE ASSEMBLY - SUCTION – 248G7
Обновление от: 11/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-5343 | VALVE - suction (assembly) | 1 | ||
| 1 | 66-5492 | VALVE - suction | 1 | |
| 2 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 3 | 33-350 | GASKET - cap | 1 | |
| 4 | NSS | TUBE - suction valve | 1 | |
| 5 | 55-7553 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 6 | 33-920 | O-RING | 1 | |
| 7 | 11-2886 | VALVE - assembly | 1 | |
| 55-7213 | BODY - brass | 1 | ||
| 11-7777 | VALVE (Schrader) | 1 | ||
| 8 | 55-5672 | CAP - valve | 1 |
