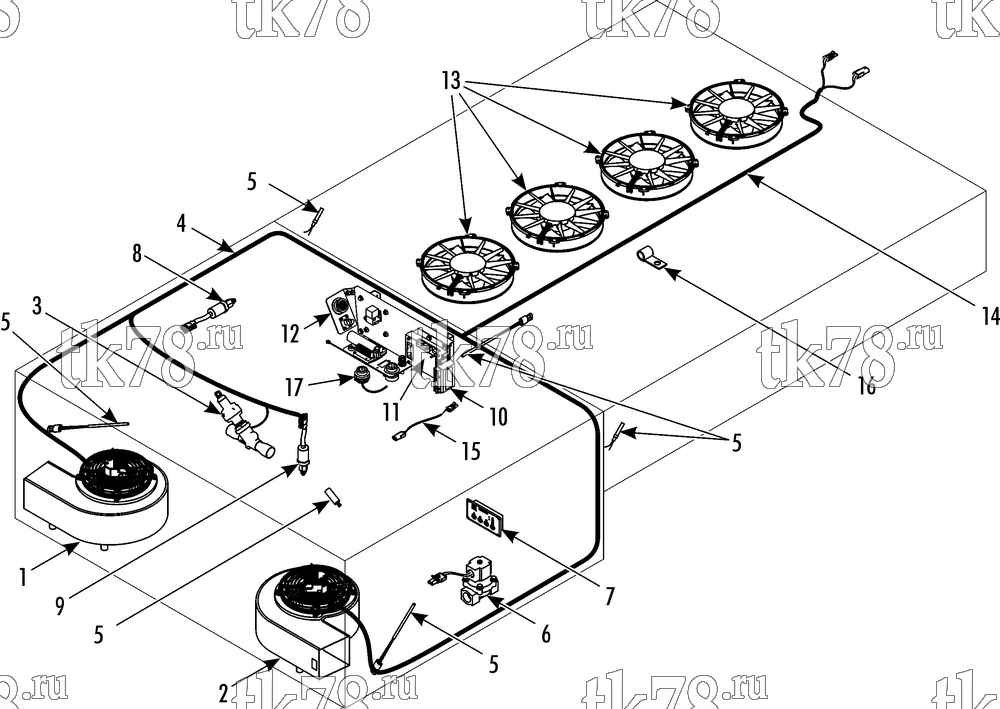

Установкa Thermo King RLF1-M13 схема ELECTRICAL COMPONENTS – 246B3
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER (see 246B4) | 1 | |
| 2 | 78-1739 | BLOWER (see 246B4) | 1 | |
| 3 | 40-1181 | KIT - epr valve (complete w/ cable) | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin, see 115D14 for connectors) | 1 | ||
| 40-1072 | KIT - repair, epr valve | 1 | ||
| 4 | 41-9430 | HARNESS - main, IntelligAIRE III (see 244B5) | 1 | |
| 5 | 41-4157 | SENSOR - water/temp (see 115D14 for connectors) | 5 | |
| 6 | 41-9427 | VALVE - solenoid, water (see 246B1) | 1 | |
| 7 | 45-2339 | MODULE - display IntelligAIRE III (see 244B9) | 1 | |
| 8 | 41-9043 | TRANSDUCER - discharge | 1 | |
| 9 | 41-9044 | TRANSDUCER - suction | 1 | |
| 10 | 41-9354 | MODULE - floor heat IntelligAIRE III (optional) | 1 | |
| 11 | 41-9353 | MODULE - main, IntelligAIRE III (see 244B7) | 1 | |
| 12 | NSS | PANEL - control assembly (see 244B7) | 1 | |
| 13 | 78-1460 | FAN - condenser (24V, see 244B3) | 4 | |
| 14 | 41-9434 | HARNESS - condenser fans (see 244B6) | 1 | |
| 15 | 41-9436 | HARNESS - return air sensor (see 115D14 for connectors) | 1 | |
| 16 | 55-9298 | CLAMP (.187 dia) | 1 | |
| 51-176 | CLAMP (.250 dia) | 2 | ||
| 51-178 | CLAMP (.625 dia) | 3 | ||
| 55-9721 | CLAMP (.875 dia) | 9 | ||
| 17 | 41-9431 | HARNESS - diagnostic (see 244B8) | 1 |
