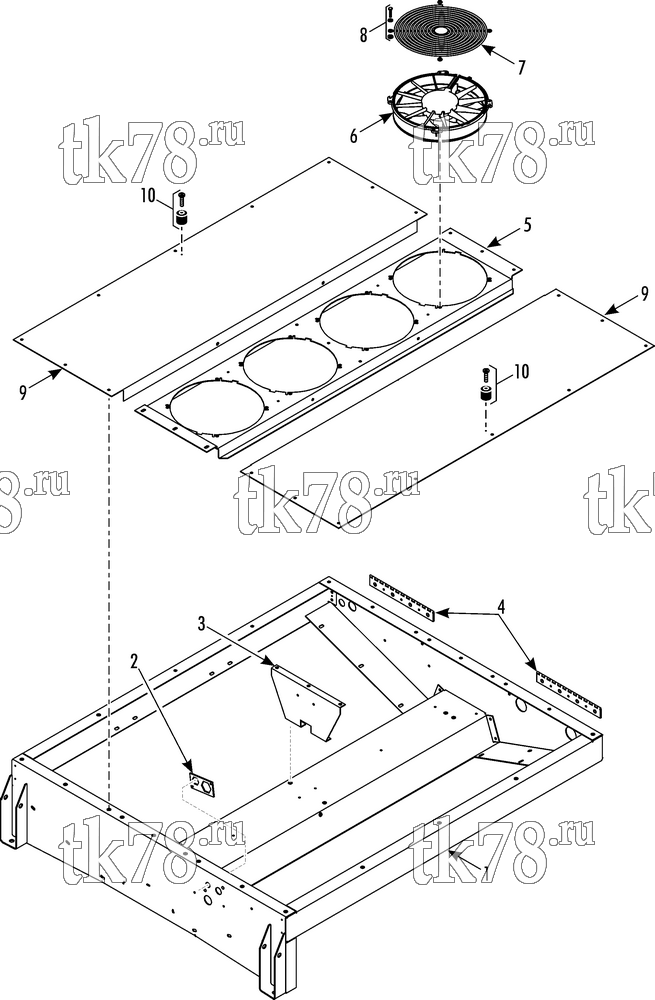

Установкa Thermo King RLF1-M11 схема CONDENSER STRUCTURAL & FANS – 244B3
Обновление от: 12/8/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8506 | FRAME - condenser | 1 | |
| 55-8711 | INSERT | 27 | ||
| 2 | 92-8403 | PLATE - anti rotation (fittings) | 1 | |
| 55-3101 | RIVET | 2 | ||
| 3 | 92-8404 | BRACKET - condenser orifice | 1 | |
| 55-8711 | INSERT | 3 | ||
| 4 | 91-9730 | HINGE - evaporator cover (see 244B1) | 2 | |
| 5 | 98-8507 | PANEL - center condenser fans | 1 | |
| 55-2957 | SCREW - panel | 13 | ||
| 55-1800 | LOCKWASHER | 13 | ||
| 55-2086 | FLATWASHER | 13 | ||
| 55-8711 | INSERT | 16 | ||
| 92-4932 | PROTECTOR - edge | A/R | ||
| 6 | 78-1460 | FAN - condenser (24V) | 4 | |
| 7 | 98-5425 | GUARD - fan | 4 | |
| 8 | 55-2979 | SCREW - fan and guard | 16 | |
| 55-4727 | WASHER - special | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 9 | 98-8508 | COVER - condenser | 2 | |
| 55-2957 | SCREW - cover | 18 | ||
| 55-1800 | LOCKWASHER | 18 | ||
| 55-2086 | FLATWASHER | 18 | ||
| 55-8711 | INSERT | 4 | ||
| 10 | 33-2633 | GROMMET - bumper | 2 | |
| 55-2190 | SCREW - bumper | 2 |
