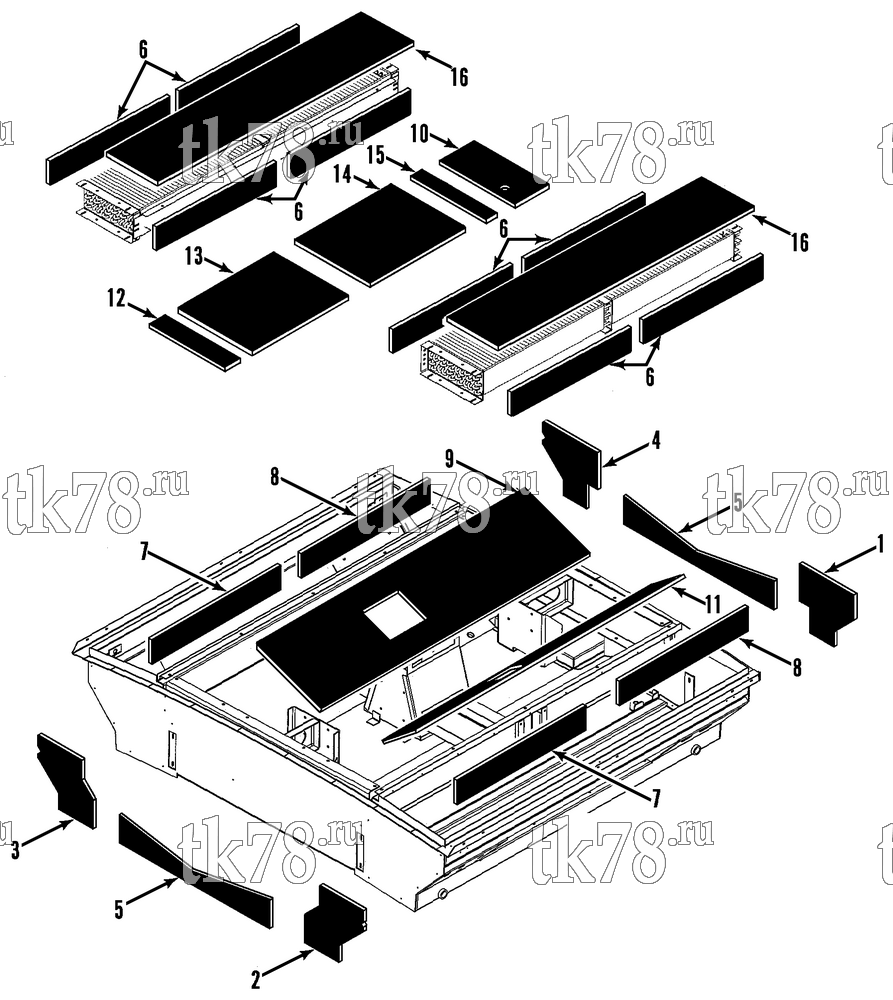

Установкa Thermo King RH4-M2 схема INSULATION – 144A11
Обновление от: 4/7/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8301 | INSULATION - bulkhead (rear, roadside) | 1 | |
| 2 | 91-8302 | INSULATION - bulkhead (front, roadside) | 1 | |
| 3 | 91-8303 | INSULATION - bulkhead (front, curbside) | 1 | |
| 4 | 91-8304 | INSULATION - bulkhead (rear, curbside) | 1 | |
| 5 | 91-8306 | INSULATION - bulkhead | 2 | |
| 6 | 91-8381 | INSULATION - blockoff | 8 | |
| 7 | 91-8386 | INSULATION - blockoff (condenser coil) | 2 | |
| 8 | 91-8385 | INSULATION - blockoff (condenser coil) | 2 | |
| 9 | 91-8384 | INSULATION (bottom, curbside) | 1 | |
| 10 | 91-8382 | INSULATION - condenser bulkhead | 1 | |
| 91-8887 | INSULATION - condenser bulkhead (RH4) | 1 | ||
| 11 | 91-8383 | INSULATION (bottom, roadside) | 1 | |
| 12 | 91-8312 | INSULATION (bottom, front) | 1 | |
| 13 | 91-8313 | INSULATION (center) | 1 | |
| 14 | 91-8314 | INSULATION (center) | 1 | |
| 15 | 91-8315 | INSULATION (bottom, rear) | 1 | |
| 16 | 91-8330 | INSULATION - evaporator door | 2 |
