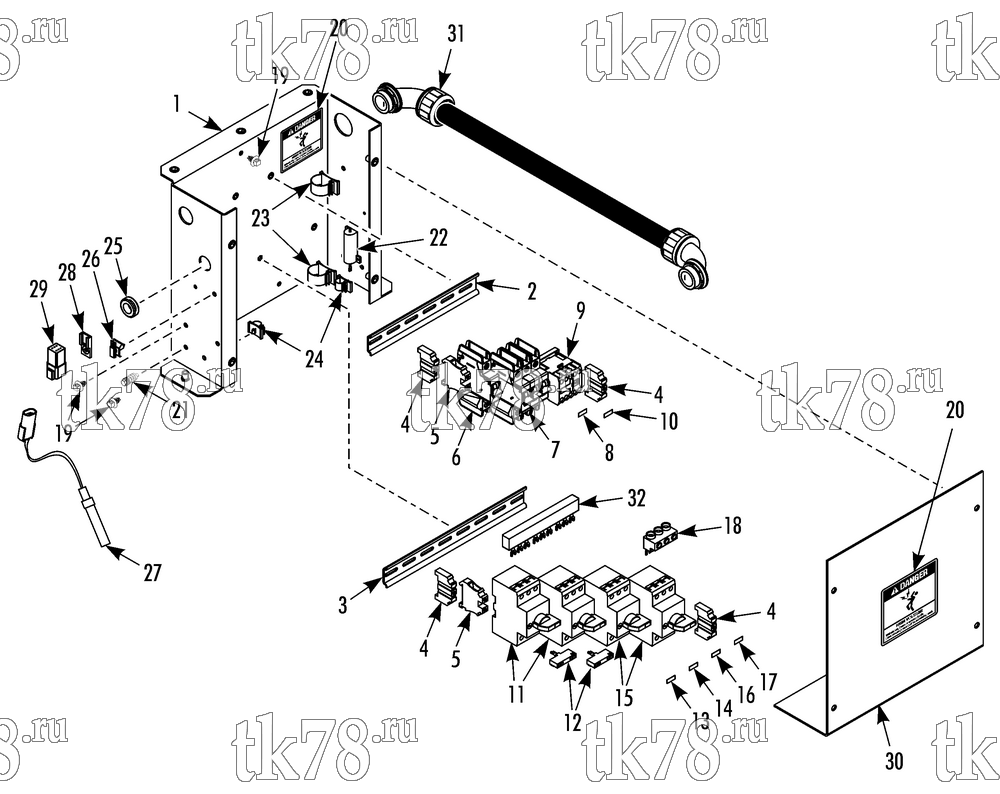

Установкa Thermo King REH-M6 схема CIRCUIT BREAKER BOX – 248C8
Обновление от: 10/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8622 | PANEL - circuit breaker | 1 | |
| 55-2957 | SCREW - panel | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 2 | 41-8252 | RAIL - din (215 mm long) | 1 | |
| 3 | 41-8249 | RAIL - din (279 mm long) | 1 | |
| 55-3099 | SCREW - rail | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-8798 | INSERT | 4 | ||
| 4 | 41-7997 | CLAMP - rail | 4 | |
| 5 | 41-7996 | BLOCK - terminal (ground) | 2 | |
| 6 | 41-9565 | SHUNT - trip | 1 | |
| 7 | 41-9566 | BREAKER - 3 pole (25 amp) | 1 | |
| 8 | 92-6987 | MARKSTRIP - BMH | 1 | |
| 9 | 41-8245 | CONTACTOR - auxiliary | 1 | |
| 10 | 92-6992 | MARKSTRIP - K1 | 1 | |
| 11 | 41-9567 | BREAKER - circuit (10 amp) | 2 | |
| 12 | 41-7992 | CONTACTOR - auxiliary | 2 | |
| 13 | 92-6991 | MARKSTRIP - BEF | 1 | |
| 14 | 92-6990 | MARKSTRIP - BCF | 1 | |
| 15 | 41-8000 | BREAKER - circuit (25 amp) | 2 | |
| 16 | 92-6598 | MARKSTRIP - BCP2 | 1 | |
| 17 | 92-6597 | MARKSTRIP - BCP1 | 1 | |
| 18 | 41-7994 | TERMINAL - input | 1 | |
| 19 | 51-1768 | MOUNT - bandwrap | 5 | |
| 20 | 92-4092 | NAMEPLATE - Danger High Voltage | 2 | |
| 21 | 55-3000 | SCREW - ground | 1 | |
| 22 | 41-8239 | RESISTOR | 1 | |
| 23 | 99-9648 | CLIP - wire (.750 dia) | 2 | |
| 24 | 99-9646 | CLIP - wire (.375 dia) | 2 | |
| 25 | 33-367 | GROMMET (.625 id) | 1 | |
| 26 | 55-9704 | CLIP - self locking | 1 | |
| 27 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 1 | |
| 28 | 44-9906 | TAB - mounting | 1 | |
| 55-3010 | RIVET - tab | 2 | ||
| 29 | 41-9568 | HARNESS - circuit breaker panel | 1 | |
| 44-8914 | RECEPTACLE (6-pin, see 112D19) | 1 | ||
| 44-8917 | WEDGE (6-pin, see 112D19) | 1 | ||
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 44-9866 | TERMINAL - wirepin (14 ga) | 1 | ||
| 44-9888 | TERMINAL - wirepin (18 ga) | 5 | ||
| 30 | 92-8623 | COVER - box | 1 | |
| 55-2957 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 31 | 41-9563 | HARNESS - breakers to contactors 41-9568 | 1 | |
| 41-6675 | CONNECTOR - harness grip | 2 | ||
| 44-9891 | TERMINAL - wirepin (10 ga) | 6 | ||
| 44-9890 | TERMINAL - wirepin (12 ga) | 12 | ||
| 44-9889 | TERMINAL - wirepin (16 ga) | 9 | ||
| 41-9022 | TERMINAL - fork (#8 blue, 16-14 ga) | 3 | ||
| 44-2793 | TERMINAL - ring (1/4 yellow, 10-12 ga) | 2 | ||
| 32 | 41-9620 | BUSBAR (3 ph) | 1 |
