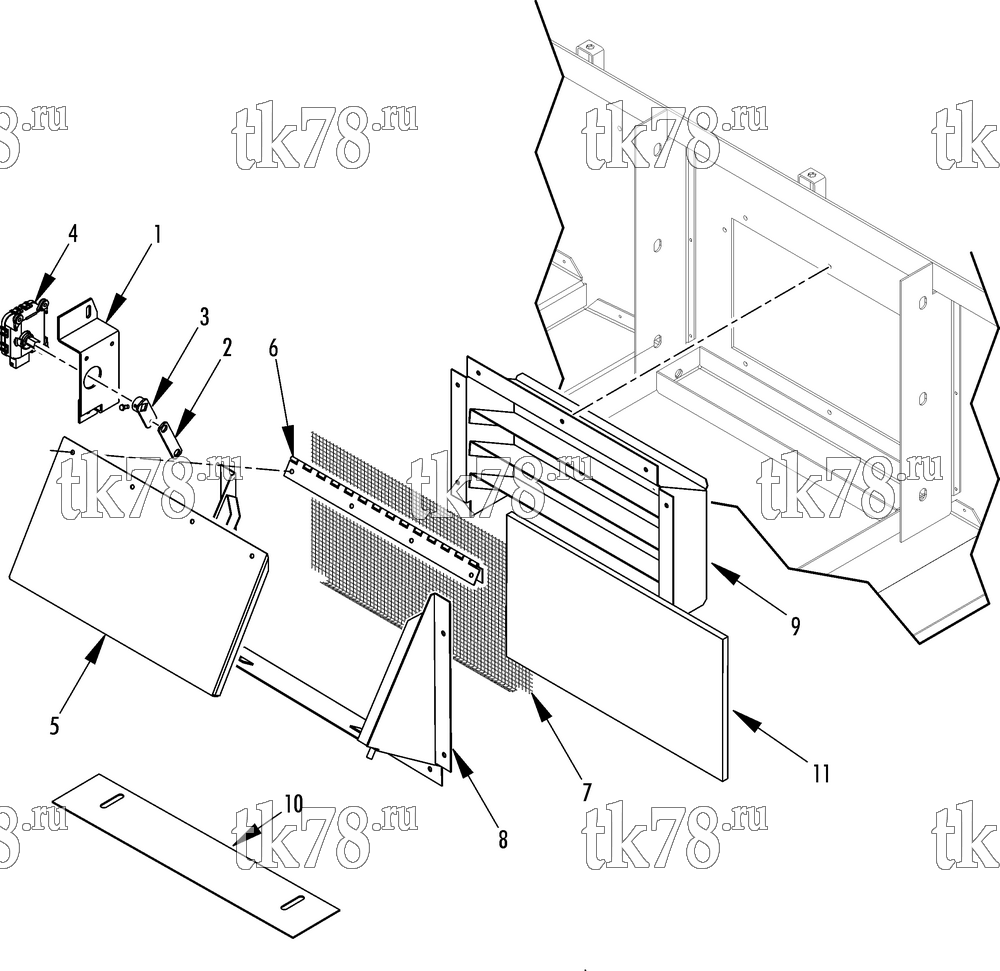

Установкa Thermo King REH-M6 схема FRESH AIR EXCHANGE – 248C5
Обновление от: 10/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-4075 | BRACKET - actuator | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-4414 | WASHER - special | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 2 | 92-4076 | PLATE - connecting arm | 1 | |
| 55-5416 | SCREW - plate | 1 | ||
| 55-6157 | WASHER - special | 1 | ||
| 55-3013 | FLATWASHER | 5 | ||
| 55-5754 | NUT | 1 | ||
| 3 | 91-9720 | PLATE - actuator | 1 | |
| 55-5665 | SCREW - plate to actuator | 1 | ||
| 55-4523 | SCREW - plate to plate | 1 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 1 | ||
| 4 | 41-3255 | ACTUATOR | 1 | |
| 55-5665 | SCREW - actuator | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-4223 | NUT | 3 | ||
| 5 | 92-8636 | DAMPER - fresh air | 1 | |
| 33-4720 | INSULATION - damper | 1 | ||
| 6 | 92-8637 | HINGE - damper cover | 1 | |
| 55-3027 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 7 | 92-8638 | SCREEN - fresh air | 1 | |
| 8 | 92-8639 | BRACKET - pan | 1 | |
| 55-2156 | NUT - wing | 2 | ||
| 9 | 92-8640 | HOOD - fresh air | 1 | |
| 55-3843 | SCREW - hood | 10 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-4560 | NUT | 10 | ||
| 10 | 92-8641 | PLATE - filter | 1 | |
| 11 | 92-8642 | FILTER - fresh air | 1 |
