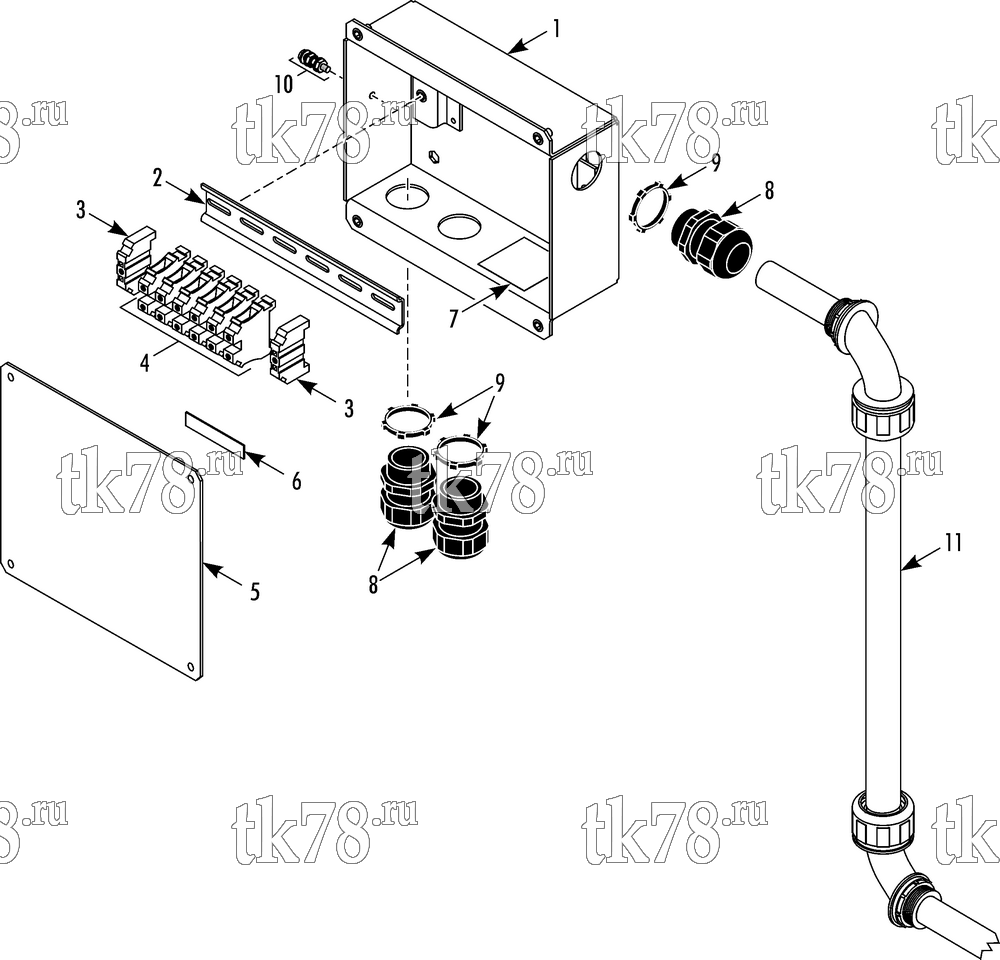

Установкa Thermo King REH-M6 схема JUNCTION BOX, MAIN – 248C2
Обновление от: 10/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8626 | BOX - junction | 1 | |
| 55-2957 | SCREW - box | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-8711 | INSERT - threaded | 4 | ||
| 2 | 41-8252 | RAIL - din | 1 | |
| 55-3099 | SCREW - rail | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-8752 | INSERT - threaded | 2 | ||
| 3 | 41-7997 | CLAMP - din rail | 2 | |
| 4 | 41-8254 | BLOCK - terminal | 6 | |
| 5 | 92-7005 | COVER - box | 1 | |
| 55-3027 | SCREW - cover | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-8798 | INSERT - threaded | 4 | ||
| 6 | 92-8628 | NAMEPLATE - L1 L2 L3 L1R L2R L3R | 1 | |
| 7 | 92-8629 | NAMEPLATE - Danger High Voltage | 1 | |
| 8 | 41-4610 | CONNECTOR - harness grip | 3 | |
| 9 | 55-2636 | NUT | 3 | |
| 10 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 2 | ||
| 11 | 41-9564 | HARNESS - junction box to breaker box | 1 | |
| 41-8238 | CONNECTOR - harness grip | 2 | ||
| 41-4906 | TERMINAL - wirepin (8 ga) | 6 | ||
| 44-9889 | TERMINAL - wirepin (16 ga) | 3 | ||
| 41-438 | TERMINAL - fork (#6 blue, 16-14 ga) | 3 | ||
| 44-2792 | TERMINAL - ring (1/4 yellow, 10-12 ga) | 2 |
