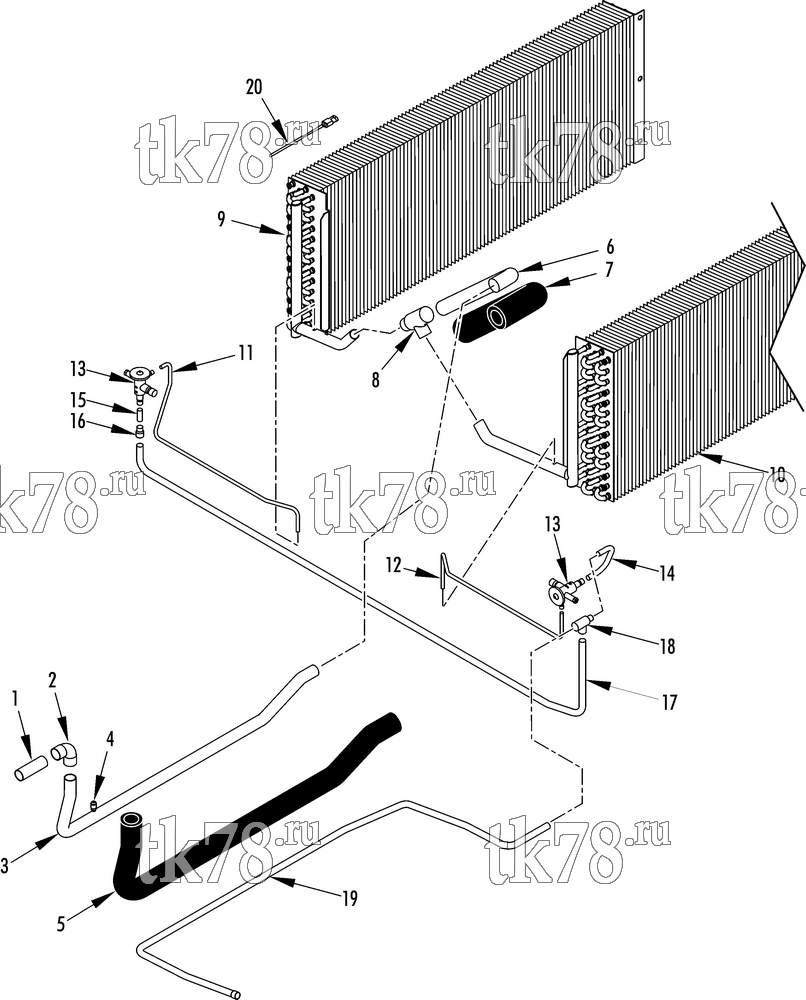

Установкa Thermo King REH-M6 схема EVAPORATOR REFRIGERATION – 248B2
Обновление от: 9/17/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-7552 | TUBE - suction (3.30 in long) | 1 | |
| 2 | 55-3682 | ELBOW | 1 | |
| 3 | 61-5290 | TUBE - suction, elbow to tube | 1 | |
| 66-9842 | VALVE | 1 | ||
| 4 | 41-9044 | TRANSDUCER - suction | 1 | |
| 5 | 92-4043 | INSULATION - tube (1-3/8 od) | A/R | |
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 6 | 61-4326 | TUBE - suction, tube to tee | 1 | |
| 7 | 92-4042 | INSULATION - tube (1-1/8 od) | A/R | |
| 55-2331 | BANDWRAP | A/R | ||
| 8 | 55-8968 | TEE (1-1/8 x 7/8 x 7/8) | 1 | |
| 9 | 67-2526 | COIL - evaporator (curbside) | 1 | |
| 10 | 67-2527 | COIL - evaporator (roadside) | 1 | |
| 11 | 61-4327 | TUBE - equalizer | 1 | |
| 12 | 61-4329 | TUBE - equalizer | 1 | |
| 13 | 66-9840 | VALVE - expansion | 2 | |
| 14 | 61-2797 | TUBE - reducer to expansion valve | 1 | |
| 15 | 66-8508 | TUBE - straight (1.0 in lg) | 1 | |
| 16 | 55-2865 | COUPLING | 1 | |
| 17 | 61-5291 | TUBE - liquid (tee to reducer) | 1 | |
| 18 | 55-9240 | TEE (5/8 x 3/8 x 1/2) | 1 | |
| 19 | 61-5292 | TUBE - liquid | 1 | |
| 20 | 41-4157 | SENSOR - temperature | 1 |
