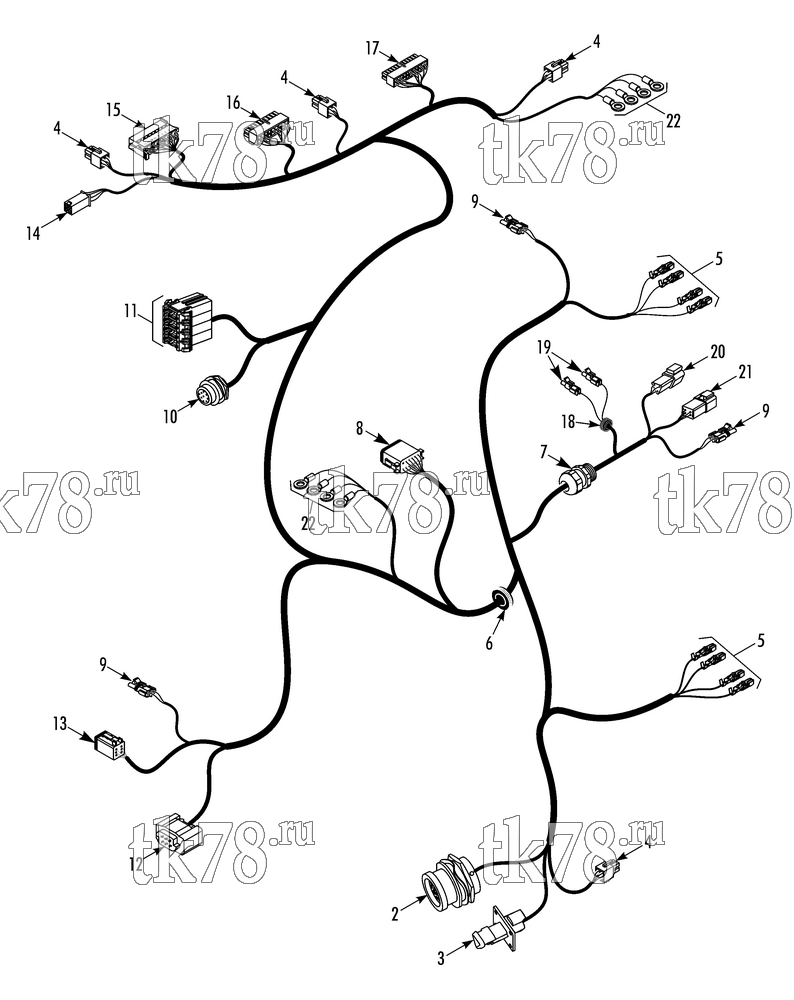

Установкa Thermo King REH-M6 схема HARNESS - MAIN IntelligAIRE III – 248B0
Обновление от: 10/4/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9558 | HARNESS - main IntelligAIRE III | 1 | |
| 2 | 41-9437 | RECEPTACLE (19-pin) | 1 | |
| 41-9439 | NUT - receptacle | 1 | ||
| 41-9438 | LOCKWASHER | 1 | ||
| 44-9591 | PIN (18 ga) | 11 | ||
| 44-9602 | PIN - sealing | 8 | ||
| 3 | 41-7082 | RECEPTACLE - square flange (3-pin, see 112D9) | 1 | |
| 44-9545 | WEDGE (3-pin, see 112D9) | 1 | ||
| 44-9340 | PIN - gold (18 ga) | 2 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 4 | 41-654 | CONNECTOR - male (4-pin) | 4 | |
| 41-1807 | SOCKET (10 amp, 18-24 ga) | 16 | ||
| 5 | 44-5066 | TERMINAL - fingrip (18-14 ga) | 8 | |
| 6 | 33-367 | GROMMET (.625 id) | 1 | |
| 7 | 41-4817 | CONNECTOR - harness grip | 1 | |
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | NUT | 1 | ||
| 8 | 44-9600 | PLUG (12-pin, see 112D9) | 1 | |
| 44-9601 | WEDGE(12-pin, see 112D9) | 1 | ||
| 44-9587 | SOCKET (18 ga) | 10 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 9 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 3 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 6 | ||
| 44-8681 | SEAL - cable (red) | 6 | ||
| 10 | 41-9446 | RECEPTACLE (9-pin) | 1 | |
| 44-9591 | PIN (18 ga) | 6 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 41-9448 | NUT | 1 | ||
| 11 | 41-2973 | FUSEHOLDER | 4 | |
| 41-3327 | TERMINAL (14 awg) | 8 | ||
| 12 | 41-3288 | CONNECTOR - black (6-pin) | 1 | |
| 41-3290 | TERMINAL - female | 5 | ||
| 41-3289 | SEAL - green | 5 | ||
| 41-9226 | PLUG - sealing | 1 | ||
| 13 | 44-8920 | CONNECTOR (6-pin, see 112D9) | 1 | |
| 44-8921 | WEDGE (6-pin, see 112D9) | 1 | ||
| 44-9587 | SOCKET (18 ga) | 6 | ||
| 14 | 41-8221 | CONNECTOR - female (4-pin) | 1 | |
| 15 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (18 ga) | 12 | ||
| 16 | 41-650 | CONNECTOR - male (18-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 9 | ||
| 17 | 41-656 | CONNECTOR - male (24-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 11 | ||
| 18 | 33-1809 | GROMMET (.50 id) | 1 | |
| 19 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 20 | 44-9544 | RECEPTACLE (3-pin, see 112D9) | 1 | |
| 44-9545 | WEDGE (3-pin, see 112D9) | 2 | ||
| 44-9591 | PIN (18 ga) | 3 | ||
| 21 | 44-8915 | RECEPTACLE (4-pin, see 112D9) | 1 | |
| 44-8918 | WEDGE (4-pin, see 112D9) | 1 | ||
| 44-9591 | PIN (18 ga) | 3 | ||
| 22 | 44-7245 | TERMINAL - ring (#10 red, 22-16 ga) | 4 | |
| 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 4 |
