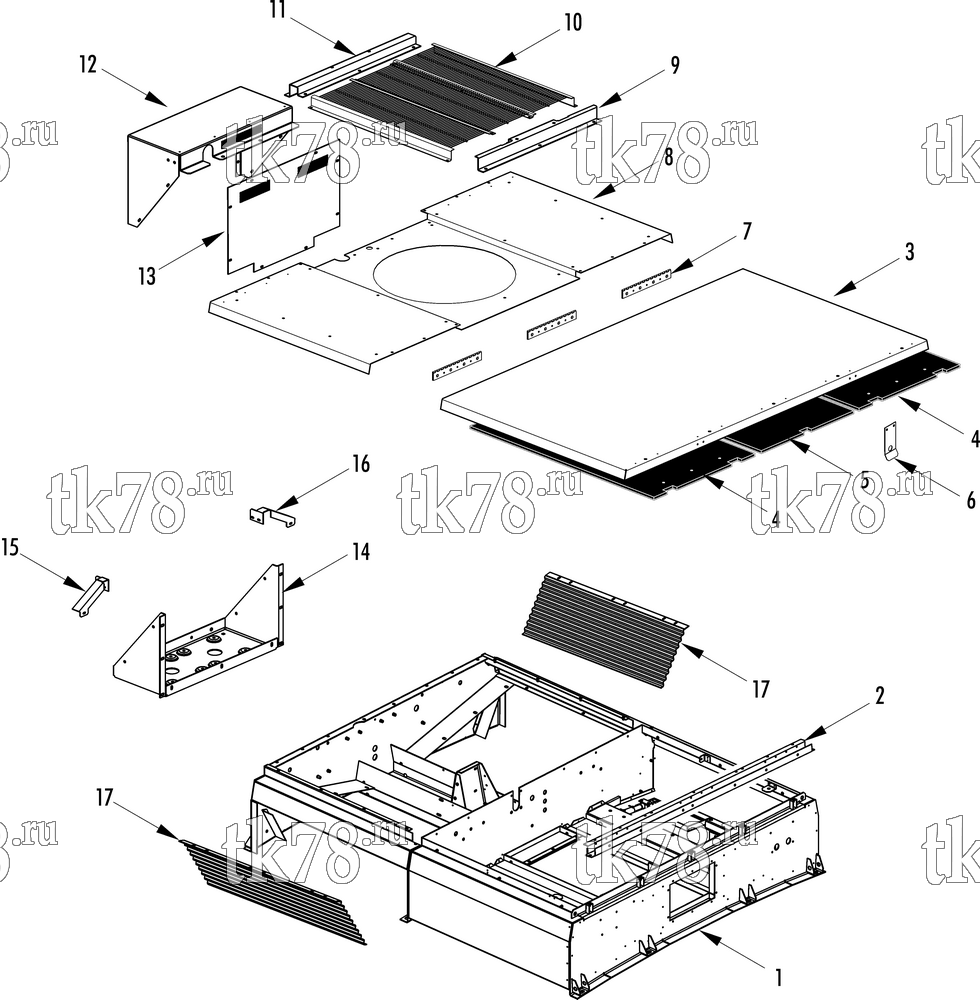

Установкa Thermo King REH-M5 схема STRUCTURAL COMPONENTS – 230C0
Обновление от: 6/18/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6908 | FRAME - assembly | 1 | |
| 2 | 92-7092 | CHANNEL - cover | 1 | |
| 3 | 98-8062 | COVER - evaporator | 1 | |
| 4 | 33-4459 | INSULATION - cover | 2 | |
| 5 | 33-4460 | INSULATION - cover (center) | 1 | |
| 51-919 | WASHER - insulation | 24 | ||
| 92-4073 | SPINDLE - insulation | 24 | ||
| 55-5223 | WASHER - special | 5 | ||
| 55-7112 | WASHER - special | 5 | ||
| 6 | 92-7093 | BRACKET - latch | 2 | |
| 7 | 91-9730 | HINGE - cover | 3 | |
| 55-3027 | SCREW - hinge (#10) | 12 | ||
| 55-2001 | FLATWASHER | 24 | ||
| 55-4560 | NUT | 12 | ||
| 8 | 98-8064 | SHROUD - condenser | 1 | |
| 9 | 92-7094 | BRACKET - grille | 1 | |
| 10 | 98-8063 | GRILLE - condenser | 1 | |
| 11 | 92-7095 | SUPPORT - grille | 1 | |
| 12 | 98-8065 | COVER - compressor | 1 | |
| 13 | 98-8066 | PANEL - compressor | 1 | |
| 14 | 98-8046 | PLATE - compressor mount (see 226H5) | 1 | |
| 15 | 92-7096 | BRACKET - support (roadside) | 1 | |
| 16 | 92-7097 | BRACKET - support (curbside) | 1 | |
| 17 | 98-8067 | SCREEN - condenser | 2 | |
| 55-2977 | SCREW - cover (1/4-20x1) | 5 | ||
| 55-2957 | SCREW - channel (1/4-20x7/8) | 8 | ||
| 55-2086 | FLATWASHER (1/4) | 8 | ||
| 55-1800 | LOCKWASHER (1/4) | 5 |
