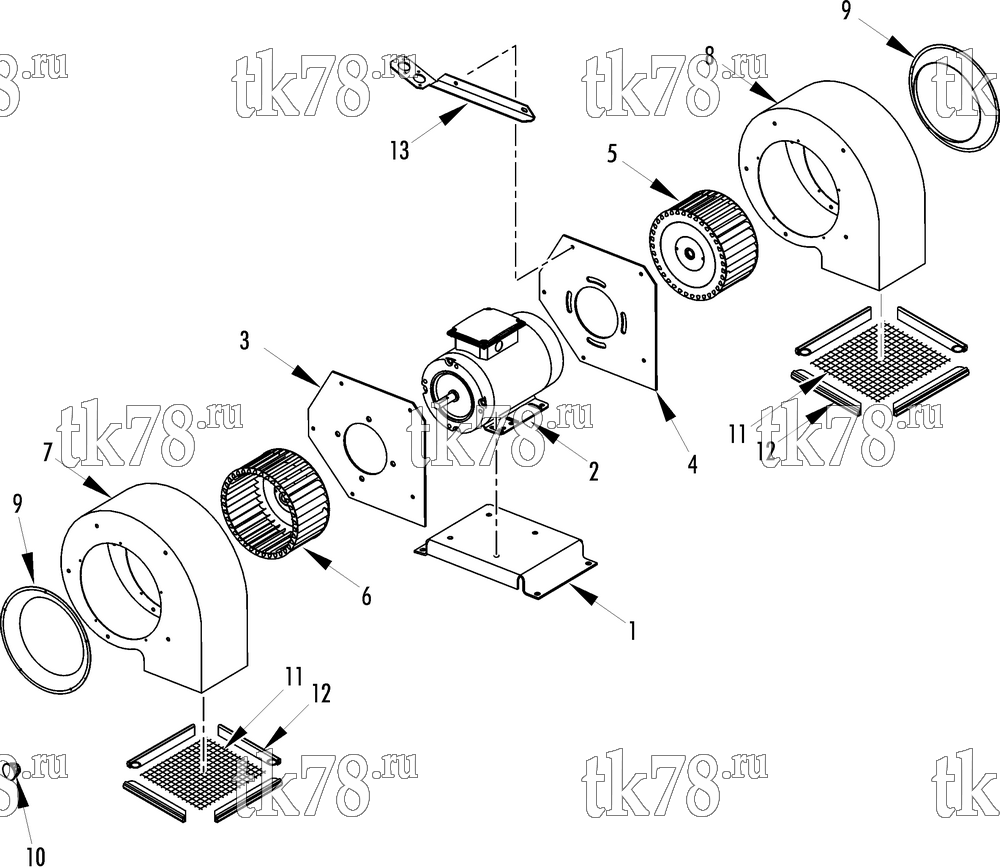

Установкa Thermo King REH-M5 схема EVAPORATOR MOTOR & BLOWER – 228B3
Обновление от: 8/3/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8047 | BRACKET - motor | 2 | |
| 55-2683 | SCREW - bracket | 8 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-2363 | LOCKWASHER | 8 | ||
| 2 | 104-748 | MOTOR - blower | 2 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-4184 | WASHER - spacer | 8 | ||
| 55-4954 | NUT | 8 | ||
| 3 | 92-7008 | PLATE - motor/blower | 2 | |
| 4 | 92-7009 | PLATE - motor/blower | 2 | |
| 55-1587 | SCREW - plate to housing | 16 | ||
| 55-2086 | FLATWASHER | 32 | ||
| 55-4953 | NUT | 16 | ||
| 5 | 77-2932 | WHEEL - blower (cw) | 2 | |
| 6 | 77-2933 | WHEEL - blower (ccw) | 2 | |
| 7 | 78-1706 | HOUSING - assembly (ccw, includes 6 & 9) | 2 | |
| 55-2979 | SCREW - housing (1/4-20 x 1-1/4 in) | 4 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-1801 | NUT | 3 | ||
| 55-3505 | SCREW - plate to motor (3/8) | 16 | ||
| 55-2363 | LOCKWASHER | 16 | ||
| 55-2641 | FLATWASHER | 16 | ||
| 8 | 78-1707 | HOUSING - assembly (cw, includes 5 & 9) | 2 | |
| 9 | 77-2934 | RING - inlet | 4 | |
| 55-4828 | SCREW - ring | 10 | ||
| 10 | 51-1769 | PLUG - button | 10 | |
| 11 | 92-7013 | SCREEN - housing | 4 | |
| 12 | 33-3155 | EXTRUSION - rubber (0.59 ft lg) | 8 | |
| 13 | 92-7014 | BRACKET - thermostat | 1 |
