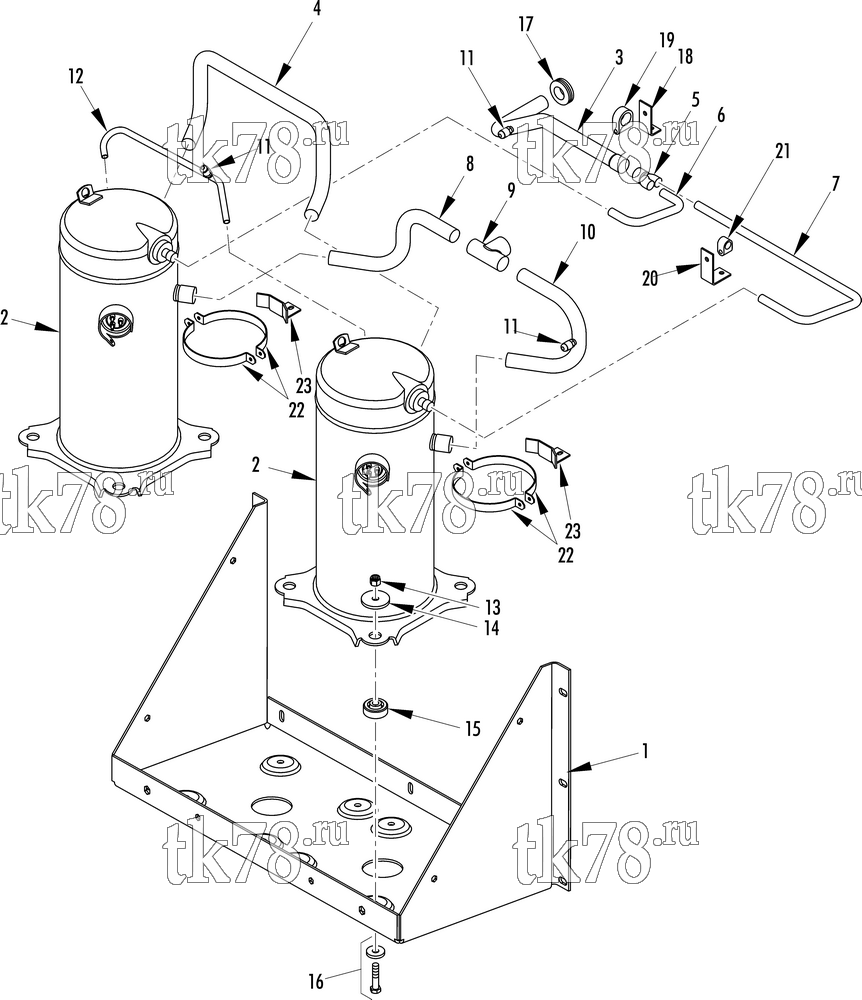

Установкa Thermo King REH-M5 схема COMPRESSOR REFRIGERATION – 226H5
Обновление от: 6/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8046 | MOUNT - compressor | 1 | |
| 55-2683 | SCREW - mount (3/8-16 x 1-1/4) | 7 | ||
| 55-2961 | SCREW - mount (3/8-16 x 1-1/2) | 2 | ||
| 55-4931 | WASHER - special | 9 | ||
| 55-2363 | LOCKWASHER | 9 | ||
| 2 | 102-925 | COMPRESSOR - scroll | 2 | |
| 3 | 61-4330 | TUBE - compressor discharge | 1 | |
| 4 | 66-9830 | TUBE - gas equalization | 1 | |
| 5 | 66-9835 | FITTING - discharge | 1 | |
| 6 | 66-9829 | TUBE - compressor discharge | 1 | |
| 7 | 61-4331 | TUBE - compressor discharge | 1 | |
| 8 | 66-9832 | TUBE - compressor to tee (suction) | 1 | |
| 9 | 55-6508 | TEE - suction tubes | 1 | |
| 10 | 66-9833 | TUBE - compressor to tee (suction) | 1 | |
| 11 | 66-9842 | VALVE - pressure | 3 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 12 | 61-4332 | TUBE - oil equalizer | 1 | |
| 13 | 55-4955 | NUT - compressor | 8 | |
| 14 | 55-4543 | WASHER - special | 8 | |
| 15 | 91-9700 | SPACER - compressor | 8 | |
| 16 | 55-2341 | SCREW - compressor | 8 | |
| 55-4931 | WASHER - special (0.406 id) | 8 | ||
| 17 | 33-452 | GROMMET (0.875 id) | 1 | |
| 18 | 55-7013 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 19 | 92-4047 | BRACKET - tube clamp | 1 | |
| 20 | 92-4070 | BRACKET - tube clamp | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 21 | 55-6389 | CLAMP - tube | 1 | |
| 55-3121 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 22 | 91-9703 | CLAMP - compressor | 4 | |
| 23 | 92-7096 | BRACKET - clamp | 2 |
