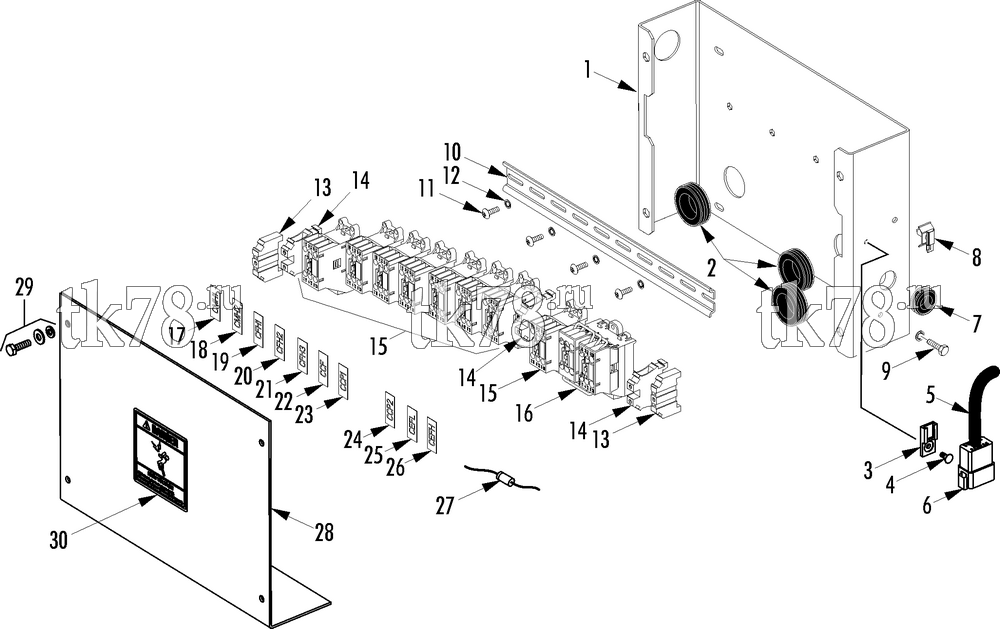

Установкa Thermo King REH-M5 схема CONTACTOR BOX – 226H0
Обновление от: 6/16/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6994 | PANEL - contactor box | 1 | |
| 55-2957 | SCREW - panel | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-8711 | INSERT - threaded | 4 | ||
| 2 | 33-2023 | GROMMET (1-1/8 ID) | 3 | |
| 3 | 44-9906 | TAB - connector | 1 | |
| 4 | 55-3101 | RIVET - tab | 1 | |
| 5 | 41-8251 | HARNESS - contactor panel | 1 | |
| 6 | 44-9904 | RECEPTACLE - 12 terminal | 1 | |
| 44-9905 | WEDGE | 1 | ||
| 7 | 33-367 | GROMMET (5/8 id) | 1 | |
| 8 | 55-9704 | CLIP | 1 | |
| 9 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 10 | 41-8252 | RAIL - din | 1 | |
| 11 | 55-3099 | SCREW - rail | 4 | |
| 12 | 55-2996 | LOCKWASHER | 4 | |
| 55-8752 | INSERT - threaded | 4 | ||
| 13 | 41-7997 | CLAMP - din rail | 2 | |
| 14 | 41-7996 | BLOCK - ground | 4 | |
| 15 | 41-8253 | CONTACTOR - 12 amp | 8 | |
| 16 | 41-7991 | CONTACTOR - 6 amp | 1 | |
| 17 | 92-6995 | MARKSTRIP - CMH1 | 1 | |
| 18 | 92-6996 | MARKSTRIP - CMH2 | 1 | |
| 19 | 92-6997 | MARKSTRIP - CFH1 | 1 | |
| 20 | 92-6998 | MARKSTRIP - CFH2 | 1 | |
| 21 | 92-6999 | MARKSTRIP - CFH3 | 1 | |
| 22 | 92-7001 | MARKSTRIP - CCF | 1 | |
| 23 | 92-6593 | MARKSTRIP - CCP1 | 1 | |
| 24 | 92-6594 | MARKSTRIP - CCP2 | 1 | |
| 25 | 92-7002 | MARKSTRIP - CEFL | 1 | |
| 26 | 92-7003 | MARKSTRIP - CEFH | 1 | |
| 27 | 44-5763 | DIODE | 2 | |
| 28 | 92-7000 | COVER - contactor box | 1 | |
| 29 | 55-2957 | SCREW - cover | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 30 | 92-4092 | NAMEPLATE - Danger, High Voltage | 2 |
