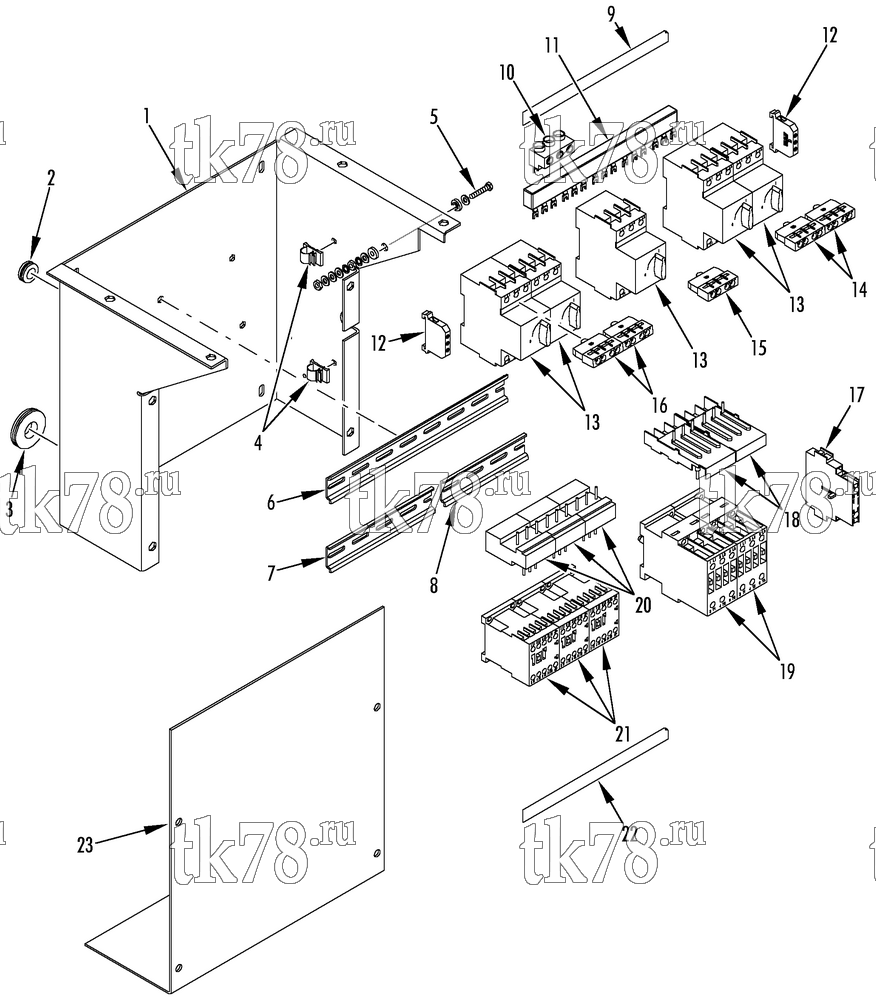

Установкa Thermo King REH-M3 схема CONTROL PANEL – 192F0
Обновление от: 7/14/04
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 98-6906 | PANEL - control | 1 |
| 55-2957 | SCREW - panel | 8 | |
| 55-2086 | FLATWASHER | 8 | |
| 55-1800 | LOCKWASHER | 8 | |
| 55-8711 | INSERT | 4 | |
| 2 | 33-428 | GROMMET (1/2 id) | 1 |
| 3 | 33-1129 | GROMMET (3/4 id) | 1 |
| 4 | 99-9646 | CLIP - wire | 2 |
| 5 | 55-3000 | SCREW - ground | 1 |
| 55-3006 | WASHER - shoulder | 2 | |
| 55-2001 | FLATWASHER | 5 | |
| 55-2996 | LOCKWASHER (int th) | 2 | |
| 55-2965 | NUT | 2 | |
| 6 | 309-3067 | RAIL - din (10.50 in lg) | 1 |
| 7 | 92-4056 | RAIL - din (6.19 in lg) | 1 |
| 8 | 92-4093 | RAIL - din (4.92 in lg) | 1 |
| 55-3099 | SCREW - din rail | 7 | |
| 55-3496 | LOCKWASHER | 7 | |
| 55-8752 | INSERT | 7 | |
| 9 | 92-4057 | MARKSTRIP | 1 |
| 10 | 41-3891 | TERMINAL - input | 1 |
| 11 | 41-2932 | BUSBAR - 3 ph | 1 |
| 12 | 41-6112 | TERMINAL - ground | 2 |
| 13 | 41-6113 | BLOCK - contactor (auxiliary, 3 ph) | 5 |
| 14 | 41-4268 | BREAKER - circuit (compressor, 9-12.5 amp) | 2 |
| 15 | 41-5565 | BREAKER - circuit (condenser fan, 2.2-3.2 amp) | 1 |
| 16 | 41-4863 | BREAKER - circuit (evaporator fan, 0.91-1.25 amp) | 2 |
| 17 | 41-6114 | BLOCK - contactor (auxiliary) | 1 |
| 18 | 41-6115 | COUPLING - element | 2 |
| 19 | 41-3888 | CONTACTOR - compressor (11 kW) | 2 |
| 20 | 41-2944 | COUPLING - element | 3 |
| 21 | 41-3887 | CONTACTOR- fan motors (2.2 kW) | 3 |
| 22 | 92-4058 | MARKSTRIP | 1 |
| 23 | 98-6907 | COVER - control box | 1 |
| 55-2957 | SCREW - cover | 4 | |
| 55-1800 | LOCKWASHER | 4 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-8711 | INSERT | 4 |
