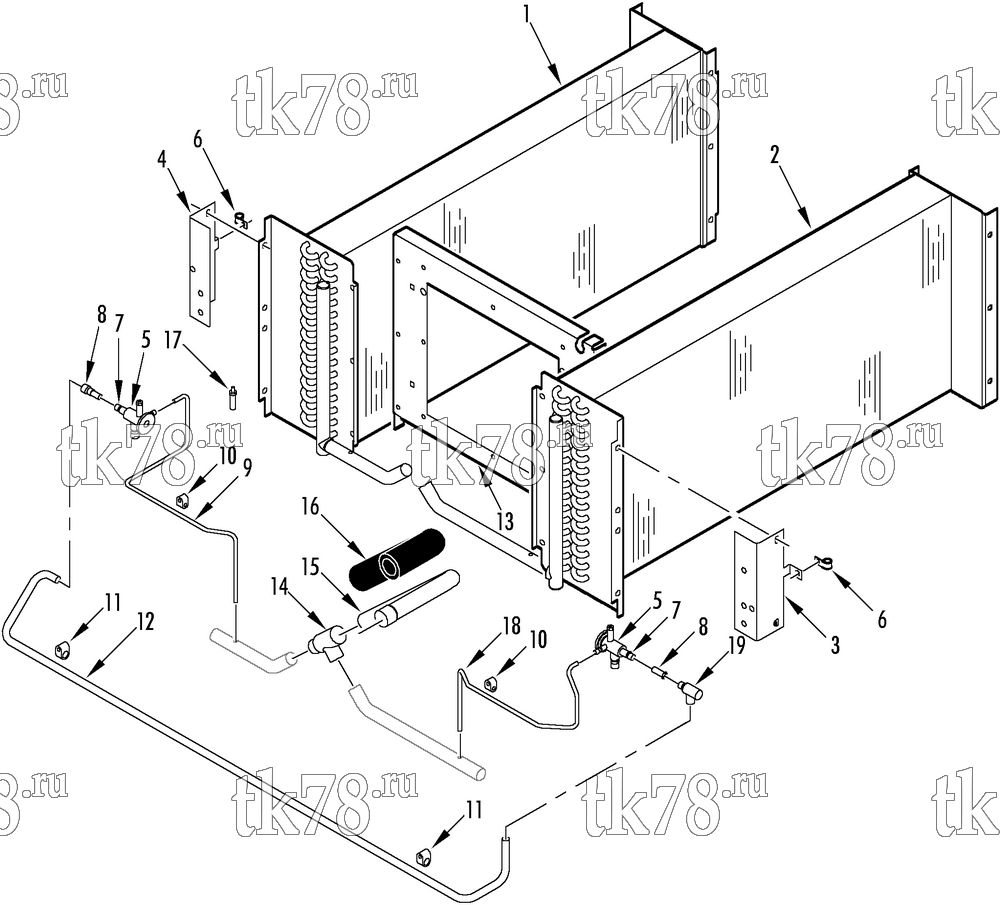

Установкa Thermo King REH-M2 схема EVAPORATOR REFRIGERATION – 154B4
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1594 | COIL - evaporator (curbside) | 1 | |
| 2 | 67-1595 | COIL - evaporator (roadside) | 1 | |
| 55-8711 | INSERT - coil | 26 | ||
| 3 | 91-9707 | BRACKET - coil support (roadside) | 1 | |
| 55-8711 | INSERT - bracket | 5 | ||
| 4 | 91-9708 | BRACKET - coil support (curbside) | 1 | |
| 55-8711 | INSERT - bracket | 4 | ||
| 55-2957 | SCREW - bracket/coil | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 5 | 66-9840 | VALVE - expansion | 2 | |
| 6 | 55-3065 | CLAMP - valve | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 7 | 55-2865 | COUPLING - reducing (1/2 x 3/8) | 1 | |
| 8 | 66-8508 | TUBE - coupling | 2 | |
| 9 | 66-9837 | TUBE - equalizer | 1 | |
| 10 | 55-6544 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 11 | 55-6389 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 12 | 66-9839 | TUBE - liquid to expansion valve | 1 | |
| 13 | 91-9709 | PLATE - coil support | 1 | |
| 55-8752 | INSERT | 8 | ||
| 55-3059 | NUT - captive | 4 | ||
| 14 | 55-8968 | TEE - suction tube | 1 | |
| 15 | 66-9836 | TUBE - suction | 1 | |
| 16 | 91-9750 | INSULATION - tube (8 ft) | A/R | |
| 55-2331 | BANDWRAP | 10 | ||
| 17 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 55-2330 | BANDWRAP | 2 | ||
| 18 | 66-9838 | TUBE - equalizer | 1 | |
| 19 | 55-9240 | TEE (5/8 x 3/8 x 1/2) | 1 |
