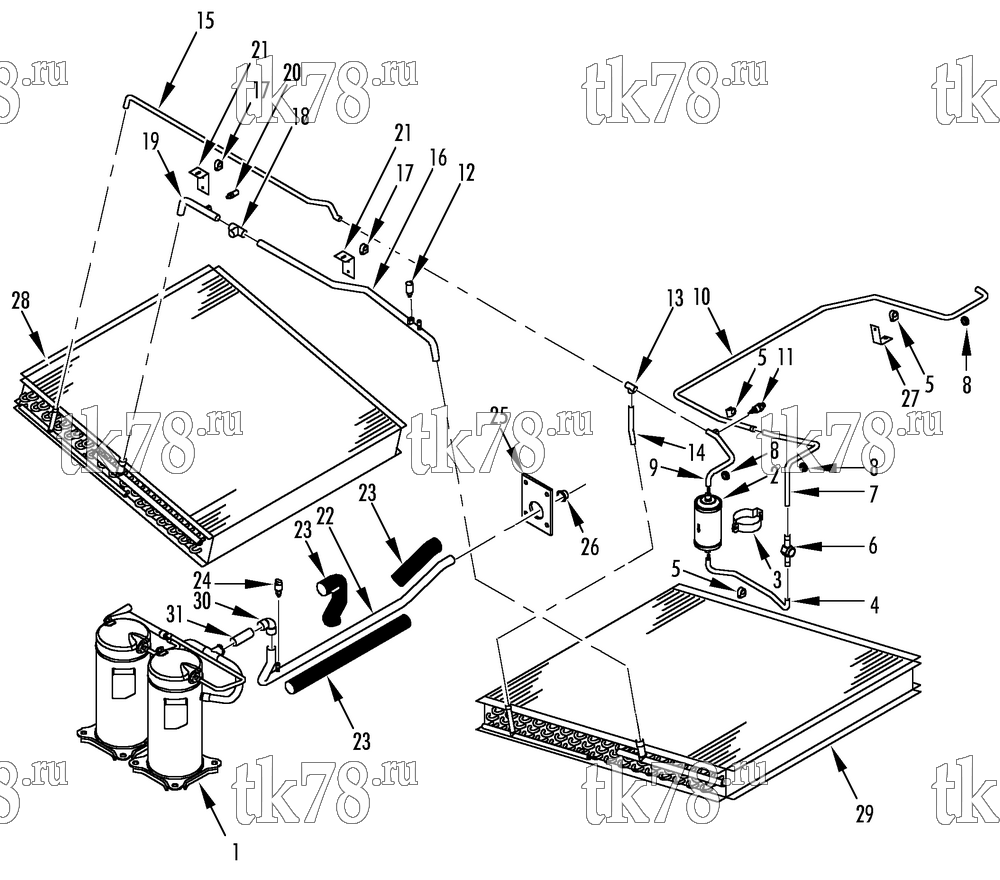

Установкa Thermo King REH-M2 схема CONDENSER REFRIGERATION – 154B3
Обновление от: 1/24/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - group (see 153G14) | 1 | |
| 2 | 66-9841 | DEHYDRATOR - filter/drier | 1 | |
| 55-3121 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 3 | 55-2192 | HANGER - dehydrator | 1 | |
| 55-2969 | SCREW - hanger | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 4 | 66-9848 | TUBE - dehydrator to indicator | 1 | |
| 5 | 91-758 | CLAMP - tube | 5 | |
| 55-3675 | SCREW - clamp | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-4953 | NUT | 5 | ||
| 6 | 66-2648 | INDICATOR - liquid | 1 | |
| 7 | 66-9849 | TUBE - indicator to liquid line | 1 | |
| 8 | 33-367 | GROMMET | 3 | |
| 9 | 66-9847 | TUBE - tee to dehydrator | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 10 | 66-9850 | TUBE - liquid line | 1 | |
| 11 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 12 | 41-3846 | SWITCH - hpco | 1 | |
| 13 | 55-904 | TEE - liquid line | 1 | |
| 14 | 66-9846 | TUBE - coil to tee | 1 | |
| 15 | 66-9845 | TUBE - coil to tee | 1 | |
| 16 | 66-9844 | TUBE - condenser inlet | 1 | |
| 66-9842 | VALVE - pressure | 1 | ||
| 66-4553 | FITTING - saddle | 1 | ||
| 17 | 55-7013 | CLAMP - tube | 2 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 18 | 55-6174 | TEE - discharge tube | 1 | |
| 19 | 66-9843 | TUBE - discharge | 1 | |
| 20 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 41-5394 | SENSOR - only | 1 | ||
| 21 | 91-9726 | BRACKET - tube support | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-1801 | NUT | 1 | ||
| 22 | 66-9851 | TUBE - suction | 1 | |
| 66-9842 | VALVE - pressure | 1 | ||
| 23 | 91-9750 | INSULATION - tube (8 ft) | A/R | |
| 55-2331 | BANDWRAP - insulation | 35 | ||
| 24 | 41-2267 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4338 | SWITCH - only | 1 | ||
| 25 | 91-9728 | PLATE - tube support | 1 | |
| 55-2977 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 26 | 33-2023 | GROMMET - plate | 1 | |
| 27 | 91-9727 | BRACKET - liquid tube | 1 | |
| 28 | 67-1593 | COIL - condenser (curbside) | 1 | |
| 91-9696 | INSULATION - coil | 2 | ||
| 29 | 67-1592 | COIL - condenser (roadside) | 1 | |
| 91-9695 | INSULATION - coil | 2 | ||
| 55-2957 | SCREW - coil | 26 | ||
| 55-4414 | FLATWASHER | 26 | ||
| 55-1800 | LOCKWASHER | 26 | ||
| 30 | 55-3682 | ELBOW | 1 | |
| 31 | 66-7552 | TUBE - elbow to tee | 1 |
