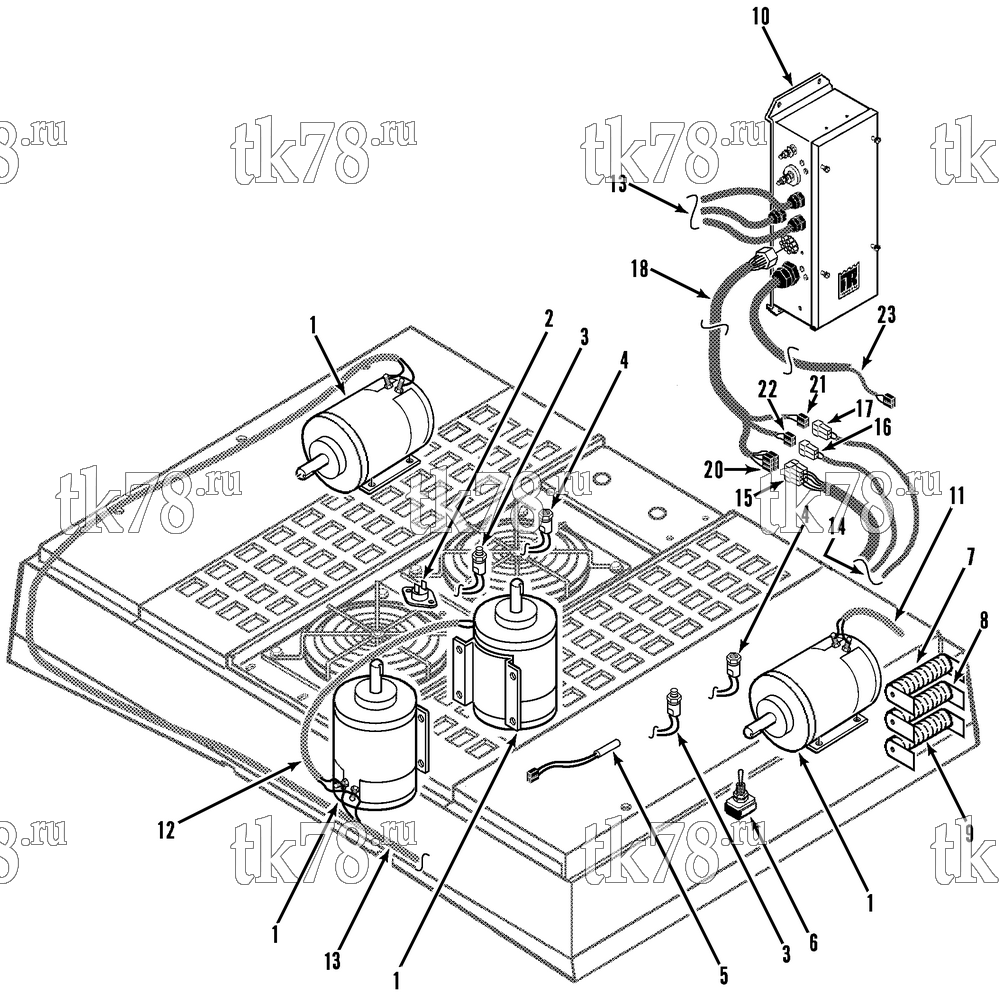

Установкa Thermo King RE/D M1 схема ELECTRICAL COMPONENTS – 93D12
Обновление от: 1/17/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-525 | MOTOR - evaporator to condenser (see 120G12) | 4 | |
| 2 | 44-6005 | THERMOSTAT - ambient | 1 | |
| 55-5644 | SCREW - thermostat | 2 | ||
| 3 | 44-7874 | SWITCH - hpco | 2 | |
| 44-5834 | SWITCH - only | 1 | ||
| 4 | 44-7893 | SWITCH - lpco | 2 | |
| 44-6263 | SWITCH - only | 1 | ||
| 5 | 44-8654 | SENSOR - temperature control | 1 | |
| 44-5835 | CONNECTOR (2-pin) | 1 | ||
| 55-3484 | CLAMP - sensor | 1 | ||
| 55-3024 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 6 | 44-1357 | SWITCH - remote control | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 91-2116 | PLATE - switch | 1 | ||
| 91-2115 | NAMEPLATE - switch | 1 | ||
| 55-1587 | SCREW - plate | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 7 | 44-8653 | RESISTOR (0.5 ohm, see 93D13) | 1 | |
| 8 | 44-8652 | RESISTOR (0.6 ohm, see 93D13) | 1 | |
| 9 | 44-8696 | RESISTOR (0.2 ohm, see 93D13) | 1 | |
| 10 | NSS | BOX - control (see 93D10) | 1 | |
| 11 | 44-8657 | HARNESS - evaporator fan (#1) | 1 | |
| 12 | 44-8658 | HARNESS - condenser fan | 1 | |
| 13 | 44-8655 | HARNESS - motor | 1 | |
| 14 | 44-8656 | HARNESS - control | 1 | |
| 15 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 16 | 44-5835 | CONNECTOR - shroud, harness & remote control switch (2-pin) | 2 | |
| 17 | 44-5838 | CONNECTOR - tower, harness & temperature sensor (2-pin) | 2 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 8 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 10 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 18 | ||
| 18 | 44-8678 | HARNESS - control | 1 | |
| 19 | 44-7884 | CONNECTOR - shroud (22-pin) | 1 | |
| 44-8681 | SEAL - cable (red, 18-20 ga) | 12 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 10 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 10 | ||
| 20 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 21 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 22 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 8 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 10 | ||
| 23 | 44-8661 | HARNESS - setpoint control | 1 |
