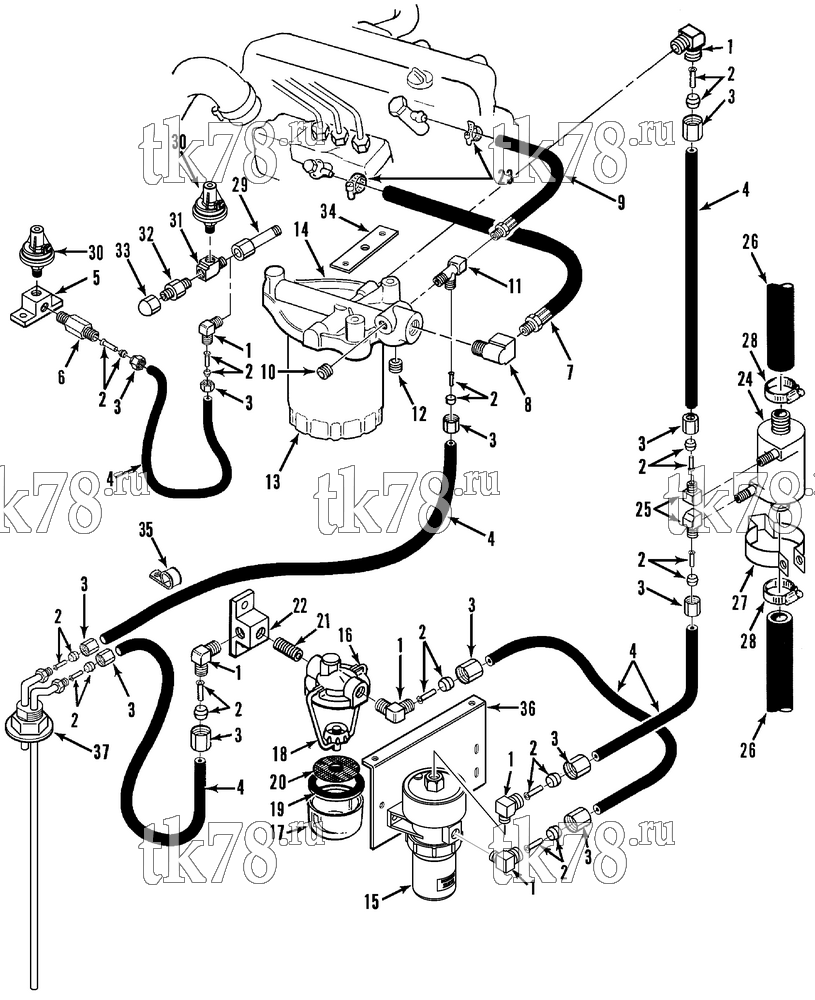

Установкa Thermo King RD-II TLE схема FUEL FILTER, HOSES & FITTINGS – 91B7
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW - hose fitting (3/8) | 6 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 203-393 | SEALER - thread | A/R | ||
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 11 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT (3/8) | 11 | |
| 4 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 5 | 55-8665 | ELBOW - flange | 1 | |
| 55-3031 | SCREW - elbow | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 6 | 55-9108 | ADAPTER | 1 | |
| 7 | 11-6229 | HOSE | 1 | |
| 8 | 55-4244 | ELBOW | 1 | |
| 9 | 11-7056 | HOSE | 1 | |
| 10 | 55-433 | PLUG - pipe | 1 | |
| 11 | 55-7331 | TEE | 1 | |
| 12 | 55-193 | PLUG - pipe | 1 | |
| 13 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 11-9341 | FILTER - fuel (EMI) | 1 | ||
|
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 55-3168 | ADAPTER - fuel pickup | 1 | ||
| 14 | 11-6529 | BRACKET - filter | 1 | |
| 55-2962 | SCREW - bracket | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | LOCKNUT | 3 | ||
| 15 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 55-1587 | SCREW - pump | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 16 | 11-6180 | PREFILTER | 1 | |
| 11-4956 | HEAD - filter | 1 | ||
| 17 | 10-299 | KIT - bowl & filter | 1 | |
| 18 | 11-4957 | BAIL - filter | 1 | |
| 11-4958 | NUT - bail | 1 | ||
| 19 | 33-2464 | GASKET | 1 | |
| 20 | 11-4880 | ELEMENT - filter | 1 | |
| 21 | 55-4512 | NIPPLE | 1 | |
| 22 | 55-4496 | FLANGE | 1 | |
| 23 | 55-2796 | CLAMP - hose | 2 | |
| 24 | 11-5285 | HEATER - diesel fuel (optional) | 1 | |
| 10-253 | KIT - fuel heater (see 59C5) | 1 | ||
| 25 | 99-9591 | FITTING - elbow | 2 | |
| 26 | 12-383 | HOSE - water | A/R | |
| 27 | 55-2537 | HANGER - fuel heater | 1 | |
| 28 | 55-2686 | CLAMP - water hose | 2 | |
| 29 | 11-7473 | EXTENSION - oil switch | 1 | |
| 30 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
| PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
|
| 31 | 55-665 | TEE | 1 | |
| 32 | 55-459 | COUPLING | 1 | |
| 33 | 55-5672 | CAP | 1 | |
| 34 | 91-5901 | PLATE - fuel filter | 1 | |
| 91-8858 | BRACKET - filter & hose (dry air cleaner) | 1 | ||
| 55-1587 | SCREW - plate | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 35 | 55-3359 | CLAMP - hose | 3 | |
| 55-2977 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4560 | LOCKNUT | 3 | ||
| 36 | 92-5656 | BRACKET - fuel filter & pump | 1 | |
| 37 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
