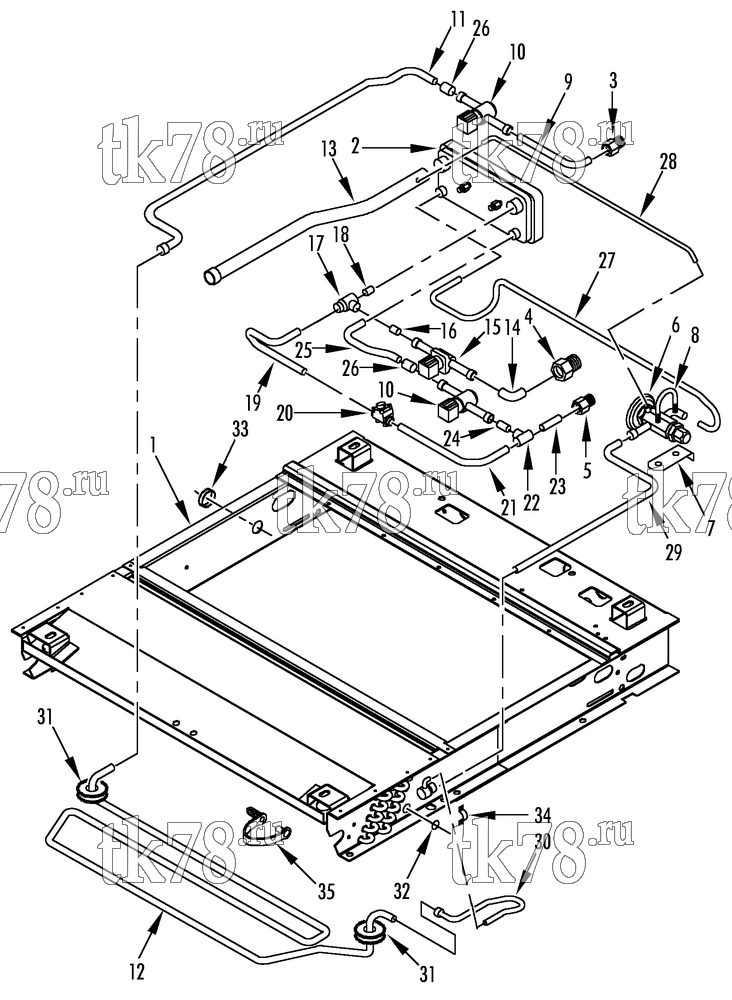

Установкa Thermo King RD-II TLE схема REFRIGERATION (TLE-2) – 151B10
Обновление от: 3/28/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1528 | COIL - evaporator | 1 | |
| 2 | 66-9229 | HEAT EXCHANGER | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 3 | 55-6779 | ADAPTER - bulkhead (defrost) | 1 | |
| 55-9146 | LOCKWASHER | 1 | ||
| 55-6393 | NUT - bulkhead | 1 | ||
| 4 | 55-6354 | ADAPTER - bulkhead (suction) | 1 | |
| 55-7199 | LOCKWASHER | 1 | ||
| 55-6812 | NUT - bulkhead | 1 | ||
| 5 | 66-6036 | ADAPTER - bulkhead (liquid) | 1 | |
| 55-9147 | LOCKWASHER | 1 | ||
| 55-6780 | NUT - bulkhead | 1 | ||
| 6 | 61-594 | VALVE - expansion | 1 | |
| 61-2233 | SCREEN - inlet | 1 | ||
| 66-7169 | ELEMENT - power | 1 | ||
| 7 | 91-8987 | BRACKET - expansion valve | 1 | |
| 55-9101 | SCREW - bracket | 2 | ||
| 55-8711 | INSERT - threaded | 2 | ||
| 8 | 55-5211 | U-BOLT | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 9 | 66-9220 | TUBE - hot gas in (before 8/99) | 1 | |
| 61-553 | TUBE - hot gas in (after 7/99) | 1 | ||
| 10 | 61-3401 | VALVE - solenoid (liquid/defrost, see 116G14, before 1/00) | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 61-2156 | VALVE - solenoid (liquid/defrost, after 12/99, see 116G14) | 2 | ||
| 11 | 61-1197 | TUBE - valve to drain pan heater | 1 | |
| 12 | 66-9300 | TUBE - defrost drain pan | 1 | |
| 55-9204 | FASTENER - polyclamp | 2 | ||
| 13 | 66-9225 | TUBE - suction | 1 | |
| 66-6996 | FITTING - saddle | 1 | ||
| 14 | 55-1659 | ELBOW | 1 | |
| 15 | 61-1300 | VALVE - solenoid (suction, see 117A1) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 16 | 66-9253 | TUBE - valve to tee | 1 | |
| 17 | 55-9102 | TEE (3/4C x 1/2C x 3/4C) | 1 | |
| 18 | 66-9254 | TUBE - tee to exchanger | 1 | |
| 19 | 66-9216 | TUBE - check valve to suction | 1 | |
| 55-2239 | CLAMP - tube | 1 | ||
| 20 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 21 | 66-9223 | TUBE - tee to valve | 1 | |
| 22 | 66-622 | TEE (1/2 x 3/8 x 1/2) | 1 | |
| 23 | 66-9583 | TUBE - adapter to tee | 1 | |
| 24 | 66-9584 | TUBE - tee to valve | 1 | |
| 25 | 66-9221 | TUBE - liquid valve to exchanger (before 8/99) | 1 | |
| 61-555 | TUBE - liquid valve to exchanger (after 7/99) | 1 | ||
| 26 | 55-2865 | COUPLING (1/2 sld, 3/8 sld) | 2 | |
| 27 | 66-9228 | TUBE - exchanger to expansion valve | 1 | |
| 91-2686 | CLAMP - tube | 4 | ||
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 28 | 66-9227 | TUBE - equalizer | 1 | |
| 29 | 66-9224 | TUBE - expansion valve to coil | 1 | |
| 30 | 61-1196 | TUBE - drain pan to distributor | 1 | |
| 31 | 33-428 | GROMMET - tube | 2 | |
| 32 | 33-282 | GROMMET (3/8 id) | 2 | |
| 33 | 33-415 | GROMMET (5/8 id) | 1 | |
| 34 | 91-9248 | BRACKET - distributor | 1 | |
| 55-2264 | RIVET - bracket | 2 | ||
| 35 | 55-9204 | FASTENER - tube | 2 |
