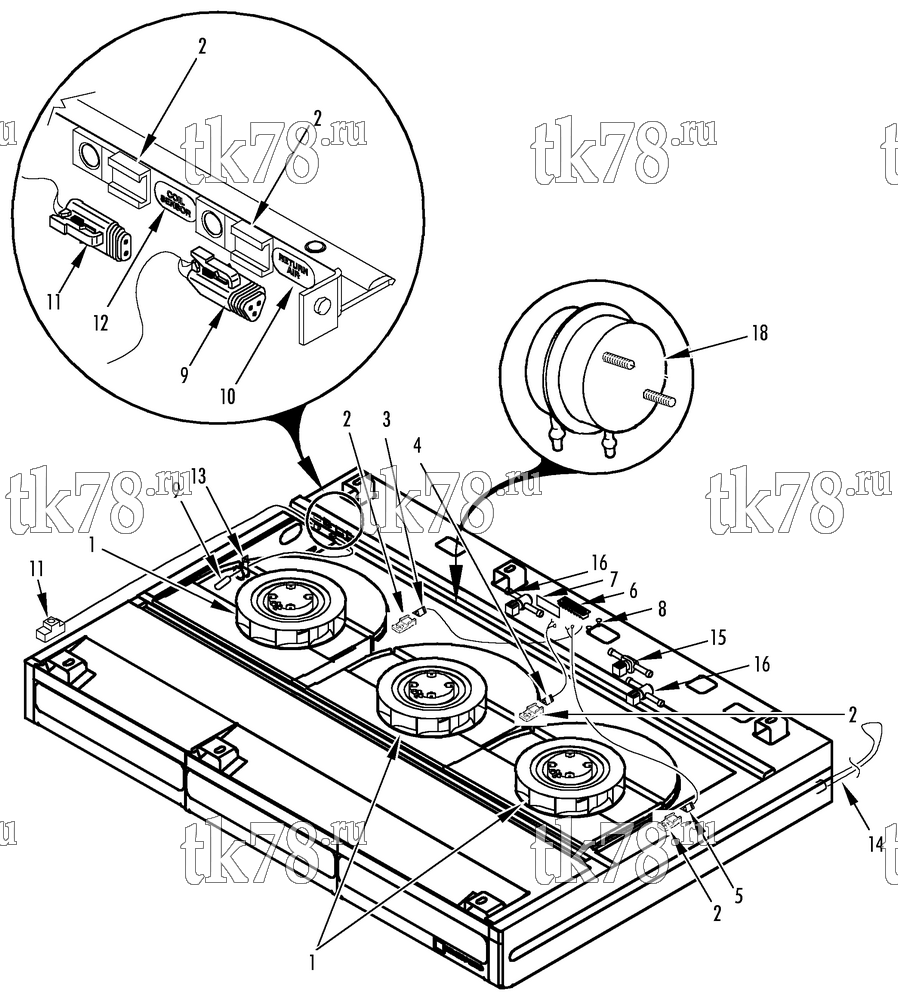

Установкa Thermo King RD-II TLE схема ELECTRICAL COMPONENTS (TLE-3) – 150D8
Обновление от: 3/28/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1211 | BLOWER & MOTOR (12V) | 3 | |
| 2 | 44-9906 | TAB - connector | 5 | |
| 55-2264 | RIVET - tab | 5 | ||
| 55-2201 | FLATWASHER | 5 | ||
| 3 | 41-2613 | HARNESS - fan (No. 1) | 1 | |
| 4 | 41-2614 | HARNESS - fan (No. 2) | 1 | |
| 5 | 41-2615 | HARNESS - fan (No. 3) | 1 | |
| 6 | 44-3414 | BOARD - terminal | 1 | |
| 55-5358 | SCREW - terminal board | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 7 | 91-9251 | MARKSTRIP | 1 | |
| 8 | 55-3000 | SCREW - ground | 2 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 9 | 41-418 | SENSOR - return air | 1 | |
| 10 | 91-6996 | NAMEPLATE - Return Air Sensor | 1 | |
| 11 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 12 | 91-6995 | NAMEPLATE - Sensor Coil | 1 | |
| 13 | 55-547 | CLAMP - sensor | 2 | |
| 14 | 44-6026 | WIRE - resistance | A/R | |
| 15 | 61-1300 | VALVE - suction (see 117A1) | 1 | |
|
61-1300 OEM | Клапан Ø 18мм, SB/SB-III/SMX/SMX-II/MD-II/RD-II/SL/SLX/SLXe | 41 690 ₽ |
|
| 16 | 61-3401 | VALVE - liquid & defrost (see 116G14) | 2 | |
|
10-61-9093 | Соленоид горячего газа, MD-II/RD-II/SB-III/SMX/UTS / T/UT-Series | 19 380 ₽ |
|
| 17 | 41-2616 | HARNESS - coil sensor | 1 | |
| 18 | 44-3474 | SWITCH - air pressure differential (see 150D2) | 1 | |
|
10-44-3474 | Переключатель воздуха | 7 150 ₽ |
|
