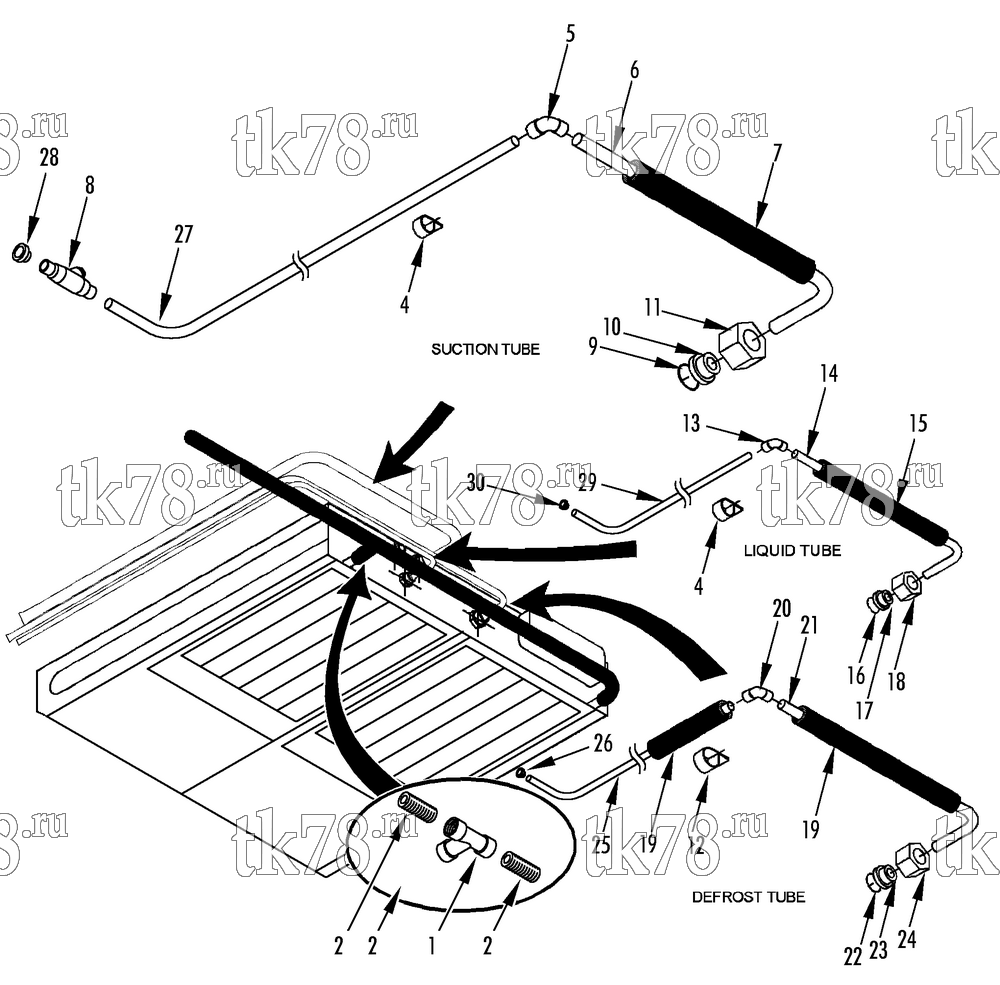

Установкa Thermo King RD-II TLE схема TLE-2 INSTALLATION – 150D4
Обновление от: 2/15/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9148 | TEE - defrost hose | 4 | |
| 2 | 91-2434 | HOSE - drain | A/R | |
| 3 | Not Used | |||
| 4 | 55-7504 | CLAMP (1-1/8 dia) | 25 | |
| 55-6156 | CLAMP (1-1/2 dia) | 25 | ||
| 55-6033 | SCREW - clamp | 75 | ||
| 5 | 55-3326 | ELBOW (7/8 sld x 3/4 sld) | 4 | |
| 55-3680 | COUPLING (7/8 sld, 3/4 sld) | 2 | ||
| 55-8968 | TEE (1-1/8 x 7/8 x 7/8) | 1 | ||
| 6 | 61-831 | TUBE - suction | 1 | |
| 7 | 91-3542 | TUBE - insulation (suction, 40 ft) | 1 | |
| 55-2330 | BANDWRAP | 40 | ||
| 8 | 66-6179 | VALVE - check (see 106C14) | 1 | |
| 9 | 33-544 | O-RING (1-1/4 od) | 1 | |
| 10 | 55-5939 | SHOULDER - tube (1-1/8) | 1 | |
| 11 | 55-5935 | NUT - shoulder (1-11/16) | 1 | |
| 12 | 55-2818 | CLAMP (0.750 dia) | 12 | |
| 55-6350 | SCREW - clamp | 12 | ||
| 13 | 55-2876 | ELBOW (3/8 x 3/8) | 1 | |
| 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | ||
| 14 | 66-9393 | TUBE - liquid | 1 | |
| 15 | 99-8462 | TUBE - insulating (liquid, 12 ft) | 1 | |
| 16 | 33-1015 | O-RING (3/8 id) | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 55-8268 | SHOULDER - tube | 1 | |
| 18 | 55-8267 | NUT - shoulder (11/16) | 1 | |
| 19 | 91-3541 | TUBE - insulating (defrost, 35 ft) | 1 | |
| 55-2331 | BANDWRAP | 25 | ||
| 20 | 55-4235 | ELBOW (5/8 sld x 5/8 sld) | 2 | |
| 55-3627 | COUPLING (5/8 sld, 1/2 sld) | 2 | ||
| 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | ||
| 21 | 66-9391 | TUBE - defrost | 1 | |
| 22 | 33-2115 | O-RING (5/8 id) | 1 | |
| 23 | 55-6356 | SHOULDER - tube (5/8) | 1 | |
| 24 | 55-6396 | NUT - shoulder (5/8) | 1 | |
| 25 | 66-9260 | TUBE - defrost | 1 | |
| 26 | 55-6837 | SHOULDER - tube | 1 | |
| 27 | 66-9258 | TUBE - suction | 1 | |
| 28 | 55-7162 | SHOULDER - tube | 1 | |
| 29 | 66-9259 | TUBE - liquid | 1 | |
| 30 | 55-6357 | SHOULDER - tube (1/2) | 1 |
