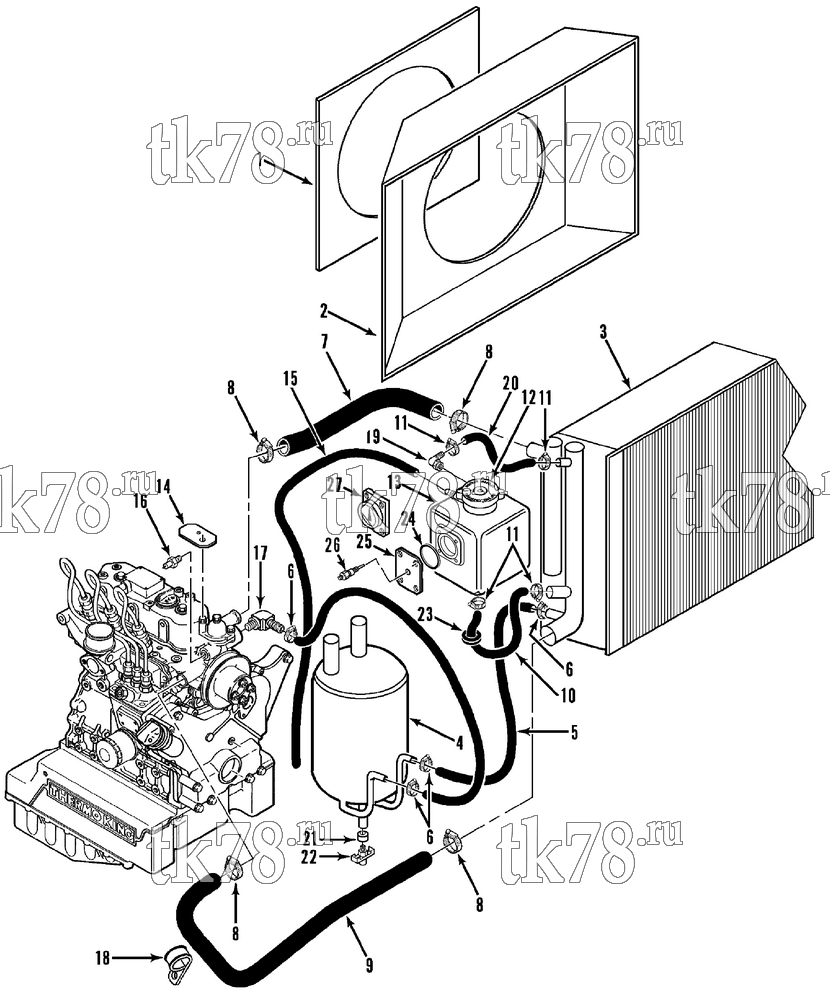

Установкa Thermo King RD-II TLE схема ENGINE COOLING SYSTEM – 150C8
Обновление от: 1/19/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3726 | ORIFICE - condenser fan | 1 | |
| 55-2977 | SCREW - orifice | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 2 | 98-3725 | PLENUM - condenser | 1 | |
| 55-2977 | SCREW - plenum | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 67-929 | COIL - condenser/radiator (TD-II SR, RDB-II) | 1 | |
| 67-937 | COIL - condenser/radiator (RD-II SR) | 1 | ||
| 55-3059 | NUT - captive | 12 | ||
| 55-2977 | SCREW - coil (1.0 lg) | 1 | ||
| 55-1587 | SCREW - coil (3/4 lg) | 9 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 2 | ||
| 4 | 67-1398 | TANK - accumulator | 1 | |
| 55-2683 | SCREW - accumulator | 3 | ||
| 55-7172 | WASHER - belleville | 3 | ||
| 55-2640 | NUT | 3 | ||
| 5 | 11-8041 | HOSE - accumulator (EPDM, 3/8 x 50 ft) | A/R | |
| 12-538 | HOSE - accumulator (silicone, 3/8 x 25 ft) | A/R | ||
| 6 | 55-2069 | CLAMP - hose (EPDM) | 4 | |
| 55-6731 | CLAMP - hose (silicone) | 4 | ||
| 7 | 11-9516 | HOSE - engine to radiator (upper, EPDM, before 1/00) | 1 | |
| 11-9517 | HOSE - engine to radiator (upper, silicone, before 1/00) | 1 | ||
| 8 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-6731 | CLAMP - hose (silicone) | 4 | ||
| 9 | 11-9526 | HOSE - engine to radiator (lower, EPDM) | 1 | |
| 11-9557 | HOSE - engine to radiator (lower, silicone) | 1 | ||
| 10 | 98-935 | HOSE - overflow tank to radiator (EPDM, 3/4 x 25 ft) | 1 | |
| 12-419 | HOSE - overflow tank to radiator (silicone, 3/4 x 25 ft) | 1 | ||
| 11 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-1521 | CLAMP - hose (silicone) | 4 | ||
| 12 | 11-9242 | CAP - tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 13 | 12-489 | TANK - overflow | 1 | |
| 55-1587 | SCREW - tank | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 14 | 91-7747 | PLATE - sensor | 1 | |
| 55-2536 | CLAMP (0.250 dia) | 1 | ||
| 55-4865 | CLAMP (0.562 dia) | 2 | ||
| 15 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 16 | 44-3018 | SENSOR - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 17 | 55-8652 | ELBOW - hose | 1 | |
| 18 | 55-2666 | CLAMP - hose | 1 | |
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 19 | 55-8653 | ADAPTER - hose | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 20 | 11-6487 | HOSE - coil to overflow tank (EPDM, 3/8 x 29 in) | 1 | |
| 12-538 | HOSE - coil to overflow tank (silicone, 3/8 x 25 ft) | 1 | ||
| 21 | 55-5072 | ADAPTER | 1 | |
| 22 | 55-5094 | DRAIN COCK | 1 | |
| 23 | 33-489 | GROMMET | 1 | |
| 24 | 33-1433 | GASKET - overflow tank | 1 | |
| 25 | 91-7746 | PLATE - switch (water level) | 1 | |
| 55-7523 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 26 | 44-6534 | SENSOR - water level | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 55-4560 | NUT | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 27 | 11-6170 | GAUGE - coolant level | 1 | |
| 33-1433 | GASKET - gauge | 1 | ||
| 11-6171 | DIAL - gauge | 1 | ||
| 55-7523 | SCREW - gauge | 4 |
