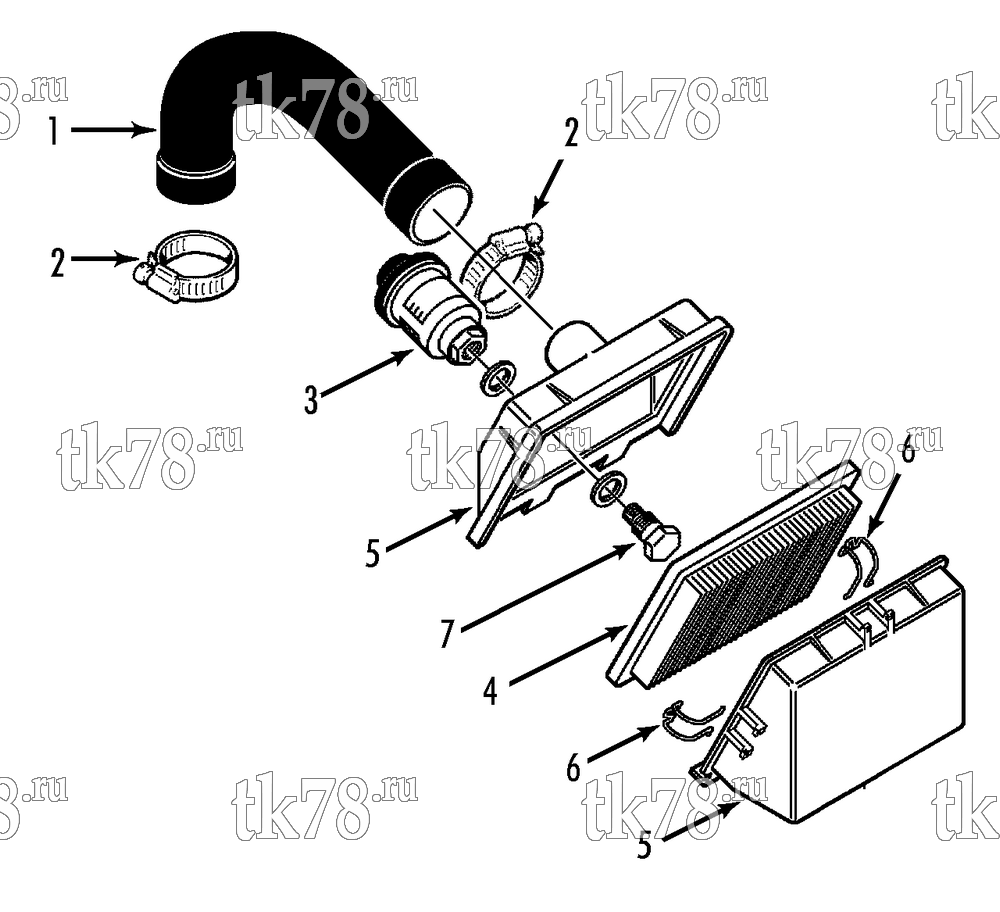

Установкa Thermo King RD-II TLE схема DRY AIR CLEANER (w/ INDICATOR) – 150C7
Обновление от: 2/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9094 | HOSE - air cleaner to engine | 1 | |
| 2 | 55-4979 | CLAMP - hose | 2 | |
| 3 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 4 | 11-7234 | FILTER - air (incl clips) | 1 | |
|
US-11-7234 | Фильтр воздушный, MD-II/RD-II/KD-II/TD-II | 1 740 ₽ |
|
|
10-11-7234 | Фильтр воздушный, MD-II/RD-II/KD-II/TD-II | 950 ₽ |
|
| 5 | 11-9063 | BOX - air filter | 1 | |
| 6 | 11-7995 | CLIP - cover | 3 | |
| 55-2977 | SCREW - cover & box | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 7 | 55-7581 | FITTING - air indicator | 1 | |
| 203-385 | SEALER - thread | A/R |
