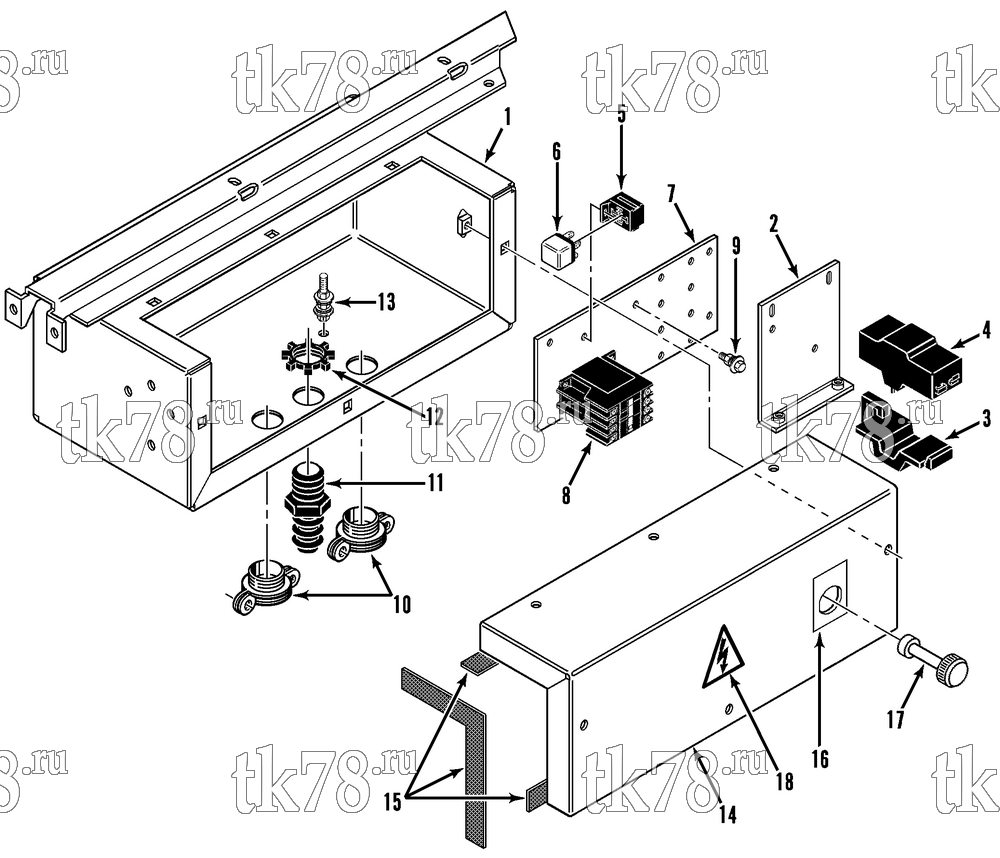

Установкa Thermo King RD-II TLE схема HIGH VOLTAGE CONTROL – 150C5
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5907 | BOX - high voltage | 1 | |
| 55-1587 | SCREW - box (3/4 in) | 4 | ||
| 55-2977 | SCREW - box (1 in) | 1 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-4953 | NUT | 5 | ||
| 2 | 91-5908 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 3 | 41-6096 | ADAPTER - relay | 1 | |
| 55-3022 | SCREW - base | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 4 | 41-5621 | RELAY - overload (230VAC, incl base) | 1 | |
| 41-5623 | RELAY - overload (380/460VAC, incl base) | 1 | ||
| 41-6096 | BRACKET - overload | 1 | ||
| 5 | 44-5537 | SOCKET - relay | 1 | |
| 55-3015 | SCREW - socket | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 6 | 41-895 | RELAY - mini | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 7 | 91-5909 | BRACKET - contactor | 1 | |
| 55-3000 | SCREW - bracket | 4 | ||
| 55-3008 | WASHER - sealing | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2965 | NUT | 8 | ||
| 8 | 41-5631 | CONTACTOR - motor (24 volt coil) | 1 | |
| 41-5630 | CONTACTOR - motor (12 volt coil) | 1 | ||
| 41-5629 | CONTACTOR - motor (12V) | 1 | ||
| 55-3511 | SCREW - contactor | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 9 | 55-3031 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 10 | 55-3831 | CONNECTOR - cable | 2 | |
| 11 | 55-2789 | FITTING - barb | 3 | |
| 33-144 | O-RING | 3 | ||
| 12 | 55-2635 | NUT | 1 | |
| 13 | 55-5215 | SCREW - ground | 1 | |
| 55-3023 | WASHER - sealing | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-2202 | LOCKWASHER | 1 | ||
| 55-3800 | LOCKWASHER (internal tooth) | 1 | ||
| 55-2990 | NUT | 2 | ||
| 14 | 91-3807 | COVER - box | 1 | |
| 55-2991 | SCREW - cover | 6 | ||
| 55-3008 | WASHER - sealing | 6 | ||
| 55-4526 | NUT - captive | 6 | ||
| 15 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | |
| 16 | 44-9465 | NAMEPLATE - Motor Reset | 1 | |
| 17 | 44-4613 | BUTTON - reset | 1 | |
| 18 | 99-7834 | NAMEPLATE - Caution | 1 |
