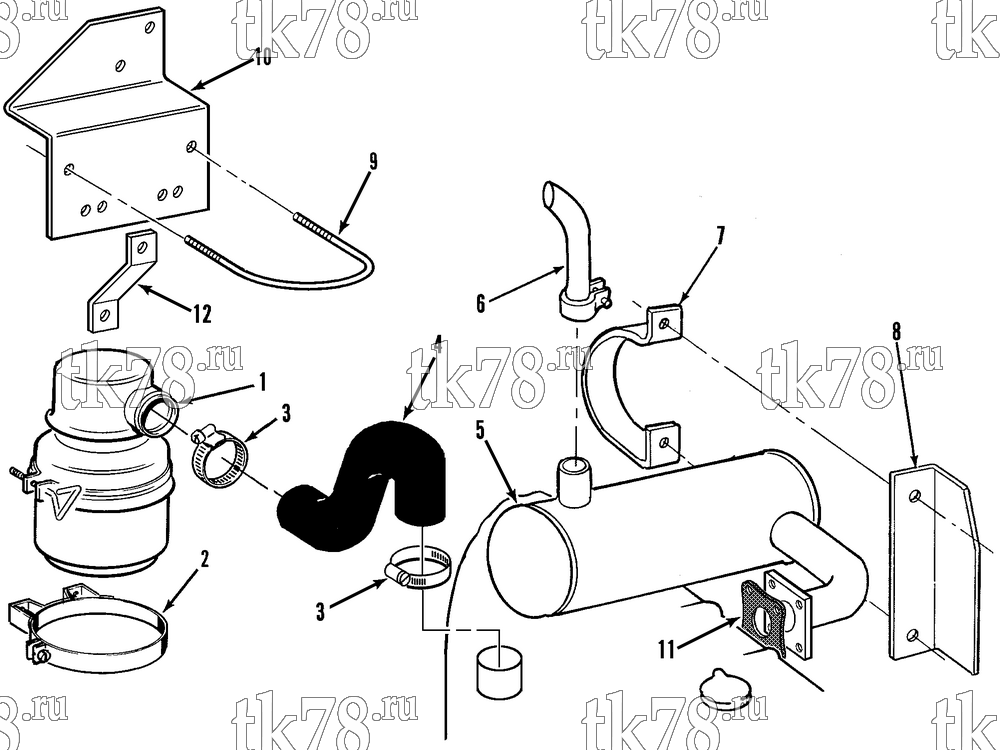

Установкa Thermo King RD-II TLE схема INTAKE & EXHAUST SYSTEM (OIL BATH) – 133B1
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-825 | CLEANER - air (oil bath) | 1 | |
| 11-3325 | CUP - air cleaner | 1 | ||
| 11-6491 | CLAMP - air cleaner cup | 1 | ||
| 2 | 11-2975 | CLAMP - oil bath air cleaner | 1 | |
| 55-1587 | SCREW - cleaner | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT - cleaner | 2 | ||
| 3 | 55-4979 | CLAMP - hose | 2 | |
| 4 | 11-7070 | HOSE - air cleaner to engine (oil bath, TSA) | 1 | |
| 11-6172 | HOSE - air cleaner to engine (oil bath, EMEIA) | 1 | ||
| 5 | 12-767 | MUFFLER (before 1/98 & EMEIA) | 1 | |
| 12-765 | MUFFLER (1/98 & after) | 1 | ||
|
10-12-765 | Глушитель | 28 420 ₽ |
|
| 55-6184 | STUD - muffler to manifold | 4 | ||
| 55-6183 | LOCKWASHER | 4 | ||
| 55-6186 | NUT | 4 | ||
| 55-2977 | SCREW (1/4-20 x 1) | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 6 | 11-6173 | TUBE - exhaust (TSA) | 1 | |
|
10-11-6173 | Труба выхлопная | 4 650 ₽ |
|
| 11-6291 | TUBE - exhaust (EMEIA) | 1 | ||
| 7 | 91-3140 | CLAMP - muffler | 1 | |
| 8 | 91-3141 | BRACKET - muffler | 1 | |
| 55-1587 | SCREW (1/4-20 x 3/4) | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 9 | 55-5571 | U-BOLT - oil bath air cleaner | 1 | |
| 55-4953 | NUT | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 10 | 91-1707 | BRACKET - air cleaner (TSA) | 1 | |
| 91-9208 | BRACKET - air cleaner (EMEIA) | 1 | ||
| 55-2977 | SCREW - bracket (1/4-20 x 1.0) | 1 | ||
| 55-1587 | SCREW - bracket (1/4-20 x .75) | 4 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-4953 | NUT | 5 | ||
| 11 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 12 | 91-1708 | BRACE - bracket | 1 | |
| 55-1857 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 |
