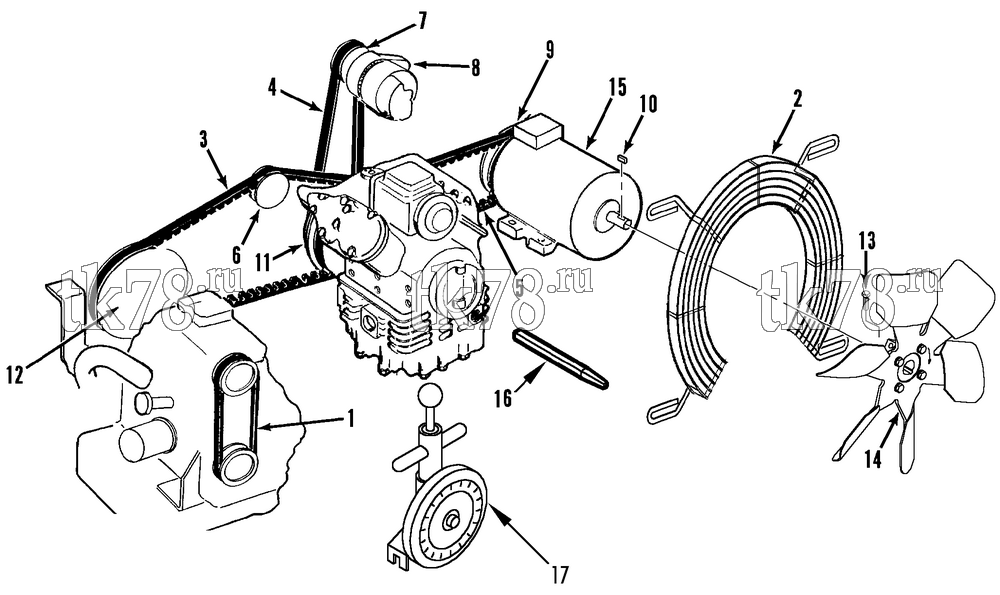

Установкa Thermo King RD-II TCI-Z EMEIA w/TK 3.95 Engine схема BELTS, PULLEYS & FAN GROUP – 134D4
Обновление от: 5/8/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1026 | BELT - water pump (see 132C10) | 1 | |
| 10-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 3 000 ₽ |
|
|
| PP-78-1026 | Ремень водяной помпы, Yanmar 395, RD/TD-II / URD-III / TS-500/600 | 1 260 ₽ |
|
|
| 2 | 98-3727 | GUARD - fan | 1 | |
| 55-2977 | SCREW - guard | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 3 | 78-1031 | BELT - engine to compressor to idler | 1 | |
| 10-78-1031 | Ремень компрессора, RD-II | 8 850 ₽ |
|
|
| PP-78-1031 | Ремень компрессора, RD-II | 5 110 ₽ |
|
|
| 4 | 78-429 | BELT - alternator | 1 | |
| 10-78-429 | Ремень вентилятора, XNWD | 2 050 ₽ |
|
|
| 5 | 78-899 | BELT - motor (jackshaft to compressor) | 1 | |
| 10-78-899 | Ремень электромотор/промвал - компрессор, RD-II | 12 930 ₽ |
|
|
| PP-78-899 | Ремень электромотор/промвал - компрессор, RD-II | 8 800 ₽ |
|
|
| 6 | 77-2431 | PULLEY - idler (see 90E6) | 1 | |
| 7 | 77-1924 | PULLEY - alternator (65 amp) | 1 | |
| 77-2220 | PULLEY - alternator (90 amp) | 1 | ||
| 8 | 44-9753 | ALTERNATOR (65 amp, see 134D5) | 1 | |
|
10-41-2196 | Генератор 65A, KD/MD/RD/TD-II / URD / SB-II/III | 22 650 ₽ |
|
| 44-9716 | ALTERNATOR (90 amp, see 134D5) | 1 | ||
| 10-45-1706 | Генератор 90A, URD | 43 600 ₽ |
|
|
| 9 | 77-2365 | PULLEY - motor | 1 | |
| 55-6220 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 10 | 55-4164 | KEY - motor pulley | 1 | |
| 11 | 77-2231 | PULLEY - compressor | 1 | |
| 55-9024 | KEY - pulley | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 55-4316 | SCREW - pulley | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 55-375 | LOCKWASHER | 1 | ||
| 77-2498 | SPACER - pulley | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 12 | 107-349 | CLUTCH (50 units, see 145F4) | 1 | |
|
10-107-349 | Сцепление, MD/RD/KD/T-Series | 98 400 ₽ |
|
|
PP-107-349 | Сцепление, MD/RD/KD/T-Series | 47 550 ₽ |
|
| 55-5022 | SCREW - clutch | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 13 | 55-2307 | SCREW - fan | 2 | |
| 78-1264 | FAN - condenser (8/99 & after, aluminum blades) | 1 | ||
| 55-7555 | KEY - fan | 1 | ||
| 15 | 104-468 | MOTOR (220-230-380-460/3/50-60) | 1 | |
| 77-1167 | BEARING | 2 | ||
| 16 | 204-972 | TOOL - keyway alignment | 1 | |
| 17 | 204-427 | GAUGE - belt tension | 1 |
