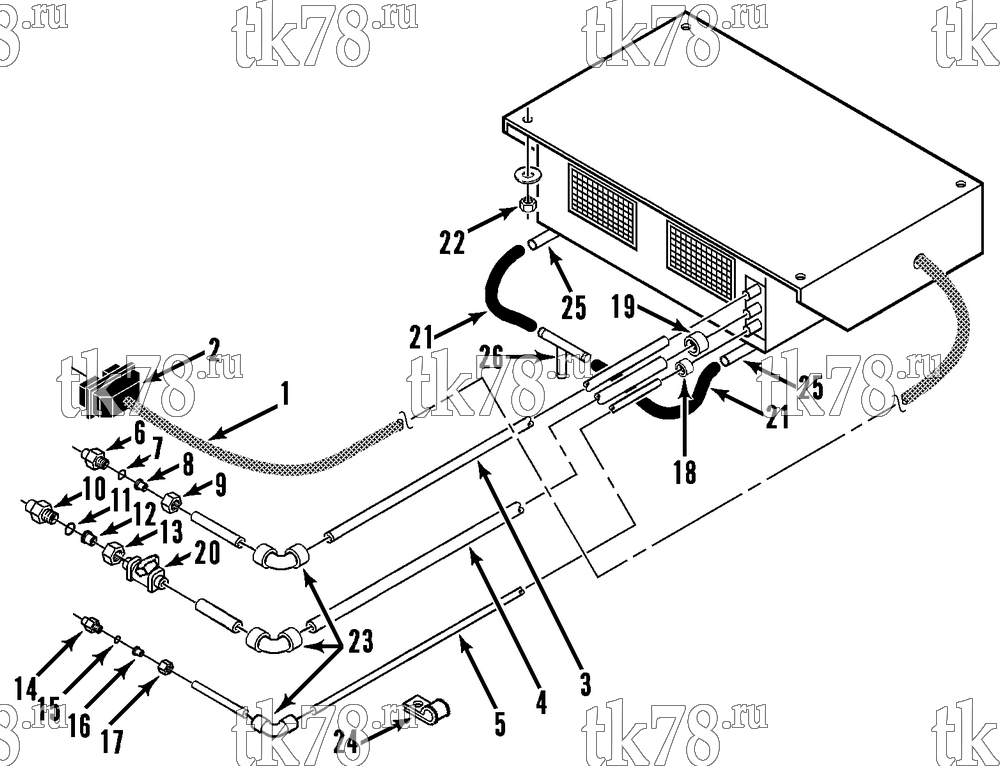

Установкa Thermo King RD-II TCI-Z EMEIA w/TK 3.95 Engine схема INSTALLATION COMPONENTS (ECT/EW 813306) – 116D10
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3361 | HARNESS - evaporator (TC) | 1 | |
| 2 | 44-8897 | RECEPTACLE | 1 | |
| 44-9587 | SOCKET - terminal | 12 | ||
| 44-9602 | SEAL - cavity | 12 | ||
| 41-1348 | HARNESS (TCI ERC, main to rear evaporator) | 1 | ||
| 44-9089 | CONNECTOR (24-pin) | 1 | ||
| 44-5814 | CONNECTOR (4-pin, female) | 1 | ||
| 44-6451 | CONNECTOR (1-pin, female) | 1 | ||
| 44-5234 | SENSOR - thermostat | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 44-5620 | CONNECTOR (2-pin, male) | 1 | ||
| 44-6381 | CONNECTOR (1-pin, female) | 1 | ||
| 41-1349 | HARNESS (TCI ERC, front to rear evaporator) | 1 | ||
| 44-8897 | PLUG (24-pin) | 1 | ||
| 44-9602 | SEAL - cavity | 8 | ||
| 44-5838 | CONNECTOR (see 115D14) | 1 | ||
| 44-5835 | CONNECTOR (see 115D14) | 1 | ||
| 3 | 67-925 | TUBE (5/8 x 25 ft) | 1 | |
| 4 | 67-1036 | TUBE (3/4 x 25 ft) | 1 | |
| 5 | 67-1037 | TUBE (3/8 x 25 ft) | 1 | |
| 6 | 55-6786 | ADAPTER - defrost | 1 | |
| 7 | 33-2115 | O-RING (5/8) | 1 | |
| 8 | 55-6356 | SHOULDER (5/8) | 1 | |
| 9 | 55-6396 | NUT - adapter | 1 | |
| 10 | 55-6354 | ADAPTER - suction | 1 | |
| 11 | 33-1222 | O-RING (3/4) | 1 | |
| 12 | 55-7162 | SHOULDER (3/4) | 1 | |
| 13 | 55-7054 | NUT | 1 | |
| 14 | 66-6036 | ADAPTER - liquid | 1 | |
| 15 | 33-1015 | O-RING (3/8) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 55-8268 | SHOULDER | 1 | |
| 17 | 55-8267 | NUT - adapter | 1 | |
| 18 | 55-3627 | COUPLING - reducing (5/8) | 1 | |
| 19 | 55-3680 | COUPLING - reducing (7/8) | 1 | |
| 20 | 66-6586 | VALVE - check (see 106C14) | 1 | |
| 21 | 91-5494 | HOSE - drain | 2 | |
| 22 | 55-3686 | NUT - unit | 4 | |
| 55-2038 | FLATWASHER | 4 | ||
| 55-5725 | WASHER - special | 4 | ||
| 23 | 55-2876 | ELBOW (3/8) | 2 | |
| 55-2187 | ELBOW (5/8) | 2 | ||
| 55-2244 | ELBOW (3/4) | 2 | ||
| 55-1122 | ELBOW (7/8 ftg) | 1 | ||
| 55-3248 | ELBOW (1/2) | 1 | ||
| 24 | 55-3741 | CLAMP (3/4) | A/R | |
| 55-4552 | CLAMP (1.0) | A/R | ||
| 55-2666 | CLAMP (1-3/8) | A/R | ||
| 55-6033 | SCREW - clamp | A/R | ||
| 25 | 99-6095 | PIPE - drain | 2 | |
| 55-2686 | CLAMP - tube | 4 | ||
| 26 | 55-6349 | TEE - hose connection | 1 |
