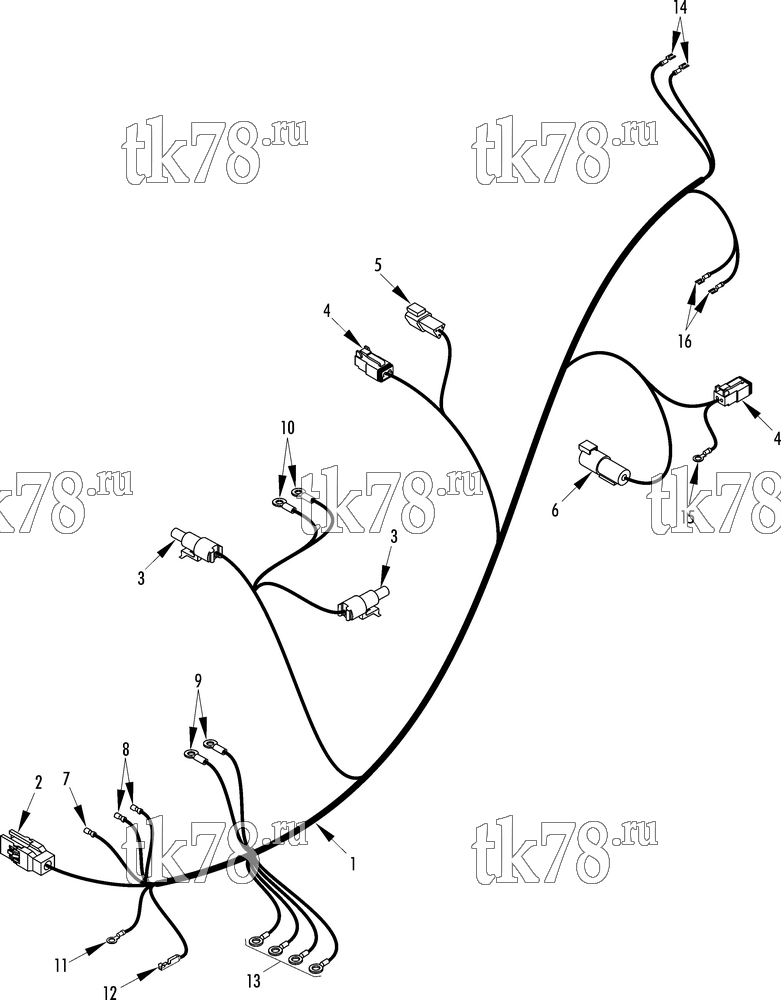

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема HARNESS ENGINE – 241H2
Обновление от: 12/18/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7188 | HARNESS - engine | 1 | |
| 2 | 41-2329 | CONNECTOR - receptacle (9 socket) | 1 | |
| 44-9928 | TERMINAL - pin (14-18 ga) | 8 | ||
| 41-1950 | STRAIN RELIEF - connector (9 position) | 1 | ||
| 3 | 41-4857 | PLUG (1-pin) | 2 | |
| 44-9836 | SOCKET (12-14 ga) | 2 | ||
| 4 | 44-9585 | PLUG (2-pin) | 2 | |
| 44-9593 | SOCKET (14-16 ga) | 4 | ||
| 44-9586 | WEDGE (2-pin) | 2 | ||
| 5 | 44-9631 | PLUG (3-pin) | 1 | |
| 44-9593 | SOCKET (14-16 ga) | 3 | ||
| 44-9536 | WEDGE (3-pin) | 1 | ||
| 6 | 41-3069 | CONNECTOR - receptacle (1-pin) | 1 | |
| 44-9593 | SOCKET (14-16 ga) | 1 | ||
| 7 | 41-5244 | TERMINAL - fingrip (10-12 ga) | 1 | |
| 8 | 41-5243 | TERMINAL - fingrip (14-16 ga) | 2 | |
| 9 | 41-281 | TERMINAL - ring (#6 red, 16-22 ga) | 2 | |
| 10 | 44-2791 | TERMINAL - ring (#10 blue, 14-16 ga) | 2 | |
| 11 | 41-9114 | TERMINAL - ring (#10 red, 8 ga) | 1 | |
| 12 | 55-7702 | TERMINAL - fingrip (16-18 ga) | 1 | |
| 13 | 44-2789 | TERMINAL - ring (1/4 blue, 14-16 ga) | 4 | |
| 14 | 41-9249 | TERMINAL - fork (#10 blue, 14-16 ga) | 2 | |
| 15 | 44-2786 | TERMINAL - ring (3/8 blue, 14-16 ga) | 1 | |
| 16 | 41-9022 | TERMINAL - fork (#8 blue, 14-16 ga) | 2 |
