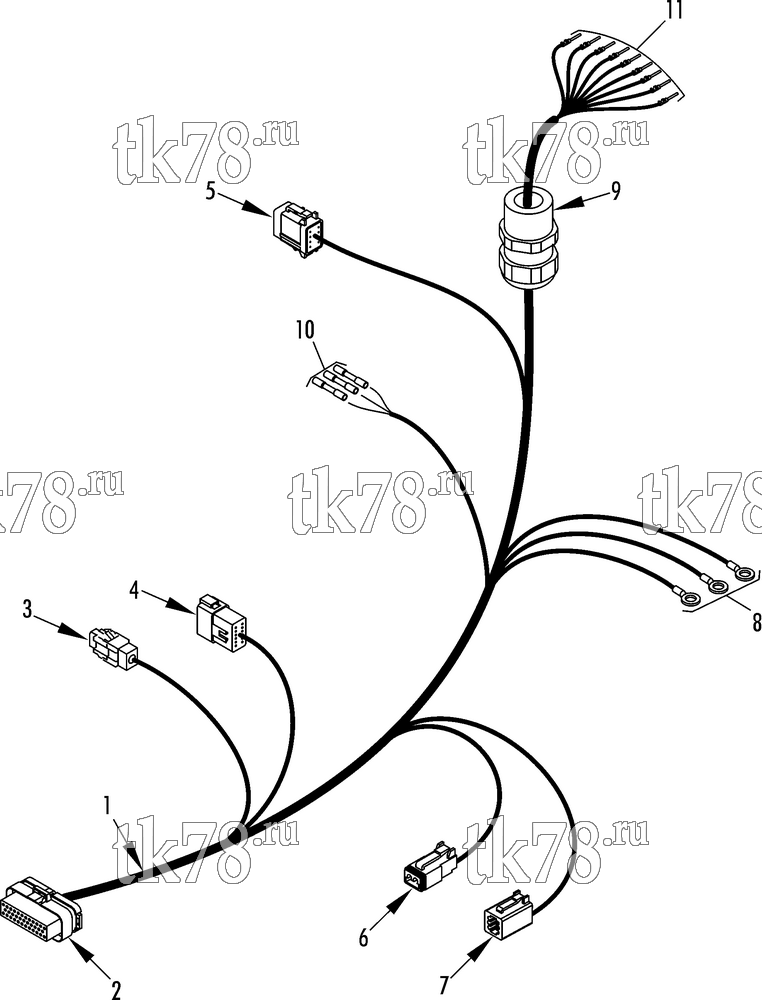

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема HARNESS MAIN (TSA) – 241H1
Обновление от: 5/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5327 | HARNESS - main | 1 | |
| 2 | 41-3359 | PLUG - 35-pin | 1 | |
| 41-2457 | SOCKET (18 ga) | 29 | ||
| 3 | 41-3882 | PLUG - 6-pin | 1 | |
| 44-8539 | SOCKET (18 ga) | 6 | ||
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 4 | 44-9904 | RECEPTACLE - 12-pin | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 12 | ||
| 44-9905 | WEDGE - 12-pin | 1 | ||
| 5 | 41-9239 | CONNECTOR - 8-pin | 1 | |
| 41-9241 | SOCKET - gold (16-20 awg) | 8 | ||
| 41-9240 | WEDGE - 8-pin | 1 | ||
| 6 | 44-9585 | CONNECTOR - 2-pin | 1 | |
| 44-9587 | SOCKET (18 ga) | 2 | ||
| 44-9586 | WEDGE - 2-pin | 1 | ||
| 7 | 44-8935 | CONNECTOR - 4-pin | 1 | |
| 44-9587 | SOCKET (18 ga) | 4 | ||
| 44-8936 | WEDGE - 4-pin | 1 | ||
| 8 | 44-2791 | TERMINAL - ring (#10 blue, 14-16 ga) | 3 | |
| 9 | 55-6742 | CONNECTOR - liquid tite | 1 | |
| 10 | 41-124 | TERMINAL - splice (18-22 ga) | 3 | |
| 11 | 44-9591 | TERMINAL - pin (18 ga) | 9 | |
| 55-2332 | BANDWRAP (.75 dia) | 1 |
