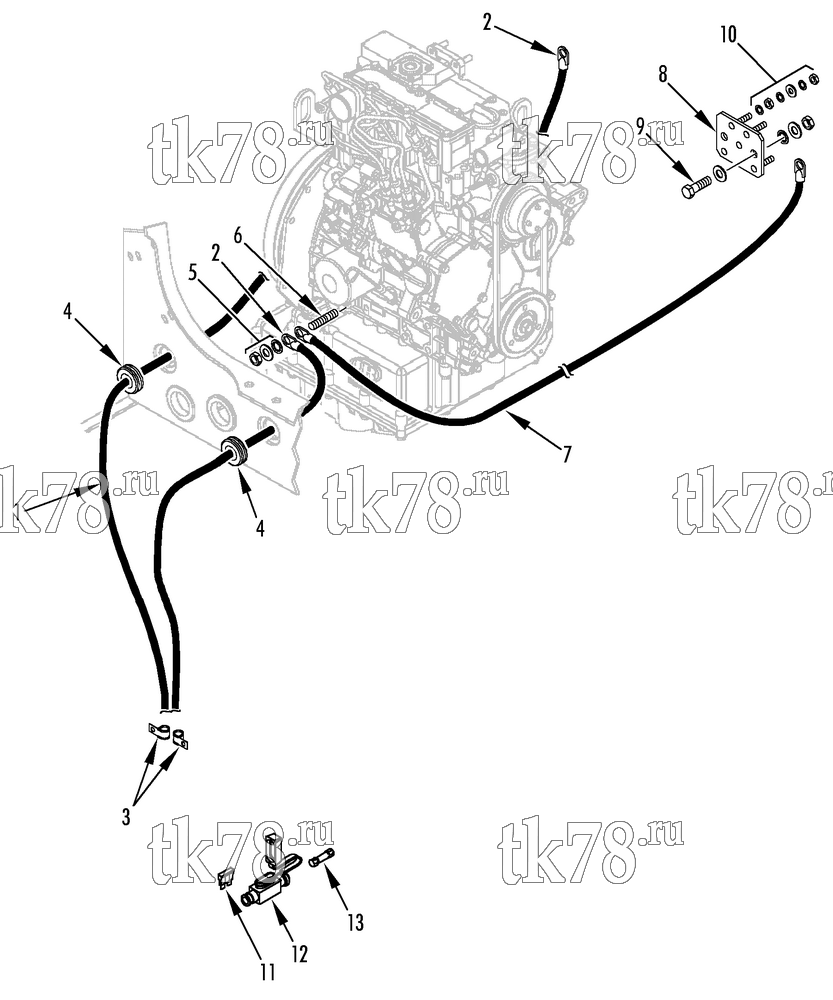

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема BATTERY CABLES & FUSE LINK (SR UNITS) – 220B3
Обновление от: 6/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-429 | CABLE - battery (45 ft) | 1 | |
| 41-8597 | CABLE - battery (21 ft) | 2 | ||
| 2 | 41-8598 | TERMINAL - battery cable | 2 | |
| 3 | 55-549 | CLAMP | 8 | |
| 55-5641 | SCREW - clamp | 8 | ||
| 4 | 33-572 | GROMMET | 2 | |
| 5 | 55-3300 | NUT | 2 | |
| 5 | 55-2363 | LOCKWASHER | 4 | |
| 55-3996 | LOCKWASHER (internal tooth) | 1 | ||
| 6 | 51-1614 | STUD - ground | 1 | |
| 7 | 41-1943 | CABLE - ground | 1 | |
| 8 | 91-7753 | PLATE - ground | 1 | |
| 9 | 55-2683 | SCREW - ground | 2 | |
| 55-2641 | FLATWASHER | 2 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 4 | ||
| 55-3300 | NUT | 2 | ||
| 10 | 55-3472 | NUT - ground (1/4-20) | 10 | |
| 55-2993 | LOCKWASHER (internal tooth) | 15 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 11 | 41-3666 | FUSE (60 amp) | 1 | |
| 12 | 41-3665 | FUSE HOLDER | 1 | |
| 13 | 41-3408 | TERMINAL - splice | 1 |
