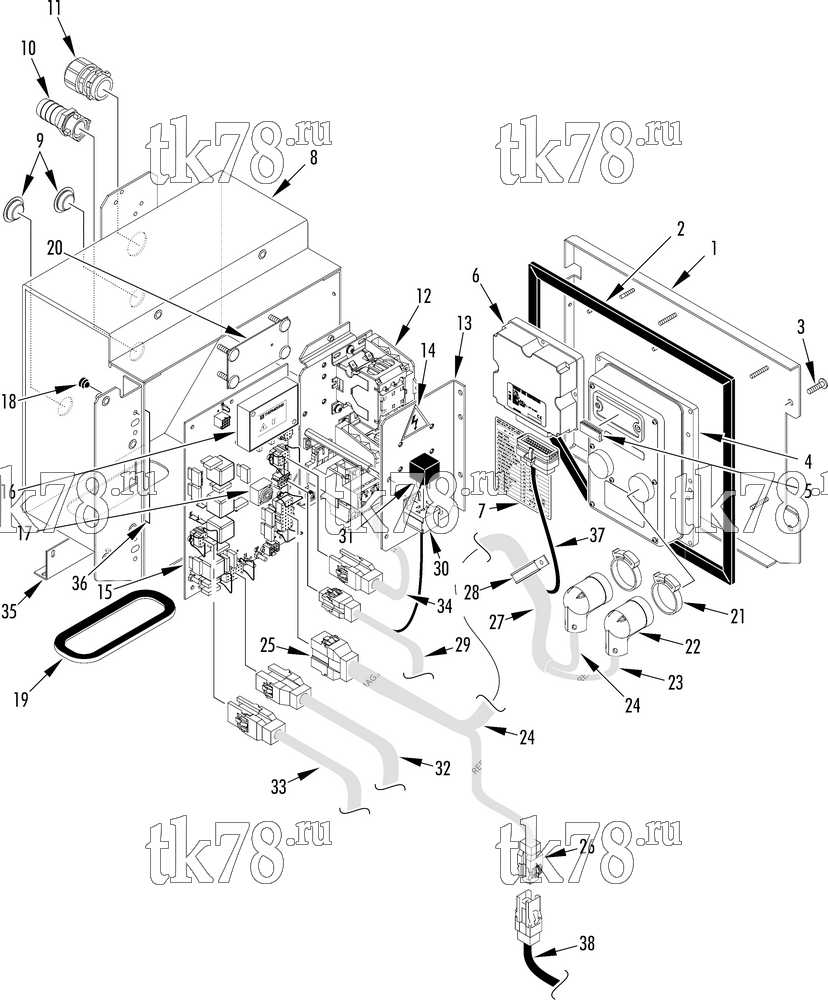

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема CONTROL BOX – 213A9
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COVER - control box (see 213A0) | 1 | |
| 55-8711 | INSERT - threaded (1/4-20) | 8 | ||
| 55-8752 | INSERT - threaded (10-32) | 3 | ||
| 2 | 33-2914 | GASKET - cover | 1 | |
| 3 | 55-6536 | SCREW & WASHER - cover | 2 | |
| 55-4510 | WASHER - retaining | 2 | ||
| 55-3059 | NUT - captive | 2 | ||
| 4 | 45-2431 | CONTROLLER (MP-T) | 1 | |
| 845-2431 | CONTROLLER (MP-T, reman) | 1 | ||
| 55-2965 | NUT - controller | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 5 | 40-962 | KIT - eprom chip | 1 | |
| 6 | 45-2247 | DATALOGGER - DAS IV | 2 | |
| 55-2965 | NUT - datalogger | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 7 | 91-7759 | NAMEPLATE - Setup Codes | 1 | |
| 92-5140 | NAMEPLATE - Alarm | 1 | ||
| 8 | 98-5098 | BOX - control | 1 | |
| 9 | 55-6010 | PLUG - button | 2 | |
| 10 | 55-9986 | FITTING - barb | 1 | |
| 11 | 55-5919 | CONNECTOR - harness grip | 1 | |
| 12 | NSS | TRAY - high voltage (see 136D14) | 1 | |
| 55-2995 | SCREW - tray | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 13 | 91-7756 | SHIELD - high voltage tray | 1 | |
| 55-3027 | SCREW - shield | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 14 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 15 | 45-2219 | BOARD - pc interface (see 209C1) | 1 | |
| 16 | 42-792 | SELECTOR - phase (230/380/460V) | 1 | |
| 17 | 41-8291 | BUZZER - warning | 1 | |
| 55-3015 | SCREW - board | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 18 | 33-1808 | GROMMET - bumper | 4 | |
| 19 | 92-3024 | EXTRUSION - rubber | A/R | |
| 20 | 91-7755 | PLATE - stud | 1 | |
| 21 | 55-7618 | CLAMP | 2 | |
| 22 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 23 | 41-7189 | HARNESS - sensor | 1 | |
| 41-744 | PLUG - controller (19-pin) | 1 | ||
| 44-9928 | PIN (18 gauge) | A/R | ||
| 24 | 41-1944 | HARNESS - interconnect | 1 | |
| 41-745 | PLUG - controller (37-pin) | 1 | ||
| 25 | 41-1946 | RECEPTACLE (36-pin) | 1 | |
| 41-1947 | STRAIN RELIEF - connector (36-pin) | 1 | ||
| 41-182 | TERMINAL - pin | 1 | ||
| 44-8539 | SOCKET | A/R | ||
| 26 | 41-3882 | CONNECTOR - cab box harness | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 27 | 92-3030 | SLEEVING - harness | 1 | |
| 28 | 55-3234 | CLAMP - sleeving | 1 | |
| 55-2965 | NUT - clamp | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 29 | 41-5441 | HARNESS - switch | 1 | |
| 41-2321 | CONNECTOR - plug (9 socket) | 1 | ||
| 41-1950 | STRAIN RELIEF - connector (9 position) | 1 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 30 | 44-5537 | SOCKET - relay | 1 | |
| 41-4350 | TERMINAL | 5 | ||
| 55-3029 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 21 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 31 | 41-895 | RELAY (1 pdt) | 1 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 32 | 41-5439 | HARNESS - condenser (see 241C9) | 1 | |
| 41-2320 | RECEPTACLE (18-pin) | 1 | ||
| 41-1951 | STRAIN RELIEF - connector (18 position) | 1 | ||
| 44-9928 | PIN - receptacle | 12 | ||
| 44-2792 | TERMINAL - ground | 1 | ||
| 33 | 41-7188 | HARNESS - engine | 1 | |
| 41-2329 | CONNECTOR (9-pin) | 1 | ||
| 41-1950 | STRAIN RELIEF - connector (9 position) | 1 | ||
| 34 | 41-5464 | HARNESS (50) | 1 | |
| 41-2319 | CONNECTOR (12-pin) | 1 | ||
| 41-1952 | STRAIN RELIEF - connector (12 position) | 1 | ||
| 44-9928 | PIN - connector | 6 | ||
| 44-9888 | PIN - overload relay | 2 | ||
| 35 | 91-7757 | SUPPORT - control box | 1 | |
| 91-4053 | BOLTSTRIP | 1 | ||
| 36 | 92-5141 | NAMEPLATE - Relay (ID) | 1 | |
| 92-6746 | NAMEPLATE - Relay (ID) | 1 | ||
| 37 | 41-3092 | HARNESS - DAS (see 241C0) | 1 | |
| 44-9600 | CONNECTOR (12-pin, see 112D9) | 2 | ||
| 38 | 41-2308 | HARNESS - cab box | 1 |
