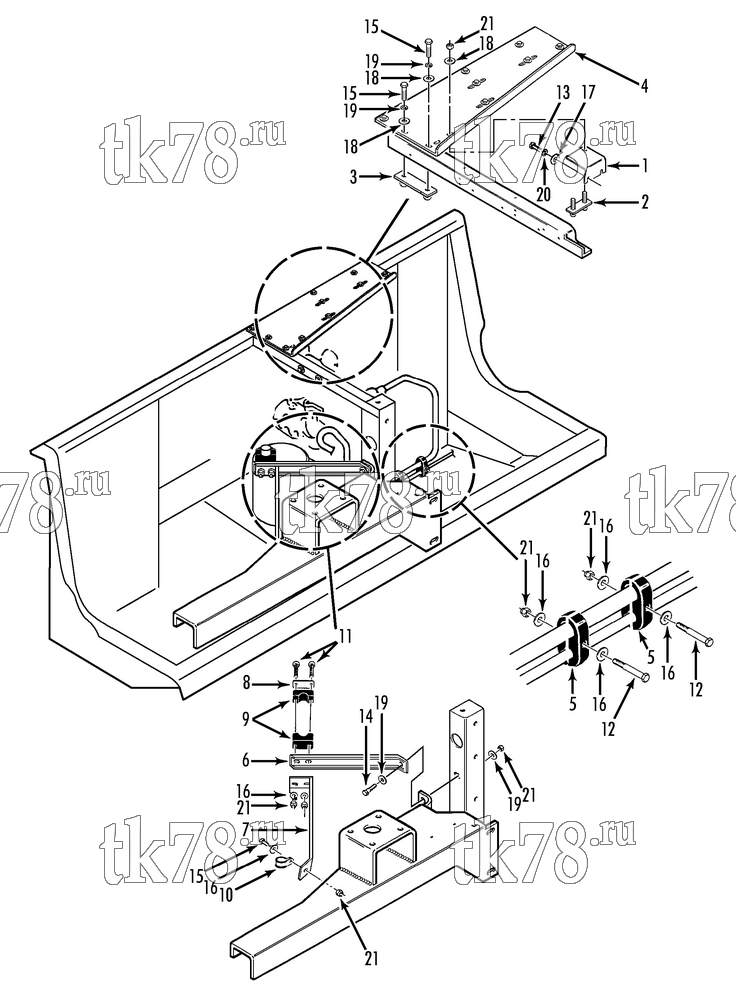

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема REFRIGERATION COMPONENT MOUNTING BRACKETS (before 6/09) – 213A5
Обновление от: 11/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7843 | BRACKET - compressor support | 1 | |
| 2 | 91-6522 | BOLTSTRIP | 1 | |
| 3 | 99-3337 | NUTSTRIP | 1 | |
| 4 | 91-5142 | BRACKET - alternator | 1 | |
| 5 | 91-3171 | CLAMP - tube | 4 | |
| 6 | 91-5144 | BRACKET - accumulator support | 1 | |
| 7 | 91-5138 | BRACKET - accumulator support | 1 | |
| 8 | 91-3157 | PLATE - reinforcement | 1 | |
| 9 | 91-5143 | CLAMP - tube | 2 | |
| 10 | 55-3026 | CLAMP - hose | 1 | |
| 11 | 55-4811 | SCREW (1/4-20 x 2-1/2) | 4 | |
| 12 | 55-3675 | SCREW (1/4-20 x 1-3/4) | 2 | |
| 13 | 55-3490 | SCREW (5/16-18 x 1-1/2) | 2 | |
| 14 | 55-2977 | SCREW (1/4-20 x 1) | 1 | |
| 15 | 55-1587 | SCREW (1/4-20 x 3/4) | 2 | |
| 16 | 55-2086 | FLATWASHER (1/4) | 11 | |
| 17 | 55-2958 | FLATWASHER (5/16) | 2 | |
| 18 | 55-2945 | WASHER - special | 2 | |
| 19 | 55-1800 | LOCKWASHER (1/4) | 2 | |
| 20 | 55-2959 | LOCKWASHER (5/16) | 2 | |
| 21 | 55-4953 | LOCKNUT | 9 |
