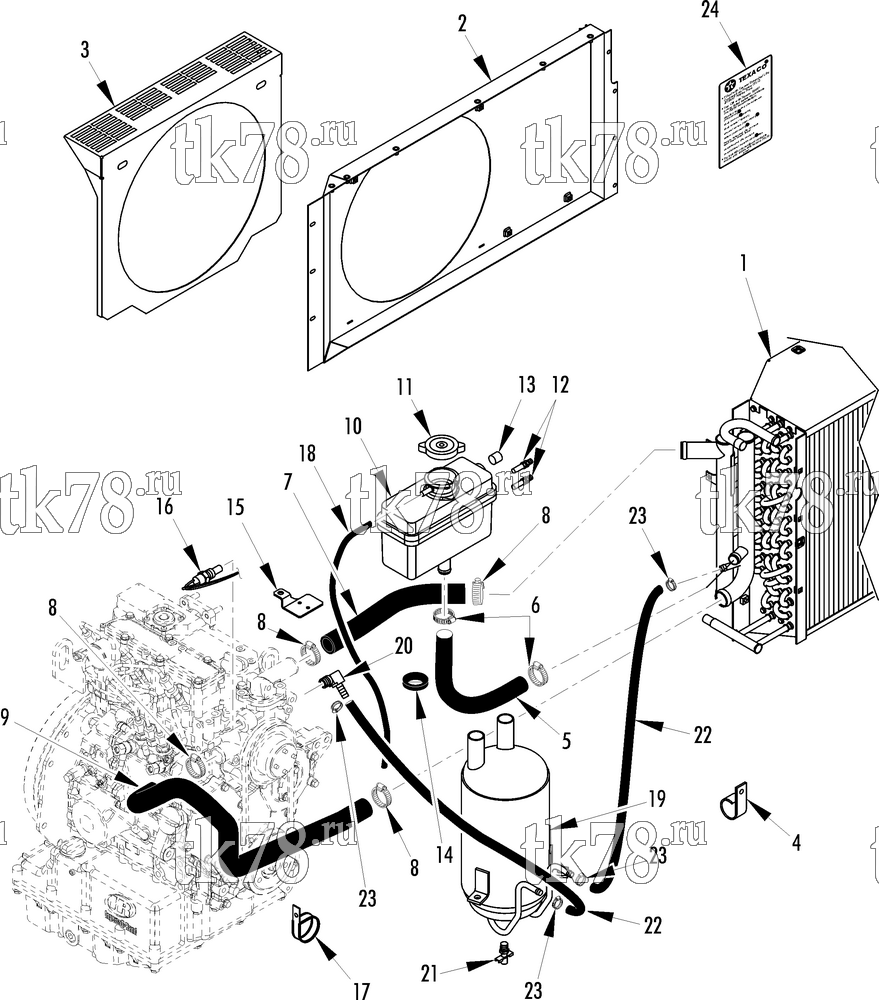

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема ENGINE COOLING SYSTEM – 213A4
Обновление от: 12/22/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2197 | COIL - condenser/radiator | 1 | |
| 55-1587 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 2 | 98-3725 | PLENUM - condenser (before 7/06) | 1 | |
| 98-8165 | PLENUM - condenser (7/06 & after) | 1 | ||
| 55-8711 | INSERT - threaded | 6 | ||
| 55-3059 | NUT - captive | 4 | ||
| 55-2957 | SCREW - plenum | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 98-3726 | ORIFICE - condenser fan | 1 | |
| 55-2977 | SCREW - orifice | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 4 | 55-6388 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 98-935 | HOSE - overflow tank to radiator (EPDM, cut to 15 in) | 1 | |
| 12-538 | HOSE - overflow tank to radiator (silicone, cut to 15 in) | 1 | ||
| 6 | 55-2069 | CLAMP - hose (EPDM) | 2 | |
| 55-6731 | CLAMP - hose (silicone) | 2 | ||
| 7 | 13-731 | HOSE - engine to radiator (upper, EPDM) | 1 | |
| 13-735 | HOSE - engine to radiator (upper, silicone) | 1 | ||
| 8 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 9 | 13-732 | HOSE - radiator to engine (lower, EPDM) | 1 | |
| 13-736 | HOSE - radiator to engine (lower, silicone) | 1 | ||
| 10 | 12-826 | TANK - expansion | 1 | |
| 55-2977 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 11 | 11-9242 | CAP - tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 12 | 44-6534 | SENSOR - water level | 2 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 203-385 | SEALER - thread | A/R | ||
| 13 | 55-8653 | ELBOW - hose | 1 | |
| 14 | 33-489 | GROMMET (1.25 od) | 1 | |
| 15 | 92-5570 | PLATE - sensor | 1 | |
| 16 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 8 970 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 720 ₽ |
|
| 17 | 55-2666 | CLAMP - hose | 1 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 1 | ||
| 18 | 98-771 | HOSE - overflow (100 in) | A/R | |
| 19 | 67-1371 | TANK - accumulator | 1 | |
| 55-2683 | SCREW - tank | 3 | ||
| 55-7122 | WASHER | 3 | ||
| 55-2640 | NUT | 3 | ||
| 20 | 55-9091 | ELBOW - hose | 1 | |
| 55-1658 | FITTING - restriction | 1 | ||
| 21 | 55-5094 | COCK - drain | 1 | |
| 22 | 11-8041 | HOSE - hose (3/8 id x 8.5) | A/R | |
| 23 | 55-2069 | CLAMP - hose | 4 | |
| 24 | 91-9269 | NAMEPLATE - coolant | 1 |
