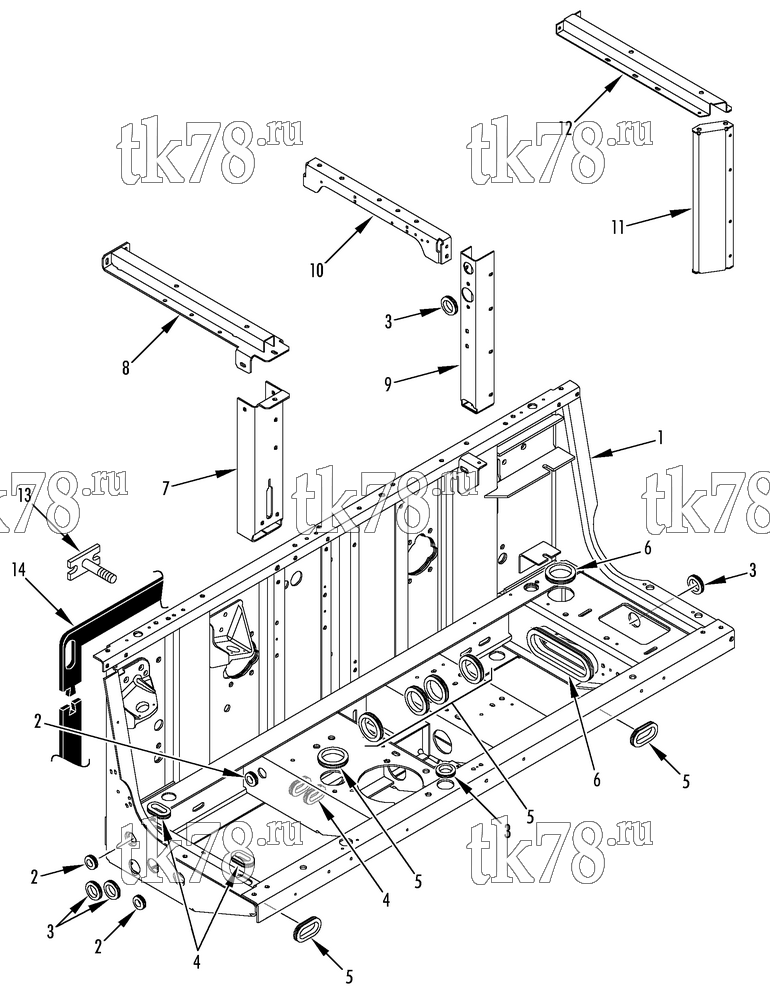

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема FRAME GROUP – 213A1
Обновление от: 2/16/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7431 | FRAME - condenser | 1 | |
| 55-8978 | INSERT - threaded (3/8-16) | 3 | ||
| 55-8979 | INSERT - threaded (1/4-20) | 36 | ||
| 55-8798 | INSERT - threaded (10-32) | 4 | ||
| 2 | 33-572 | GROMMET (0.750 id) | 3 | |
| 3 | 33-489 | GROMMET (1.250 id) | 4 | |
| 4 | 33-624 | GROMMET (1-1/2 id) | 2 | |
| 5 | 33-623 | GROMMET (2-1/8 id) | 2 | |
| 6 | 33-2976 | GROMMET - special | 3 | |
| 7 | 92-5560 | BRACKET - filter | 1 | |
| 8 | 92-5561 | BRACKET - fuel filter | 1 | |
| 9 | 92-5558 | MEMBER - condenser coil | 1 | |
| 10 | 92-5559 | SUPPORT - condenser | 1 | |
| 11 | 92-5597 | BRACKET - condenser coil | 1 | |
| 12 | 91-7811 | SUPPORT - condenser | 1 | |
| 55-2977 | SCREW - bracket, member & supports | A/R | ||
| 55-1800 | LOCKWASHER | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 13 | 99-214 | BOLT - T (unit mount) | 4 | |
| 55-5234 | WASHER | 4 | ||
| 55-3686 | NUT | 4 | ||
| 14 | 30-231 | KIT - sill gasket | 1 |
