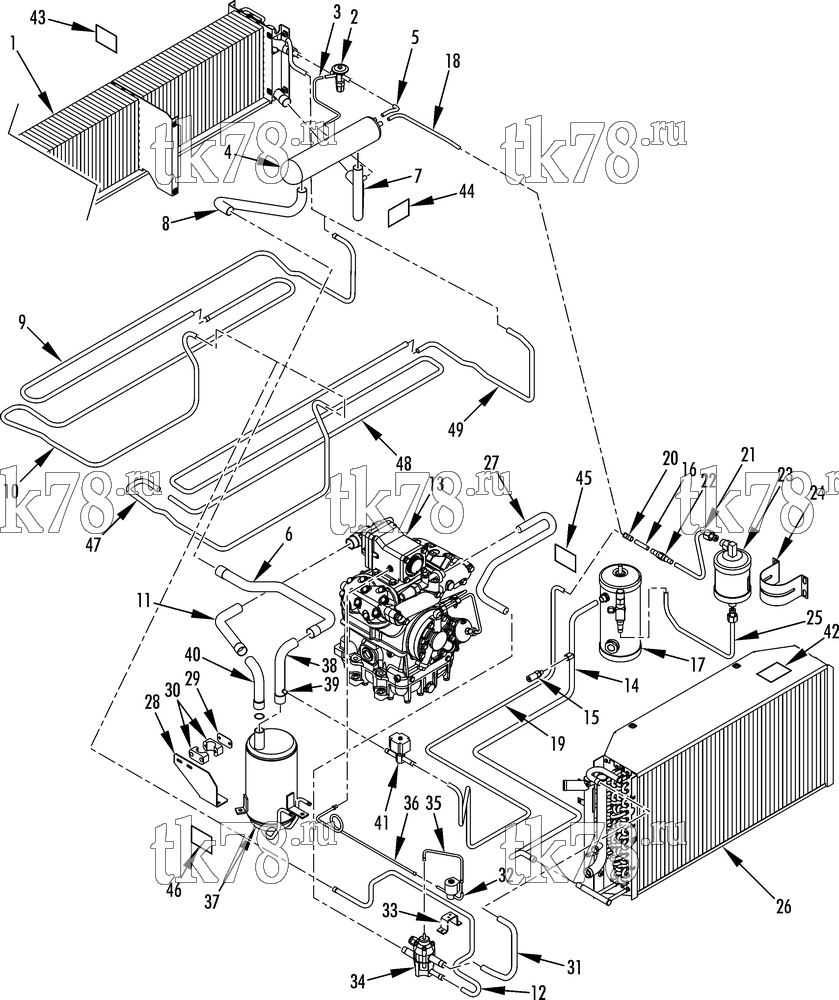

Установкa Thermo King RD-II SR w/TK 3.76 Engine схема REFRIGERATION COMPONENTS – 137C6
Обновление от: 12/17/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1344 | COIL - evaporator (see 131B10) | 1 | |
| 2 | 66-8284 | VALVE - expansion (R403B, R404A, R502) | 1 | |
|
10-66-8284 | Клапан, TS, RD. TD | 34 430 ₽ |
|
| 66-6047 | SCREEN - inlet | 1 | ||
| 66-3650 | ELEMENT - power | 1 | ||
| 66-8301 | VALVE - expansion (R12, R134a) | 1 | ||
| 66-7979 | ELEMENT - power | 1 | ||
| 203-534 | TAPE - insulating | A/R | ||
| 3 | 66-8291 | TUBE - equalizer | 1 | |
| 4 | 67-1402 | HEAT EXCHANGER (incl 5, 7 & 8) | 1 | |
| 5 | 66-8566 | TUBE - exchanger to expansion valve | 1 | |
| 6 | 66-5490 | TUBE - exchanger to accumulator | 1 | |
| 7 | 66-8567 | TUBE - suction inlet | 1 | |
| 66-5752 | FITTING | 1 | ||
| 8 | 66-5465 | TUBE - suction outlet | 1 | |
| 9 | 66-8287 | TUBE - defrost (roadside, before 6/09) | 1 | |
| 10 | 66-5455 | TUBE - defrost (curbside, before 6/09) | 1 | |
| 11 | 66-8255 | TUBE - accumulator to valve | 1 | |
| 12 | 66-5484 | TUBE - 3-way to evaporator | 1 | |
| 13 | NSS | COMPRESSOR - X426 C5 (see Compressor Group) | 1 | |
| 14 | 66-8568 | TUBE - condenser coil to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 16 | 66-6135 | TUBE | 1 | |
| 17 | 67-1180 | TANK - receiver (see 125F4) | 1 | |
| 18 | 66-8289 | TUBE - tee to bulkhead | 1 | |
| 19 | 66-8569 | TUBE - tee to heat solenoid | 1 | |
| 20 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 21 | 66-8570 | TUBE - dehydrator to valve | 1 | |
| 22 | 66-5763 | VALVE - check (see 9G12) | 1 | |
| 23 | 61-800 | DEHYDRATOR (see 112B1) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 33-1015 | O-RING | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 24 | 91-7602 | HANGER - dehydrator | 1 | |
| 25 | 66-8571 | TUBE - receiver to dehydrator | 1 | |
| 26 | 67-2197 | COIL - condenser/radiator | 1 | |
| 27 | 66-7052 | TUBE - discharge to 3-way | 1 | |
| 28 | 91-8388 | BRACKET - solenoid | 1 | |
| 29 | 91-3157 | CLAMP - solenoid | 1 | |
| 30 | 91-2473 | CLAMP - tube | 1 | |
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 31 | 66-5483 | TUBE - 3-way to condenser | 1 | |
| 32 | 66-8560 | VALVE - pilot solenoid | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL - valve | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 33 | 99-9828 | SUPPORT - pilot solenoid | 1 | |
| 55-2991 | SCREW - support | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 99-9806 | NUTSTRIP | 1 | ||
| 34 | 61-1236 | VALVE - 3-way (see 111G2) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 35 | 66-6050 | TUBE - solenoid to 3-way | 1 | |
| 36 | 92-5572 | TUBE - solenoid to throttling valve | 1 | |
| 37 | 67-1398 | TANK - accumulator (incl 38, 39 & 40, see 136G14 for TK3.95 engine & 213A4 for TK3.76 engine) | 1 | |
| 38 | 66-6017 | TUBE - accumulator inlet | 1 | |
| 39 | 55-7068 | FITTING | 1 | |
| 40 | 66-7077 | TUBE - valve to accumulator outlet | 1 | |
| 41 | 61-283 | VALVE - solenoid (see 138A11) | 1 | |
| 41-3681 | COIL - valve | 1 | ||
| 41-3681 OEM | Катушка соленоида | 24 630 ₽ |
|
|
|
10-41-3681 | Катушка соленоида 12V | 12 220 ₽ |
|
| 55-3027 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 42 | 91-3403 | NAMEPLATE - pressure vessel | 1 | |
| 43 | 91-3940 | NAMEPLATE - pressure vessel | 1 | |
| 44 | 91-3482 | NAMEPLATE - pressure vessel | 1 | |
| 45 | 91-7419 | NAMEPLATE - pressure vessel | 1 | |
| 46 | 91-7420 | NAMEPLATE - pressure vessel | 1 | |
| 47 | 61-4970 | TUBE - defrost (curbside, after 6/09) | 1 | |
| 48 | 61-4424 | TUBE - defrost (center, after 6/09) | 1 | |
| 49 | 61-4971 | TUBE - defrost (roadside, after 6/09) | 1 |
