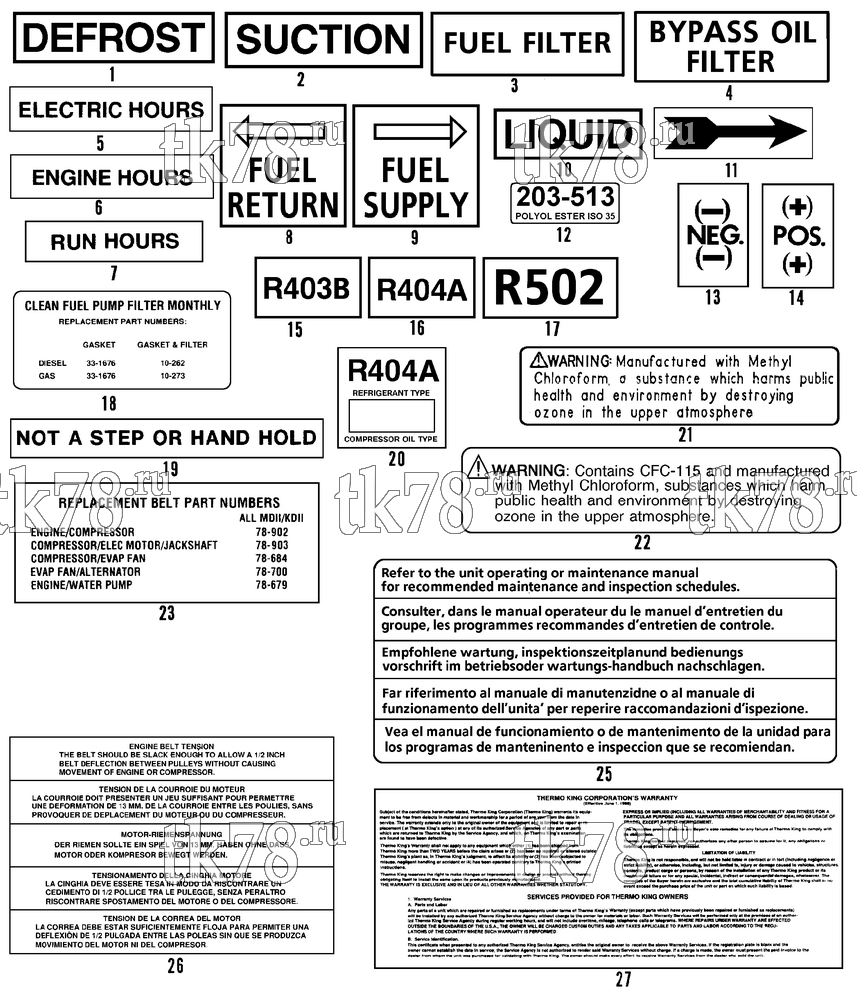

Установкa Thermo King RD-II 50 TCI-Z схема NAMEPLATES – 121C12
Обновление от: 4/6/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-4595 | NAMEPLATE - Defrost | 1 | |
| 2 | 99-3037 | NAMEPLATE - Suction | 1 | |
| 3 | 99-9525 | NAMEPLATE - Fuel Filter | 1 | |
| 4 | 99-9526 | NAMEPLATE - Bypass Oil Filter | 1 | |
| 5 | 91-4810 | NAMEPLATE - Electric hours | 1 | |
| 6 | 91-4809 | NAMEPLATE - Engine hours | 1 | |
| 7 | 91-4811 | NAMEPLATE - Run hours | 1 | |
| 8 | 91-4034 | NAMEPLATE - Fuel Return | 1 | |
| 9 | 91-4035 | NAMEPLATE - Fuel Supply | 1 | |
| 10 | 99-3036 | NAMEPLATE - Liquid | 1 | |
| 11 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 12 | 92-324 | NAMEPLATE - Compressor Oil 203-513 | 1 | |
| 13 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 14 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 15 | 91-5879 | NAMEPLATE - R403B | 1 | |
| 16 | 91-5882 | NAMEPLATE - R404A | 1 | |
| 17 | 99-3247 | NAMEPLATE - R502 | 1 | |
| 18 | 91-8860 | NAMEPLATE - Clean Fuel Pump | 1 | |
| 19 | 99-9815 | NAMEPLATE - Not A Step | 1 | |
| 20 | 91-5886 | NAMEPLATE - Refrigerant R404A | 1 | |
| 21 | 91-5294 | NAMEPLATE - Warning, Methyl Chloroform | 1 | |
| 22 | 91-5252 | NAMEPLATE - Warning, CFC-115 | 1 | |
| 23 | 91-1320 | NAMEPLATE - Belts | 1 | |
| 24 | Not Used | |||
| 25 | 99-8509 | NAMEPLATE - Maintenance | 1 | |
| 26 | 99-9954 | NAMEPLATE - Belt Tension | 1 | |
| 27 | 99-4806 | NAMEPLATE - Warranty | 1 |
