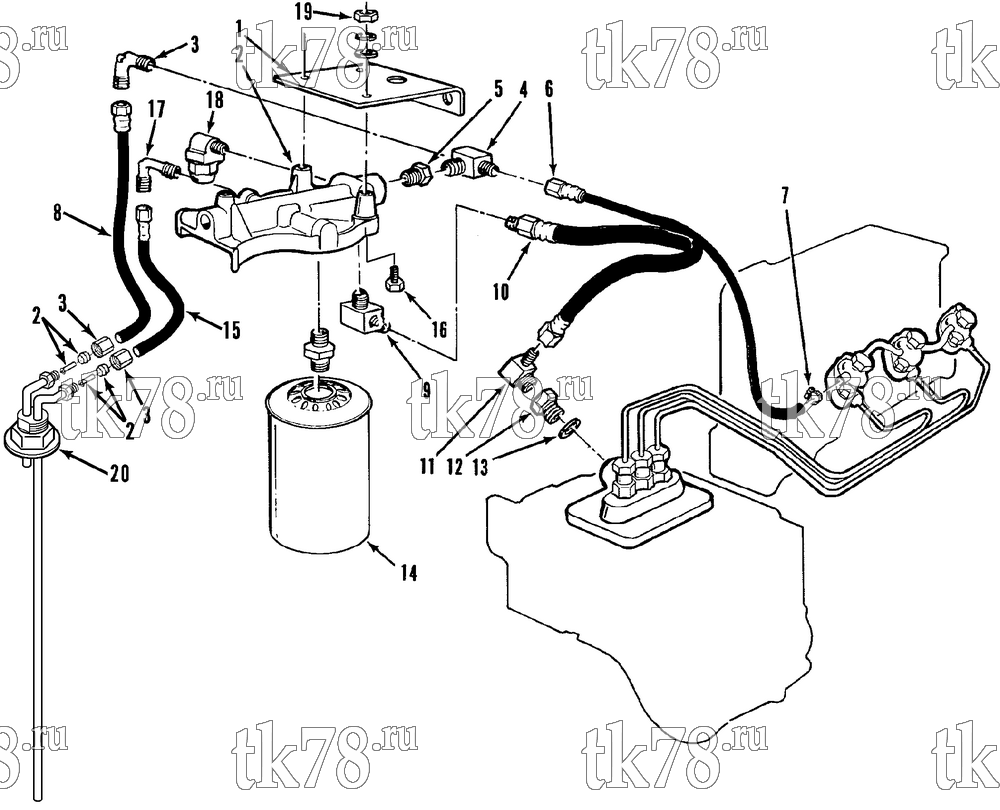

Установкa Thermo King RD-I TC схема FUEL FILTER & HOSES – 89F7
Обновление от: 4/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-8803 | SHIELD - heat (fuel) | 1 | |
| 2 | 11-6529 | BRACKET - filter | 1 | |
| 55-3168 | ADAPTER - fuel pickup | 1 | ||
| 3 | 55-5320 | ELBOW | 1 | |
| 4 | 55-1654 | TEE | 1 | |
| 5 | 55-4799 | BUSHING - restrictor | 1 | |
| 6 | 11-5228 | HOSE - injector to tee | 1 | |
| 7 | 55-2796 | CLAMP - hose | 1 | |
| 8 | 11-4367 | HOSE - fuel return (1/4 od x 35 ft lg) | A/R | |
| 10-243 | KIT - sleeve & eyelet (1/4) | 1 | ||
| 11-4841 | NUT - fuel hose (1/4) | 1 | ||
| 9 | 55-4244 | ELBOW | 1 | |
| 10 | 11-5229 | HOSE - filter to injection pump | 1 | |
| 11 | 55-3331 | ADAPTER - hose | 1 | |
| 12 | 11-5222 | ADAPTER - fuel inlet | 1 | |
| 13 | 33-1531 | GASKET | 1 | |
| 14 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 15 | 11-4372 | HOSE - tank to unit (3/8 od x 35 ft lg) | A/R | |
| 10-242 | KIT - sleeve & eyelet (3/8) | 1 | ||
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT - fuel line (3/8) | 1 | ||
| 16 | 55-2962 | SCREW - filter bracket (1-3/4 lg) | 3 | |
| 55-3565 | SCREW - filter bracket (2.0 lg) | 1 | ||
| 17 | 55-4380 | ELBOW | 1 | |
| 18 | 55-1983 | CAP | 1 | |
| 33-768 | GASKET - cap | 1 | ||
| 55-549 | ADAPTER | 1 | ||
| 55-2505 | ELBOW | 1 | ||
| 19 | 55-2958 | FLATWASHER | 3 | |
| 55-4954 | NUT | 3 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 20 | 11-9279 | TUBE - fuel pickup | 1 | |
| 33-4402 | GASKET - fuel pickup (rubber) | 1 |
