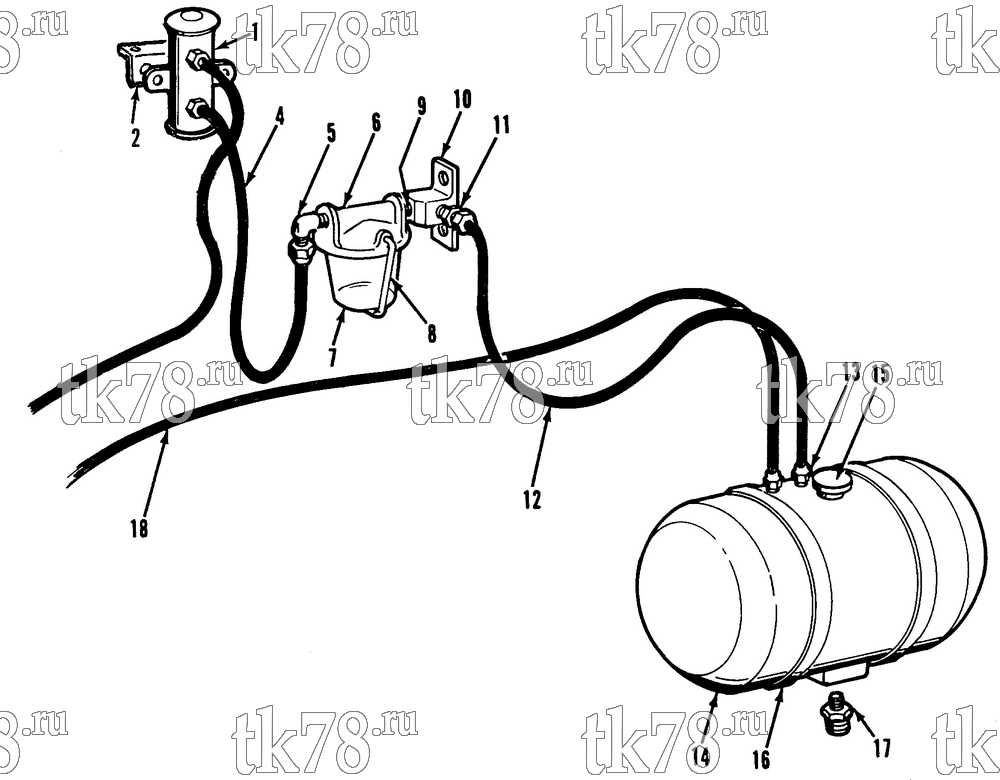

Установкa Thermo King RD-I SSIV схема FUEL TANK & PUMP GROUP – 74B9
Обновление от: 2/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 450 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 8 390 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 7 920 ₽ |
|
| 11-4702 | FILTER - fuel pump | 1 | ||
| 11-4380 | ELBOW - pump | 2 | ||
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 92-5656 | BRACKET - fuel pump | 2 | |
| 55-214 | SCREW - pump | 4 | ||
| 55-2699 | LOCKWASHER | 4 | ||
| 55-916 | NUT | 4 | ||
| 3 | 11-4781 | HOSE - pump to unit (180.0 in lg) | 1 | |
| 4 | 11-4780 | HOSE - pump to tank (38.0 in lg) | 1 | |
| 11-4372 | HOSE - tank to unit (3/8 od x 35 ft lg) | A/R | ||
| 11-4941 | NUT - fuel line (3/8) | A/R | ||
| 11-4380 | ELBOW - tank (3/8) | 1 | ||
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 5 | 55-308 | ELBOW | 1 | |
| 6 | 11-4956 | HEAD - filter | 1 | |
| 11-4880 | ELEMENT - filter | 1 | ||
| 33-2464 | GASKET - filter | 1 | ||
| 7 | 10-299 | KIT - bowl & filter | 1 | |
| 8 | 11-4957 | BAIL - filter | 1 | |
| 11-4958 | NUT - bail | 1 | ||
| 9 | 55-4512 | NIPPLE | 1 | |
| 10 | 55-4496 | ELBOW - filter | 1 | |
| 55-214 | SCREW - elbow | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-315 | NUT | 2 | ||
| 11 | 55-459 | FITTING | 1 | |
| 12 | 11-4780 | HOSE - filter to tank | 1 | |
| 13 | 55-2564 | FITTING - swivel | 3 | |
| 14 | 12-461 | TANK - fuel | 1 | |
| 15 | 11-5946 | CAP - fuel tank (non-vented) | 1 | |
|
10-11-5946 | Пробка бензобака, Non Vented - Brass | 5 120 ₽ |
|
| 33-381 | GASKET - cap | 1 | ||
| 16 | 12-355 | CLAMP - fuel tank | 2 | |
| 55-451 | LOCKWASHER | 1 | ||
| 55-1177 | NUT - clamp | 1 | ||
| 17 | 55-2313 | CHECK - ball | 1 | |
| 18 | 11-4717 | HOSE - fuel return | 1 | |
| 11-4718 | FITTING - swivel | 1 | ||
| 11-4367 | HOSE - fuel return (1/4 od x 35 ft lg) | A/R | ||
| 10-243 | KIT - sleeve & eyelet (1/4) | A/R | ||
| 11-4841 | NUT - fuel hose (1/4) | A/R | ||
| 11-4860 | ELBOW - tank (1/4) | A/R |
