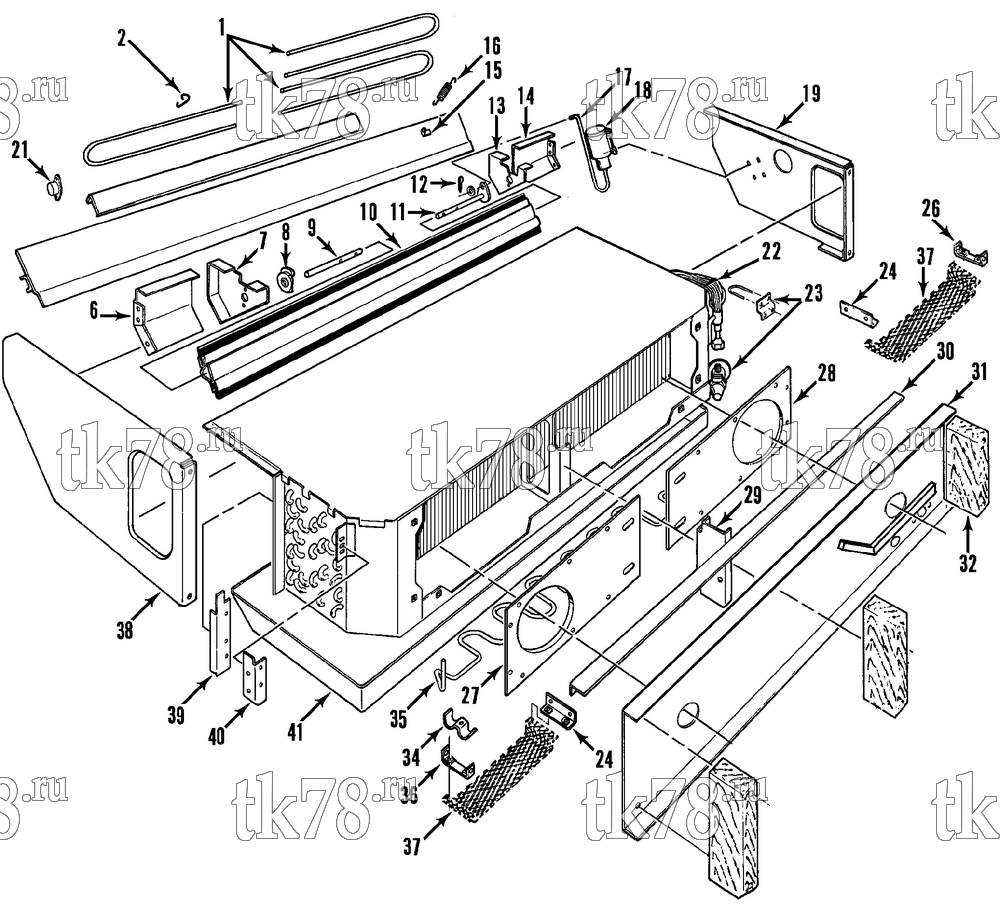

Установкa Thermo King RD-I SSIV схема EVAPORATOR COMPARTMENT – 74B8
Обновление от: 2/16/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-394 | HEATER (750W) | 3 | |
| 55-1587 | SCREW - heater | 6 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-3275 | NUT - flexlock | 6 | ||
| 2 | 99-5998 | BRACKET - heater (right) | 1 | |
| 3 | 99-5997 | BRACKET - heater (left) | 1 | |
| 4 | 98-2143 | PANEL - funnel (rear) | 1 | |
| 5 | 99-6003 | ANGLE - shutter adjusting | 1 | |
| 6 | 99-6038 | PANEL - air stop (right) | 1 | |
| 7 | 99-5995 | SUPPORT - bearing | 1 | |
| 8 | 91-3905 | BEARING - damper | 2 | |
|
10-91-3905 | Демпфер | 2 080 ₽ |
|
| 9 | 99-5990 | SHAFT - damper | 1 | |
| 10 | 98-2167 | SHUTTER - damper | 1 | |
| 11 | 99-5991 | SHAFT & ARM - damper | 1 | |
| 12 | 55-605 | PIN - cotter | 1 | |
| 55-431 | FLATWASHER | 1 | ||
| 13 | 99-5996 | SUPPORT - bearing (left) | 1 | |
| 14 | 99-6039 | PANEL - air stop (left) | 1 | |
| 15 | 99-1267 | BRACKET - damper spring | 2 | |
| 16 | 99-5804 | SPRING - shutter | 2 | |
| 17 | 99-6067 | ROD - damper blade | 1 | |
| 18 | 44-2823 | SOLENOID | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2756 | DIODE - solenoid | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 99-2244 | STRAP - ground | 1 | ||
| 19 | 98-2140 | PANEL - evaporator (left) | 1 | |
| 20 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 21 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 99-6002 | BRACKET - switch | 1 | ||
| 22 | 67-791 | COIL - evaporator | 1 | |
| 23 | 66-4098 | VALVE - expansion (R12) | 1 | |
| 66-4099 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 66-3469 | VALVE - expansion (R502) | 1 | ||
| 61-822 | ELEMENT - power | 1 | ||
| 61-811 | SCREEN - inlet | 1 | ||
| 99-8613 | BRACKET - expansion valve | 1 | ||
| 99-661 | U-BOLT - expansion valve | 1 | ||
| 24 | 99-6004 | BRACKET - screen (center) | 2 | |
| 25 | 99-6007 | SCREEN - evaporator (left) | 1 | |
| 26 | 99-6006 | BRACKET - screen (left) | 1 | |
| 27 | 98-2146 | ORIFICE - evaporator (right) | 1 | |
| 28 | 98-2145 | ORIFICE - evaporator (left) | 1 | |
| 55-405 | WASHER - dome | 18 | ||
| 29 | 98-2144 | CHANNEL - evaporator support | 1 | |
| 30 | 98-2142 | ANGLE | 1 | |
| 31 | 98-2147 | BULKHEAD | 1 | |
| 32 | 99-6009 | SUPPORT - wood | 3 | |
| 33 | 44-5222 | ACTUATOR - defrost | 1 | |
| 34 | 99-5992 | BRACKET - defrost tube | 1 | |
| 35 | 66-4100 | TUBE - defrost | 1 | |
| 36 | 99-6005 | BRACKET (right) | 1 | |
| 37 | 99-6007 | SCREEN - evaporator (right) | 1 | |
| 38 | 98-2139 | PANEL - evaporator (right) | 1 | |
| 39 | 99-5994 | BRACKET - coil | 1 | |
| 40 | 99-5993 | BRACKET - coil | 1 | |
| 41 | 98-2642 | PAN - drip | 1 | |
| 55-1189 | SCREW (10-32 x 1/2, truss hd) | A/R | ||
| 55-2778 | SCREW (10-24 x 1/8, washer hd) | A/R | ||
| 55-1049 | SCREW (10-32 x 3/4, hh) | A/R | ||
| 55-431 | FLATWASHER | A/R | ||
| 55-1511 | LOCKWASHER | A/R | ||
| 55-5292 | NUT | A/R | ||
| 55-3493 | NUT | A/R | ||
| 55-214 | SCREW (hh, 1/4-28 x 3/4) | A/R | ||
| 55-411 | FLATWASHER | A/R | ||
| 55-366 | LOCKWASHER | A/R | ||
| 55-315 | NUT | A/R | ||
| 55-2816 | NUT | A/R | ||
| 55-3319 | WASHER - sealing (1/4) | 4 | ||
| 55-2243 | WASHER - sealing (#10) | 3 | ||
| 55-145 | SCREW (1/4-20 x 3/4) | A/R | ||
| 55-4118 | NUT (1/4-20) | A/R |
