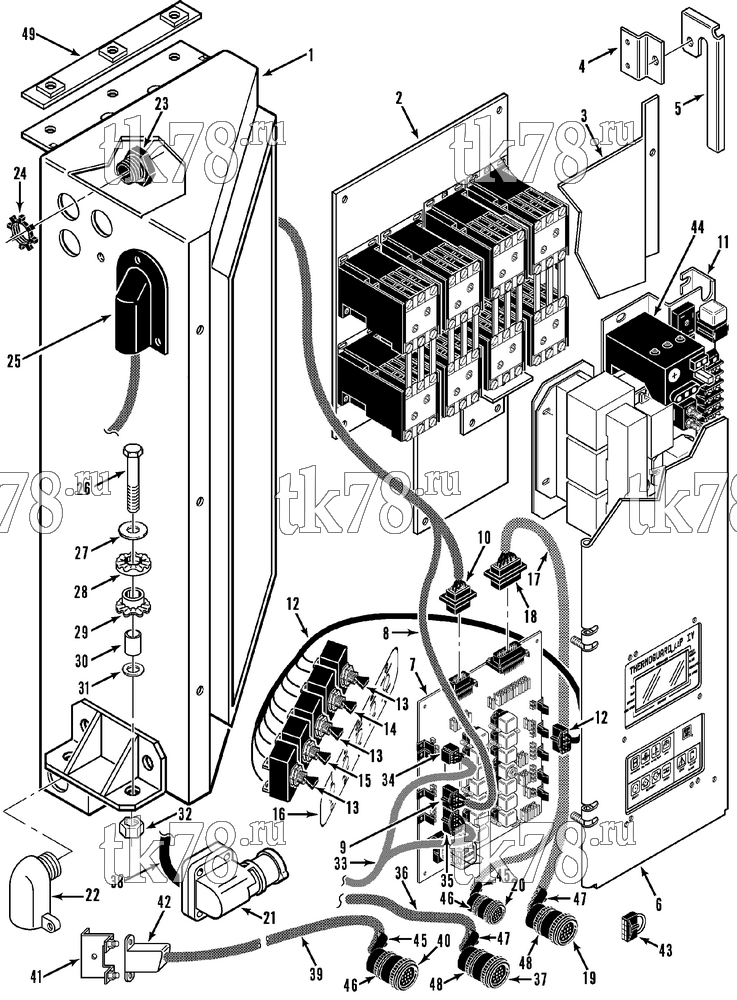

Установкa Thermo King RC-II & RC-III схема CONTROL BOX ASSEMBLY (4/94 to 3/95) – 120C10
Обновление от: 4/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4276 | BOX - control | 1 | |
| 2 | NSS | PANEL - high voltage (see 120C4) | 1 | |
| 91-4363 | BOLTPLATE | 1 | ||
| 55-4953 | NUT - panel | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 3 | 91-6900 | SHIELD - high voltage tray | 1 | |
| 55-3027 | SCREW - shield | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 4 | 91-4502 | BRACKET - latch | 2 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-3034 | WASHER - sealing | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 99-8149 | LATCH - door | 2 | |
| 55-2957 | SCREW - latch | 2 | ||
| 99-8994 | SPACER | 2 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 6 | NSS | COVER - box (see 108F3) | 1 | |
| 55-4954 | NUT - cover | 3 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-3034 | WASHER - sealing | 3 | ||
| 7 | 45-1676 | BOARD - relay (see 110E9) | 1 | |
| 55-2868 | SCREW - board | 9 | ||
| 55-2998 | LOCKWASHER | 9 | ||
| 8 | 44-9794 | HARNESS - main | 1 | |
| 9 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 44-9542 | TERMINAL | 6 | ||
| 10 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9855 | TERMINAL | 12 | ||
| 11 | NSS | PLATE - adapter (see 120C3) | 1 | |
| 55-4560 | NUT - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 12 | 44-9774 | HARNESS - switch | 1 | |
| 44-5719 | CONNECTOR (8-pin) | 1 | ||
| 44-5631 | TERMINAL | 8 | ||
| 13 | 44-7792 | SWITCH - on/off (diesel/electric, C/S) | 3 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 14 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 15 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 33-1661 | GROMMET - harness | 1 | ||
| 16 | 91-6901 | NAMEPLATE - switches | 1 | |
| 17 | 44-9767 | HARNESS - microprocessor | 1 | |
| 18 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9855 | TERMINAL | 36 | ||
| 19 | 41-745 | CONNECTOR (37-pin) | 1 | |
| 20 | 41-743 | CONNECTOR (14-pin) | 1 | |
| 44-8540 | TERMINAL | 36 | ||
| 21 | 44-9766 | RECEPTACLE | 1 | |
| 44-8195 | PLUG - receptacle | 1 | ||
| 22 | 55-9129 | CONNECTOR - cable | 2 | |
| 23 | 55-2788 | FITTING - barb | 3 | |
| 24 | 55-5018 | NUT | 5 | |
| 25 | 91-4503 | COVER - wire | 1 | |
| 26 | 55-2979 | SCREW - box | 6 | |
| 27 | 55-2937 | WASHER - special | 6 | |
| 28 | 99-2543 | MOUNT - vibration (ring) | 6 | |
| 29 | 99-2544 | MOUNT - vibration | 6 | |
| 30 | 55-3494 | BUSHING - mount | 6 | |
| 31 | 55-1800 | LOCKWASHER | 6 | |
| 32 | 55-4953 | NUT | 6 | |
| 33 | 44-9776 | HARNESS - contactor | 1 | |
| 34 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 35 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 36 | 44-9795 | HARNESS - sensor | 1 | |
| 37 | 41-744 | CONNECTOR (19-pin) | 1 | |
| 44-9928 | TERMINAL | 15 | ||
| 38 | 44-9770 | HARNESS - power | 1 | |
| 39 | 41-450 | DATALOGGER - remote | 1 | |
| 40 | 41-746 | CONNECTOR (9-pin) | 1 | |
| 41 | 44-9327 | CONNECTOR (15-pin, female) | 1 | |
| 55-3427 | SCREW - connector | 2 | ||
| 55-2359 | FLATWASHER | 2 | ||
| 55-2361 | NUT | 2 | ||
| 42 | 91-5618 | BRACKET - communication | 1 | |
| 43 | 41-600 | JUMPER | 1 | |
| 44 | 40-934 | RELAY - overload | 1 | |
| 55-3684 | SCREW - relay | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 45 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 46 | 55-7617 | CLAMP - strain relief | 2 | |
| 47 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 48 | 55-7618 | CLAMP - strain relief | 2 | |
| 49 | 91-6532 | NUTSTRIP - control box | 1 |
