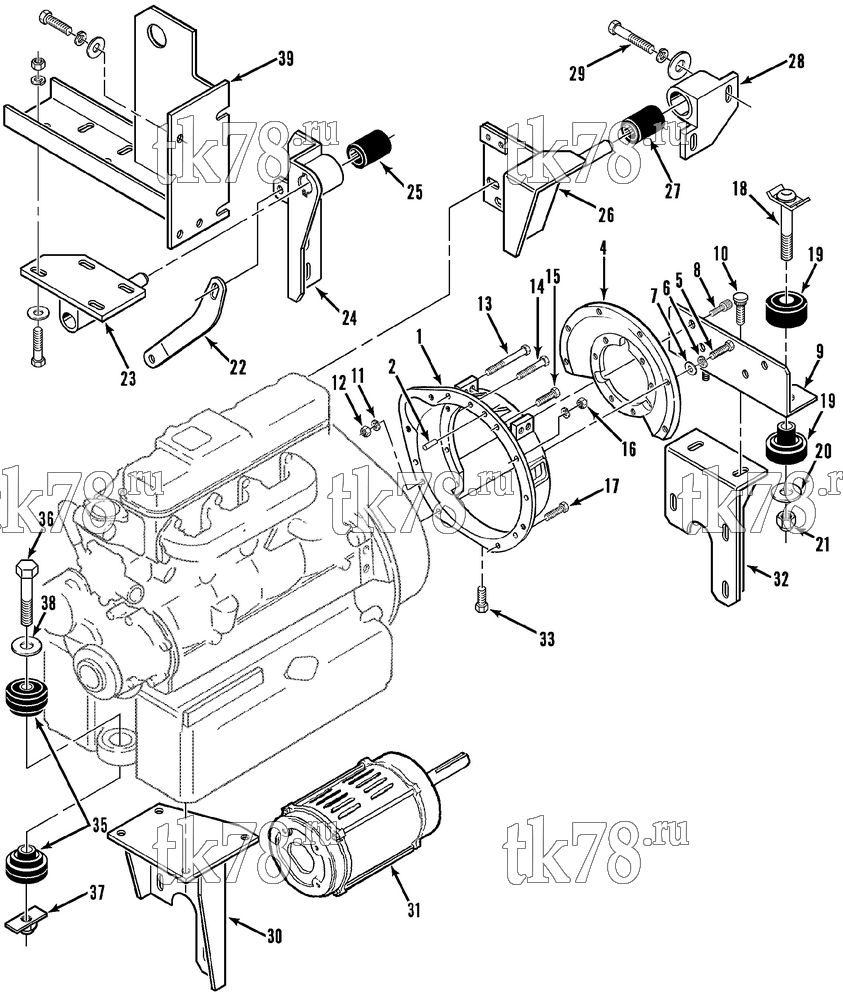

Установкa Thermo King RC-II & RC-III схема ENGINE & COMPRESSOR MOUNTING – 108D11
Обновление от: 6/2/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-585 | HOUSING - flywheel | 1 | |
| 2 | 55-5576 | PIN - dowel (2.5 lg) | 6 | |
| 3 | Not Used | |||
| 4 | 22-720 | FLANGE - compressor (see 109F11) | 1 | |
| 5 | 55-3674 | SCREW - compressor | 6 | |
| 6 | 55-2363 | LOCKWASHER | 6 | |
| 7 | 55-2641 | FLATWASHER | 6 | |
| 8 | 55-7518 | SCREW - bracket (1-1/2 in lg) | 2 | |
| 55-7519 | SCREW - bracket (3 in lg) | 2 | ||
| 9 | 91-5810 | BRACKET - engine (before 12/94) | 1 | |
| 91-7049 | BRACKET - engine (after 11/94) | 1 | ||
| 10 | 55-7666 | STUD - mount | 2 | |
| 11 | 55-1418 | WASHER - special | 4 | |
| 12 | 55-8318 | NUT | 4 | |
| 203-400 | SEALER | A/R | ||
| 13 | 55-5477 | SCREW - cylinder block (135 mm) | 1 | |
| 55-5481 | LOCKWASHER | 1 | ||
| 14 | 55-5476 | SCREW - cylinder block (75 mm) | 2 | |
| 15 | 55-5478 | SCREW - cylinder block (75 mm) | 1 | |
| 16 | 55-2430 | NUT - housing (reamer) | 1 | |
| 55-5481 | LOCKWASHER | 1 | ||
| 17 | 55-6385 | SCREW - housing to oil pan | 2 | |
| 18 | 91-5285 | BOLT - carriage (power tray) | 1 | |
| 55-1813 | SCREW - power tray | 1 | ||
| 19 | 91-7709 | MOUNT - vibration (set of 2) | 2 | |
|
10-91-7709 | Опора двигателя Isuzu 2.2 DI (D201) | 3 470 ₽ |
|
| PP-91-7709 | Опора двигателя Isuzu 2.2 DI (D201) | 900 ₽ |
|
|
| 20 | 55-5749 | WASHER (2-1/8 od) | 3 | |
| 21 | 55-4963 | NUT | 2 | |
| 22 | 91-2962 | STRAP - snubber | 1 | |
| 55-2969 | SCREW - strap (top) | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-4727 | WASHER - special | 1 | ||
| 55-5424 | SCREW - strap (bottom) | 1 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7071 | FLATWASHER | 2 | ||
| 55-2292 | WASHER - special | 1 | ||
| 23 | 12-588 | BRACKET - frame | 1 | |
| 55-1469 | SCREW - bracket | 4 | ||
| 55-4931 | FLATWASHER | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 24 | 11-7782 | BRACKET - engine mount (front) | 1 | |
| 55-6215 | SCREW - bracket | 2 | ||
| 91-4262 | SPACER | 1 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 25 | 11-7428 | SNUBBER | 2 | |
|
11-7428 OEM | Опора двигателя, SMX/SMX-II | 2 620 ₽ |
|
|
10-11-7428 | Опора двигателя, SMX/SMX-II | 1 950 ₽ |
|
| 26 | 91-4261 | BRACKET - snubber | 1 | |
| 55-5594 | SCREW - bracket | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-5006 | LOCKWASHER | 2 | ||
| 27 | Not Used | |||
| 28 | 11-7770 | SNUBBER - frame | 1 | |
| 29 | 55-129 | SCREW - snubber | 2 | |
| 55-4931 | WASHER - special | 2 | ||
| 55-375 | LOCKWASHER (3/8) | 2 | ||
| 30 | 98-3964 | BRACKET - motor (roadside) | 1 | |
| 55-5005 | SCREW - bracket to engine | 4 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 31 | 104-636 | MOTOR (see 109D3) | 1 | |
| 55-1669 | SCREW - mount to motor | 6 | ||
| 55-2159 | LOCKWASHER | 6 | ||
| 55-5234 | FLATWASHER | 6 | ||
| 32 | 98-3963 | MOUNT - motor (curbside) | 1 | |
| 55-314 | NUT - mount to engine bracket | 2 | ||
| 55-365 | LOCKWASHER | 2 | ||
| 55-2038 | FLATWASHER | 4 | ||
| 33 | 55-5005 | SCREW - bracket to housing | 2 | |
| 55-5006 | FLATWASHER | 2 | ||
| 34 | Not Used | |||
| 35 | 91-4159 | MOUNT - vibration | 2 | |
|
10-91-4159 | Опора двигателя, SMX/SMX-II/SB-III/SL/SLe/SLX/SLXe | 4 550 ₽ |
|
|
PP-91-4159 | Опора двигателя, SMX/SMX-II/SB-III/SL/SLe/SLX/SLXe | 500 ₽ |
|
| 36 | 55-2482 | SCREW - engine | 1 | |
| 37 | 91-4258 | NUTSTRIP | 1 | |
| 38 | 55-5749 | WASHER | 1 | |
| 39 | 91-4266 | BRACKET - snubber | 1 | |
| 55-1469 | SCREW - bracket | 4 | ||
| 55-375 | LOCKWASHER | 4 | ||
| 55-4931 | FLATWASHER | 8 | ||
| 55-4955 | NUT | 4 |
