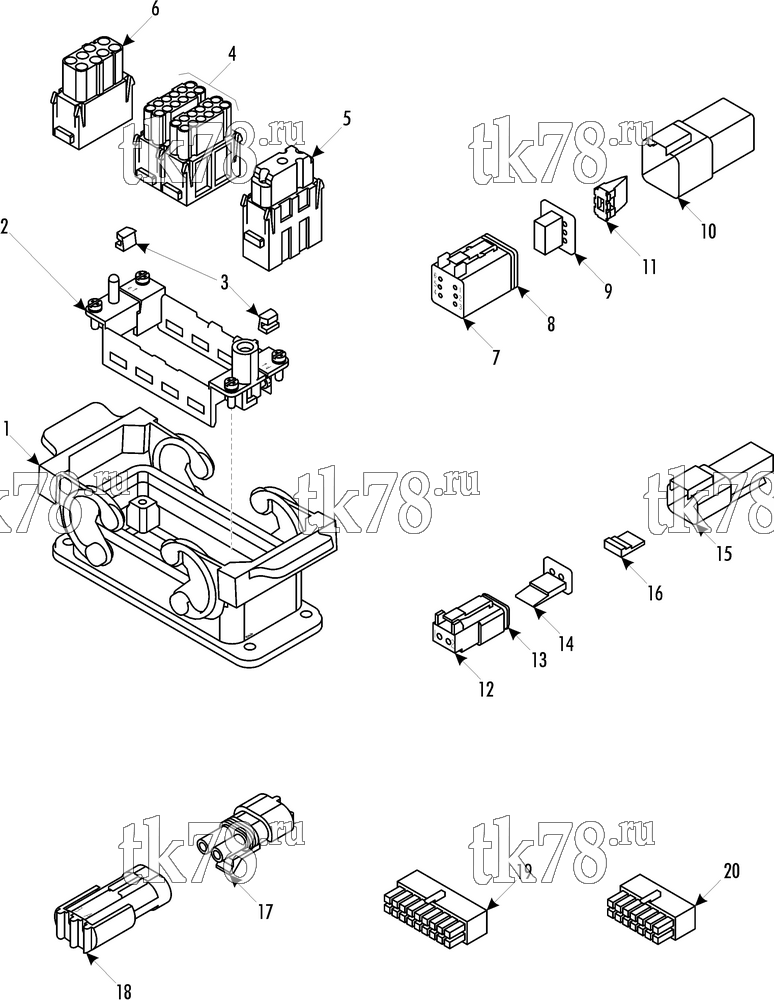

Установкa Thermo King RAC RNV схема CONNECTORS – 243C7
Обновление от: 2/9/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5582 | HOOD-POWER CONNECTOR | 1 | |
| 2 | 41-5504 | FRAME - fixing | 1 | |
| 3 | 41-7517 | INSERT - fixing | 2 | |
| 4 | 41-7144 | COVER - connector, female | 2 | |
| 5 | 41-5524 | COVER - connector, female | 1 | |
| 6 | 41-5523 | COVER - connector, female | 1 | |
| 41-1807 | SOCKET 10amp 18-24GA | 6 | ||
| 7 | 44-8920 | PLUG (6-pin) | 1 | |
| 8 | 33-2395 | SEAL | 1 | |
| 9 | 44-8921 | WEDGE | 1 | |
| 10 | 44-8914 | RECEPTACLE (6-pin) | 1 | |
| 11 | 44-8917 | WEDGE | 1 | |
| 12 | 44-9585 | PLUG (2-pin) | 1 | |
| 13 | 33-2392 | SEAL | 1 | |
| 14 | 44-9586 | WEDGE | 1 | |
| 15 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 16 | 44-9590 | WEDGE | 1 | |
| 17 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 18 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 19 | 41-650 | CONNECTOR - 18-pin, male | 1 | |
| 20 | 41-661 | CONNECTOR - 14-pin, male | 1 |
