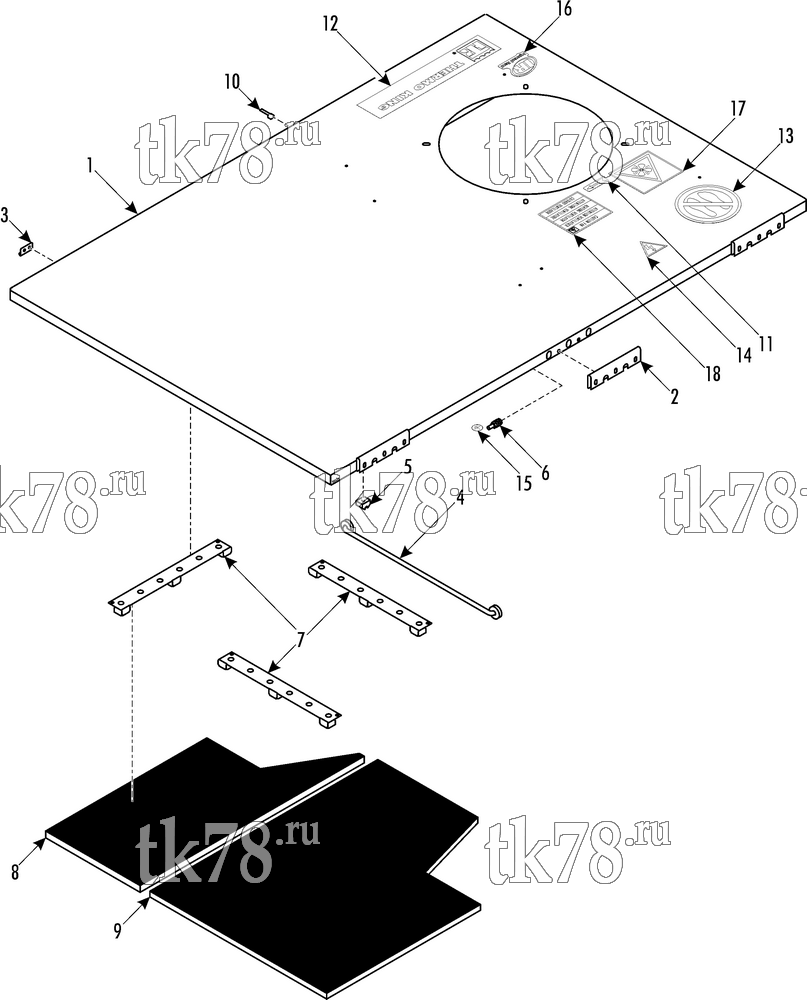

Установкa Thermo King RAC RNV схема COVER – 243B8
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8473 | COVER | 1 | |
| 2 | 91-7098 | HINGE - cover | 3 | |
| 55-7169 | SCREW - hinge to cover | 6 | ||
| 55-7826 | SCREW - hinge to frame | 9 | ||
| 55-7033 | FLATWASHER | 30 | ||
| 55-7034 | NUT - hexstop | 15 | ||
| 3 | 92-556 | KEEPER | 2 | |
| 55-2715 | RIVET - keeper | 4 | ||
| 4 | 92-8228 | SUPPORT - cover | 1 | |
| 5 | 91-7386 | CLAMP - cover support | 1 | |
| 55-2715 | RIVET - clamp | 1 | ||
| 6 | 55-7035 | SCREW - ground | 1 | |
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7354 | NUT | 1 | ||
| 7 | 92-3375 | BRACKET - insulation | 3 | |
| 8 | 92-4835 | INSULATION | 1 | |
| 9 | 92-4836 | INSULATION | 1 | |
| 10 | 56-2330 | BANDWRAP | 2 | |
| 11 | 99-4931 | NAMEPLATE - arrow | 1 | |
| 12 | 91-7551 | NAMEPLATE - TK Logo | 1 | |
| 13 | 92-3767 | NAMEPLATE - No Step | 1 | |
| 14 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 15 | 92-783 | LABEL - ground | 1 | |
| 16 | 92-1307 | NAMEPLATE - IR (black letters) | 1 | |
| 17 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 99-8507 | NAMEPLATE - Caution, Fan | 1 |
