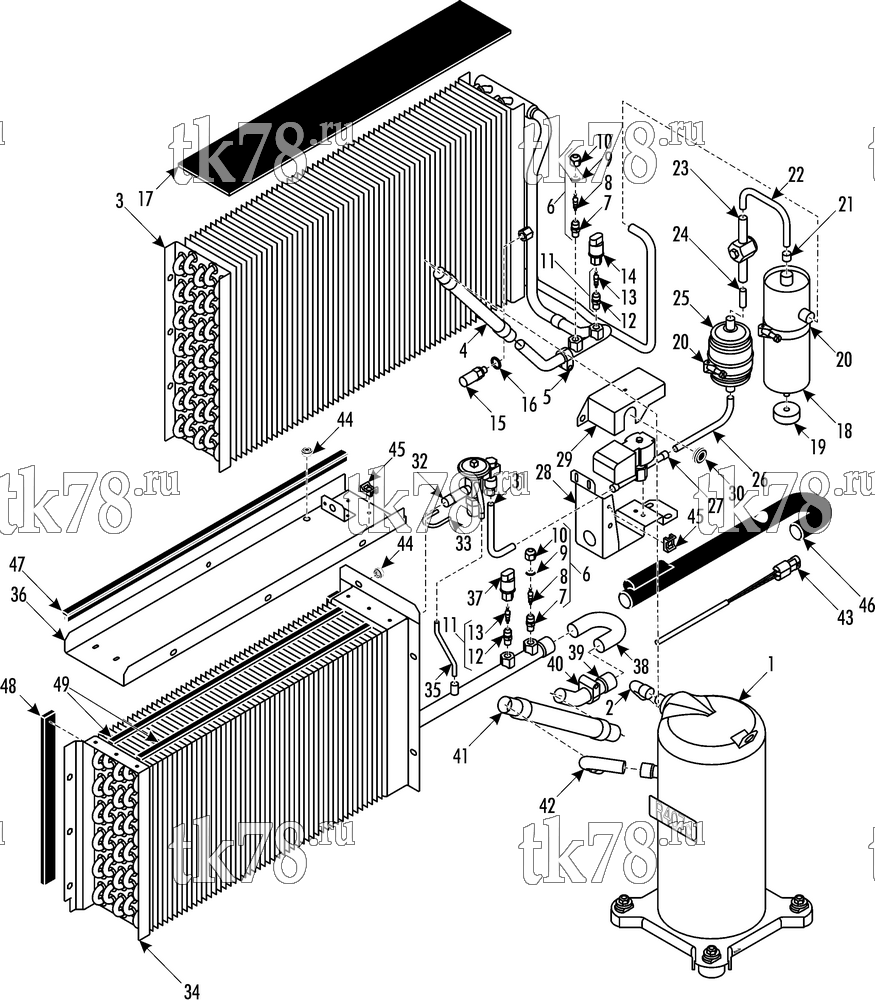

Установкa Thermo King RAC RNV схема REFRIGERATION COMPONENTS – 243B6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see 206F5) | 1 | |
| 2 | 61-3184 | TUBE - outlet | 1 | |
| 3 | 67-2123 | CONDENSER | 1 | |
| 4 | 61-378 | ELIMINATOR - vibration | 1 | |
| 55-6994 | SCREW - condenser | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 55-7075 | FLATWASHER | 6 | ||
| 51-290 | NUT - captive | 6 | ||
| 5 | 91-758 | CLAMP - tube | 1 | |
| 55-8316 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7354 | NUT | 1 | ||
| 6 | 61-5064 | VALVE - assy | 2 | |
| 7 | 55-7213 | BODY - valve | 1 | |
| 8 | 11-7777 | VALVE | 1 | |
| 9 | 33-768 | GASKET | 1 | |
| 10 | 56-1983 | CAP | 1 | |
| 11 | 11-2886 | VALVE - assy | 2 | |
| 12 | 55-7213 | BODY - valve | 1 | |
| 13 | 11-7777 | VALVE | 1 | |
| 14 | 41-6318 | SWITCH - hpco | 1 | |
| 15 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 080 ₽ |
|
| 16 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 17 | 92-4838 | INSULATION | 1 | |
| 18 | 61-2367 | TANK - receiver | 1 | |
| 55-2114 | NUT - tank | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 19 | 91-9321 | SPACER | 1 | |
| 20 | 55-7800 | CLAMP - tank receiver & filter drier | 2 | |
| 21 | 55-3247 | BUSHING | 1 | |
| 22 | 61-3185 | TUBE | 1 | |
| 23 | 66-1296 | INDICATOR - liquid | 1 | |
| 24 | 61-2370 | TUBE | 1 | |
| 25 | 61-381 | FILTER - drier | 1 | |
| 26 | 61-3186 | TUBE - liquid | 1 | |
| 27 | 61-382 | VALVE - solenoid | 1 | |
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 28 | 92-4877 | BRACKET - valves | 1 | |
| 29 | 92-4837 | COVER - solenoid valve | 1 | |
| 55-6994 | SCREW - bracket & cover | 5 | ||
| 55-7170 | LOCKWASHER | 5 | ||
| 55-7075 | FLATWASHER | 5 | ||
| 51-290 | NUT - captive | 5 | ||
| 30 | 33-367 | GROMMET (0.625 id) | 1 | |
| 31 | 61-3234 | TUBE | 1 | |
| 32 | 61-390 | VALVE - expansion | 1 | |
| 33 | 55-5201 | U-BOLT | 1 | |
| 55-4560 | NUT | 2 | ||
| 56-2001 | FLATWASHER | 2 | ||
| 34 | 67-2133 | EVAPORATOR - assy | 1 | |
| 55-6994 | SCREW - evaporator | 7 | ||
| 55-7170 | LOCKWASHER | 7 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 55-9814 | NUT - captive, closed | 2 | ||
| 51-290 | NUT - captive | 5 | ||
| 35 | 61-3235 | TUBE - equalizer | 1 | |
| 36 | 98-7158 | COVER - evaporator | 1 | |
| 55-2715 | RIVET - cover | 6 | ||
| 51-190 | NUT - captive | 1 | ||
| 37 | 41-5899 | SWITCH - lpco | 1 | |
| 38 | 61-3236 | ELBOW | 1 | |
| 39 | 61-3237 | TUBE | 1 | |
| 40 | 55-7013 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7354 | NUT | 1 | ||
| 41 | 61-391 | ELIMINATOR - vibration | 1 | |
| 42 | 61-3187 | TUBE - inlet | 1 | |
| 43 | 41-4157 | SENSOR - temperature | 1 | |
| 44 | 83-258 | GROMMET (0.250 id) | 2 | |
| 45 | 99-3281 | MOUNT - bandwrap | 2 | |
| 55-5130 | RIVET - mount | 2 | ||
| 56-2330 | BANDWRAP | 2 | ||
| 46 | 60-152 | INSULATION - tape | A/R | |
| 47 | 92-146 | RUBBER - profile | A/R | |
| 48 | 99-8562 | STRIP - neoprene | A/R | |
| 49 | 99-7246 | STRIP - neoprene | A/R | |
| 55-2332 | BANDWRAP | 5 |
